Heer Fittings is a well-established Delhi-based Indian manufacturer and supplier of Carbon Steel A105 Forged Fittings, which provide long-lasting and high-strength solutions to critical pressure piping systems. Its forged fittings, which come in configurations like elbows, tees, couplings, unions, plugs, bushings, and caps, are manufactured in compliance with ASTM A105 and ASME B16.11 standards. Carbon Steel A105 is a general-purpose forged carbon steel material designed for use in ambient and high-temperature services in pressure systems. Heer Fittings supplies these products with accurate machining and strict quality checks to satisfy oil & gas, petrochemical, power, and industrial applications.
| Forged Fittings Specifications | ASTM A105/ ASME SA105 |
|---|---|
| Carbon Steel A105 Forged Fittings size | 1/8” NB to 4” NB (Socket weld & Screwed-Threaded) |
| Carbon Steel A105 Forged Fittings Dimensions | ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799 |
| Carbon Steel A105 Forged Fittings Types | Socketweld Fittings, Screwed-Threaded Fittings |
| ASTM A105 Carbon Steel A105 Forged Fittings Pressure Rating | Threaded End-2000lb/ 3000lb/ 6000lbs Socket-weld End-3000/ 6000/ 9000lbs |
| Carbon Steel A105 Forged Fittings Thread | NPT, BSPT, BSPP |
| Carbon Steel A105 Forged Fittings Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Carbon A105 Forged Fittings Origin & Mills | Japanese, Indian, USA, Korean, European, Ukraine, Russian |
| Specialized manufacturer of | 90º Elbows, 45º Elbows, Tees, Cross, Couplings, Reducers, Inserts, Caps, Nipples, and Unions, Forged Pipe Fittings, Socket Weld & Threaded, Equal Tees & Reducing Tees, 90° & 45° Elbows, Plugs |
| Grade | C | Si | Mn | P | S | Mo | Ni | Cr | Cu | V |
| A105 | 0.35 | 0.10–0.35 | 0.60–1.05 | 0.035 | 0.040 | 0.12 | 0.40 | 0.30 | 0.40 | 0.08 |
| Grade | Yield Strength, Min (MPa) | Tensile Strength, Min (MPa) | Elongation, min, % |
| A105 | 250 | 485 | 30 |
Carbon Steel A105 is mainly composed of iron containing up to 0.35% carbon, 0.6–1.05% manganese, and trace amounts of silicon, phosphorus, and sulfur. It provides a minimum tensile strength of 485 MPa, yield strength of 250 MPa, and elongation of approximately 22%, based on size and heat treatment. Such fittings show superior mechanical performance and are ideal for applications up to a working temperature of approximately 454°C (850°F). The material’s favorable machinability and weldability make it equally well-suited for fabrication and field installation.
| ASTM A105 / A105M | Forged Fittings and valves and parts for high temperature service. Standard Specification for Wrought Austenitic Carbon Steel A105 Forged Fittings |
| BS21 | Threading. |
| BS3799 | Specification for Steel pipe fittings, screwed and Socket-welding for the petroleum industry |
| ANSI B16.11 | Forged steel fittings socket-welding and threaded. Socket Welding and Threaded Forged Fittings |
| ANSI/ASME B1.20.1 | Pipe threads, general purpose (inch). |
| ISO 4144 | Carbon Steel A105 fittings threaded to ISO 7-1. |
| MSS SP-95 | Swage(d) Nipples and Bull Plugs |
| Products | Size | |
|---|---|---|
| ASTM A105 Carbon Steel 90° Elbow | ASTM A105 Carbon Steel 45° Elbow | Sizes 1/8″– 4″ Pressure Ratings – 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS |
| ASTM A105 Carbon Steel Forged Tee | ASTM A105 Carbon Steel Union | |

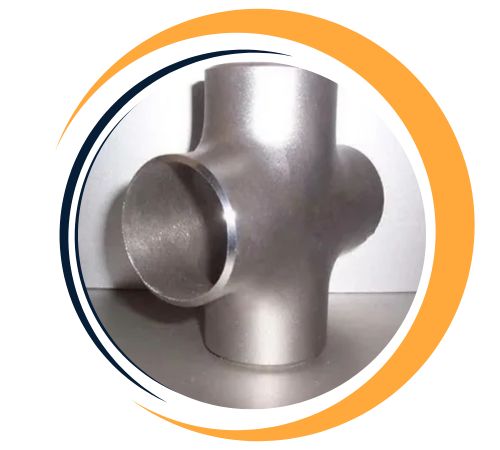

| ASTM A105 Carbon Steel Forged Cross | ASTM A105 Carbon Steel Insert | |
| ASTM A105 Carbon Steel Screwed Bushing | ASTM A105 Carbon Steel Threaded Pipe Nipple | |
| ASTM A105 Carbon Steel Forged Socket weld Cap | ASTM A105 Carbon Steel Screwed Coupling | |
| ASTM A105 Carbon Steel Forged Plug | ASTM A105 Carbon Steel Street Elbow | |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Carbon Steel A105 Forged Fittings offer several advantages, making them ideal for industrial applications. They provide excellent strength and durability, ensuring long service life under high-pressure and high-temperature conditions. Their corrosion resistance makes them suitable for harsh environments, including oil, gas, and chemical industries. With exceptional machinability and weldability, they are easy to install and maintain. These fittings deliver cost-effective performance due to their affordability and extended reliability. Additionally, they comply with international standards, ensuring safety, quality, and compatibility with various piping systems.
Carbon Steel A105 Forged Fittings from Heer Fittings offer exceptional corrosion resistance, especially in seawater and harsh environments. They are known for their high strength, durability, and resistance to pitting and crevice corrosion, ensuring long-lasting performance. We provide precise manufacturing, quality control, and reliable service for diverse industrial applications.
Yes, custom sizes for Carbon Steel A105 Forged Fittings are available at Heer Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@heerfittings.com.
Carbon Steel A105 Forged Fittings are widely applied in high-pressure piping systems, valves, flanges, and equipment connections of oil refineries, thermal power plants, chemical plants, shipbuilding, and fire protection systems. Fittings are suitable for pressure conveying oil, gas, steam, and water. Their durability, price competitiveness, and flexibility to fit threading or socket weld connections make them a favorite in critical infrastructure where reliability, safety, and cost-effectiveness are priorities.
