Heer Fittings, located in Delhi, India, has earned a solid reputation as a reliable manufacturer and supplier of top-notch Stainless Steel Buttweld Fittings. These fittings are celebrated for their precision, durability, and impressive resistance to corrosion. With a strong focus on quality and innovation, Heer Fittings provides a wide array of stainless steel elbows, tees, reducers, and caps that comply with global standards like ASTM, ASME, and DIN. Their products find extensive application in various industries, including oil & gas, petrochemicals, power plants, and water treatment. Thanks to cutting-edge technology and a team of skilled professionals, Heer Fittings guarantees consistent product performance, timely deliveries, and complete customer satisfaction in both domestic and international markets.Heer Fittings is a leading manufacturer and supplier of high-quality pipe, renowned for its accuracy and durability Specializing in stainless steel Buttweld Fittings, Braxton oil & gas, Offering a variety of solutions advanced for petrochemical, power generation and other industries. Committed to excellence, the company ensures that products meet international standards, offering exceptional corrosion resistance and strength. Heer Fittings is your trusted partner for reliable, high-performance piping solutions designed for industrial needs.
| Grade | SS 304 | Stainless Steel 304 | UNS S30400 |
| Standard | ASTM A403 / ASME SA403 |
| Dimensions | ANSI/ASME B16.9, B16.28, MSS-SP-43. |
| Thickness | 5s, 10s, 40s, 80s, 10, 20, 40, STD, 60, 80, XS, 100, 120, 140, 160, XXS available with NACE MR 01-75 |
| Size | 1/2″ NB – 48″ NB |

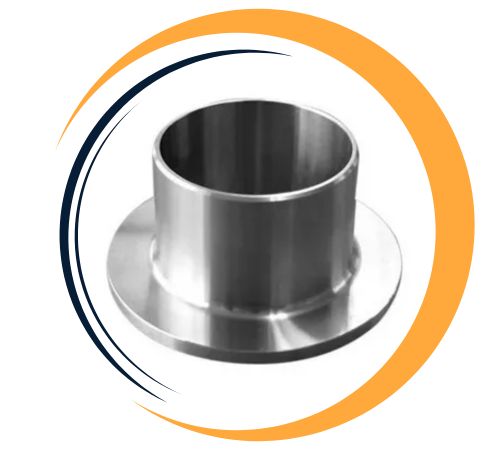

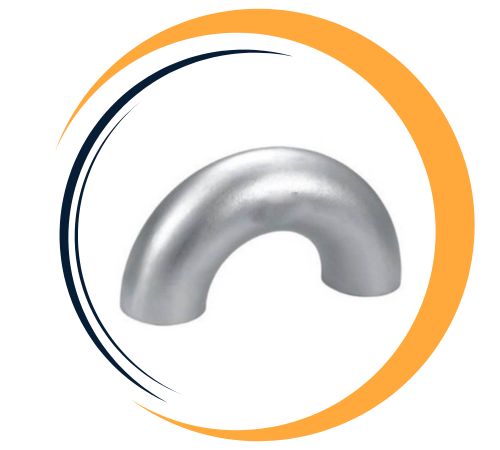

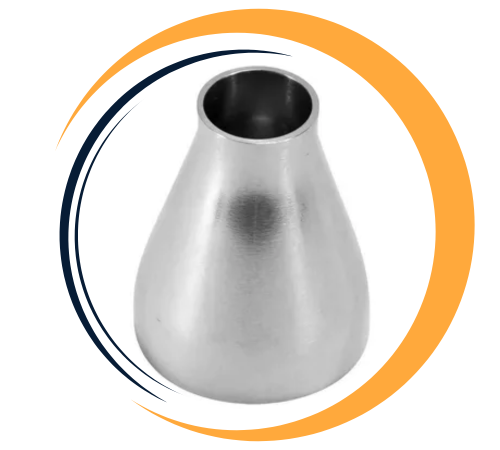

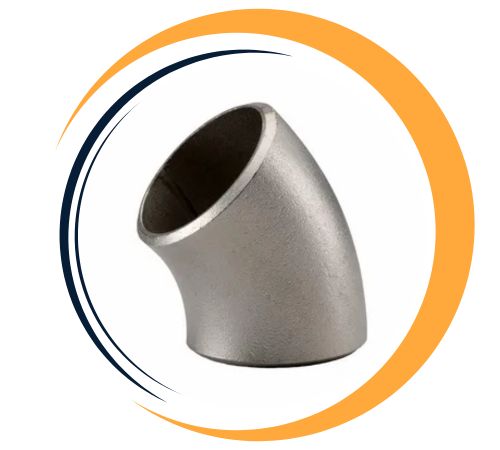

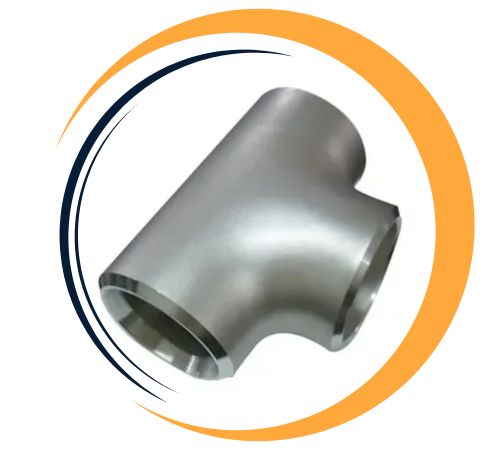

| Form | 90 Elbow, 45 Elbow, Long Radius Elbow, Short Radius Elbow, Concentric Reducer, Eccentric Reducer, Equal Tee, Unequal Tee, Lateral Tee, Cross, Bends 1.5d, 3d, 5d, 10d, U bend, 180 Deg Bend, Short Stub End, Long stub end, End Cap, Dish Cap |
| Schedule | SCH 5 To SCH XXS |
| Type | Seamless / Welded / Fabricated |
The Stainless Steel Buttweld Fittings from Heer Fittings are crafted using high-quality grades such as SS 304, 304L, 316, 316L, and 321. Their chemical makeup typically features chromium (18–20%), nickel (8–10.5%), and low carbon content, which significantly boosts corrosion resistance and weldability. In terms of mechanical properties, these fittings boast a tensile strength of around 515 MPa, a yield strength of approximately 205 MPa, and an elongation of 30–40%, depending on the specific grade. These characteristics ensure remarkable strength, pressure handling, and durability, making them perfect for high-stress applications in challenging industrial settings.
| Grade | C | Mn | Si | P | S | Cr | Ni | N |
|---|---|---|---|---|---|---|---|---|
| SS 304 | 0.08 max | 2 max | 0.75 max | 0.045 max | 0.030 max | 18 – 20 | 8 – 11 | – |
| SS 304L | 0.035 max | 2.0 max | 1.0 max | 0.045 max | 0.03 max | 18 – 20 | 8 – 13 | – |
| SS 304H | 0.10 max | 2.0 max | 0.75 max | 0.045 max | 0.03 max | 18 – 20 | 8 – 10.5 | – |
| Grade | Tensile Strength ksi (min) | Yield Strength 0.2% ksi (min) | Elongation % | Hardness (Brinell) MAX | Hardness (Rockwell B) MAX |
|---|---|---|---|---|---|
| 304 | 75 | 30 | 40 | 201 | 92 |
| 304L | 70 | 25 | 40 | 201 | 92 |
| 304H | 75 | 30 | 40 | 201 | 92 |
Heer Fittings is a leading supplier of Stainless Steel Buttweld Fittings in Delhi, India. We offer an extensive range of Nickel Alloy 201 Pipe Fittings, renowned for their excellent corrosion resistance and high strength, which makes them perfect for demanding industrial applications like chemical processing, marine environments, and high-temperature systems. With a commitment to quality and reliable delivery, we ensure our clients receive top-tier products tailored to meet the specific needs of various industries.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| STANDARD | UNS | WNR. | AFNOR | EN | JIS | BS | GOST |
|---|---|---|---|---|---|---|---|
| SS 304 | S30400 | 1.4301 | Z7CN18‐09 | X5CrNi18-10 | SUS 304 | 304S31 | 08Х18Н10 |
| SS 304L | S30403 | 1.4306/1.4307 | Z3CN18‐10 | X2CrNi18-9 / X2CrNi19-11 | SUS 304L | 304S11 | 03Х18Н11 |
| SS 304H | S30409 | 1.4301 | – | – | – | – | – |
Stainless Steel Buttweld Fittings from Heer Fittings offer exceptional corrosion resistance, especially in seawater and harsh environments. They are known for their high strength, durability, and resistance to pitting and crevice corrosion, ensuring long-lasting performance. We provide precise manufacturing, quality control, and reliable service for diverse industrial applications.
The stainless steel buttweld fitting provides excellent corrosion resistance, and durability in harsh environments. They provide a seamless, smooth surface, reducing turbulence and pressure loss in pipes. These materials are ideal for high-pressure and thermal systems and maintain structural integrity by eliminating frequent joint movements. They are easy to install, cost effective and require little maintenance. Because of their high tensile strength, they resist deformation and withstand mechanical stresses. Available in a variety of sizes and configurations, they are suitable for a variety of industries, including chemical, oil and gas. Their aesthetic finish also makes them suitable for architectural use.
| Nominal PipeSize | Outside Diameter | 90° Elbows | 45° Elbows | 180° Returns | ||||
|---|---|---|---|---|---|---|---|---|
| (inches) | – | Long Radius | Short Radius | Long Radius | Long Radius | |||
| (mm) | (inches) | Center to Face (inches) | Center to Face (inches) | Center to Face (inches) | Radius (inches) | Center to Center (inches) | Back to face (inches) | |
| 1/2 | 21.3 | 0.840 | 1 1/2 | – | 5/8 | 2 | 1 7/8 | |
| 3/4 | 26.7 | 1.050 | 1 1/8 | 7/16 | 2 1/4 | 1 11/16 | ||
| 1 | 33.4 | 1.315 | 1 1/2 | 1 | 7/8 | 3 | 2 3/16 | |
| 1 1/4 | 42.2 | 1.660 | 1 7/8 | 1 1/4 | 1 | 3 3/4 | 2 3/4 | |
| 1 1/2 | 48.3 | 1.900 | 2 1/4 | 1 1/2 | 1 1/8 | 3 | 4 1/2 | 3 1/4 |
| 2 | 60.3 | 2.375 | 3 | 2 | 1 3/8 | 4 | 6 | 4 3/16 |
| 2 1/2 | 73.0 | 2.875 | 3 3/4 | 2 1/2 | 1 3/4 | 5 | 7 1/2 | 5 3/16 |
| 3 | 88.9 | 3.500 | 4 1/2 | 3 | 2 | 6 | 9 | 6 1/4 |
| 3 1/2 | 101.6 | 4.000 | 5 1/4 | 3 1/2 | 2 1/4 | 7 | 10 1/2 | 7 1/4 |
| 4 | 114.3 | 4.500 | 6 | 4 | 2 1/2 | 8 | 12 | 8 1/4 |
| 5 | 141.3 | 5.563 | 7 1/2 | 5 | 3 1/8 | 10 | 15 | 10 5/16 |
| 6 | 168.3 | 6.625 | 9 | 6 | 3 3/4 | 12 | 18 | 12 5/16 |
| 8 | 219.1 | 8.625 | 12 | 8 | 5 | 12 | 24 | 16 5/16 |
| 10 | 273.1 | 10.750 | 15 | 10 | 6 1/4 | 15 | 30 | 20 3/8 |
| 12 | 323.9 | 12.750 | 18 | 12 | 7 1/2 | 18 | 36 | 24 3/8 |
Yes, custom sizes for Stainless Steel Buttweld Fittings are available at Heer Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@heerfittings.com.
Heer Fittings’ Stainless Steel Buttweld Fittings are widely utilized in sectors that require exceptional strength and corrosion resistance. This includes chemical processing, oil and gas, power generation, food and beverage, pharmaceuticals, and shipbuilding. They are particularly well-suited for connecting pipes in high-pressure and high-temperature systems, ensuring leak-proof and long-lasting connections. These fittings are a preferred choice in process piping systems for transporting fluids, gases, and chemicals. Their ability to resist scaling, rust, and extreme conditions makes them a dependable option for both onshore and offshore installations, promising a long service life and minimal maintenance in critical operational environments.
Get in touch with one of our Technical Sales Representatives to request a quote or get answers to any questions you may have.
