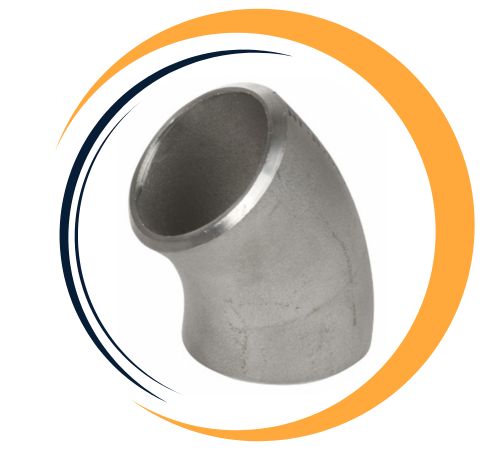

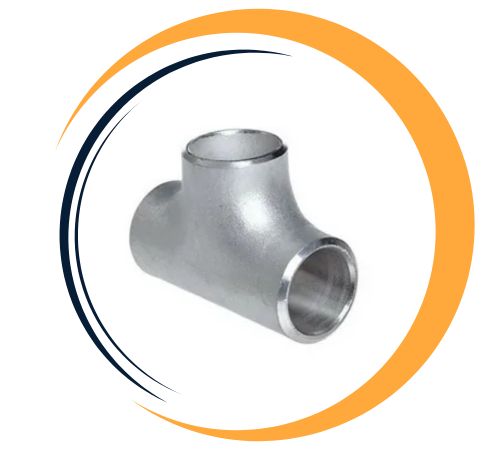

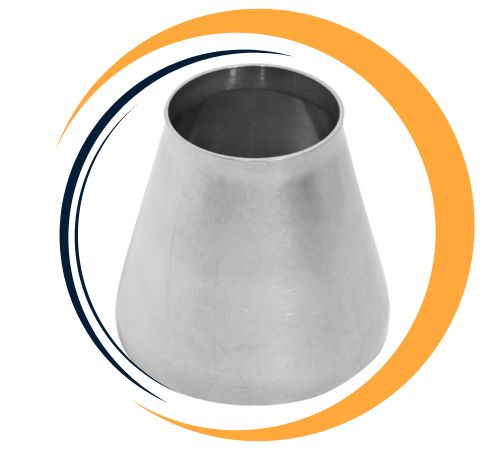

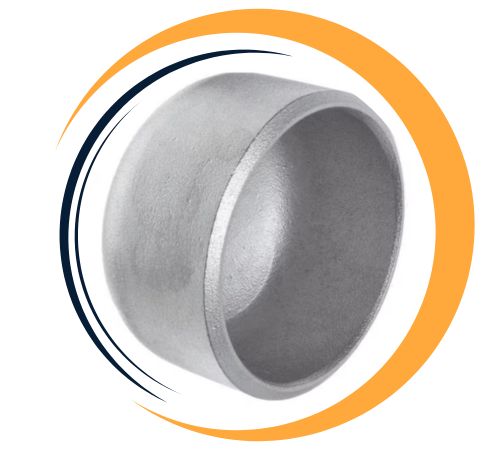

Heer Fittings, located in Delhi, India, has built a solid reputation as a reliable manufacturer and supplier of Stainless Steel 316H Buttweld Fittings. They specialize in delivering top-notch products designed for high-pressure and high-temperature industrial systems. Their extensive range of buttweld fittings includes elbows, tees, reducers, and caps, all crafted to comply with international standards like ASTM A403. Renowned for their precision, durability, and resistance to corrosion, Heer Fittings caters to a variety of industries, including petrochemicals, oil & gas, power generation, and chemical processing, providing trustworthy pipe connection solutions for challenging applications in both local and global markets.
| Specifications | ASTM A403 / ASME SA403 |
| Size | Seamless Butt Weld Fittings: 1/2″ – 24″, Welded Butt Weld Fittings: 1/2″ – 48″ |
| Standards | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43 |
| Thickness | 5s, 10s, 40s, 80s, 10, 20, 40, STD, 60, 80, XS, 100, 120, 140, 160, XXS available with NACE MR 01-75 |
| Type | Seamless / Welded / Fabricated |
The Stainless Steel 316H Buttweld Fittings are made up of a blend of chromium (16–18%), nickel (10–14%), molybdenum (2–3%), and a higher carbon content (0.04–0.10%) to boost their strength at high temperatures and resistance to creep. These fittings boast impressive mechanical properties, with a tensile strength of around 515 MPa and a yield strength of 205 MPa. The increased carbon content enhances their durability in high-temperature settings, while the molybdenum adds to their resistance against pitting and crevice corrosion, making them perfect for tough and high-stress environments.
| Grade | 316/316H/316L | |
|---|---|---|
| min | max | |
| C | – | 0.035 |
| Mn | – | 2.0 |
| Si | – | 0.75 |
| P | – | 0.045 |
| S | – | 0.030 |
| Cr | 16.0 | 18.0 |
| Mo | 2.0 | 3.0 |
| Ni | 10.0 | 14.0 |
| N | – | – |
Heer Fittings is a leading supplier of Stainless Steel 304L Buttweld Fittings in Delhi, India. We offer an extensive range of Stainless Steel 304L Buttweld Fittings, renowned for their excellent corrosion resistance and high strength, which makes them perfect for demanding industrial applications like chemical processing, marine environments, and high-temperature systems. With a commitment to quality and reliable delivery, we ensure our clients receive top-tier products tailored to meet the specific needs of various industries.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Stainless Steel 304L Buttweld Fittings from Heer Fittings offer exceptional corrosion resistance, especially in seawater and harsh environments. They are known for their high strength, durability, and resistance to pitting and crevice corrosion, ensuring long-lasting performance. We provide precise manufacturing, quality control, and reliable service for diverse industrial applications.
Stainless steel 316H Buttweld Fittings provide exceptional corrosion resistance, especially in high-temperature environments, making them ideal for chemical, petrochemical, and marine applications With high strength and durability these fittings maintain structural integrity in high-pressure and high-pressure conditions. The advanced carbon content of the 316H grade increases its strength at elevated temperatures, making it suitable for heat exchanger and boiler systems. These materials also exhibit excellent weldability and resist pitting, crevice corrosion, and chloride stress corrosion, providing durability and reliable performance in harsh environments.

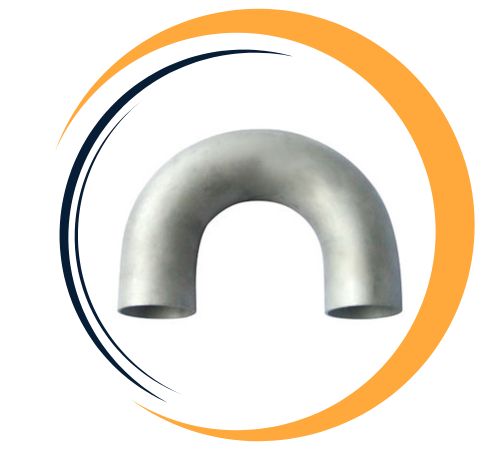

| Nominal Pipe Size (inches) | Outside Diameter | 45°Elbows | 90° Elbows | 180° Returns | ||||
|---|---|---|---|---|---|---|---|---|
| Long Radius | Long Radius | Short Radius | Long Radius | |||||
| (mm) | (inches) | Center to Face (inches) | Radius (inches) | Center to Face (inches) | Center to Face (inches) | Center to Center (inches) | Back to face (inches) | |
| 1 | 33.4 | 1.315 | 7/8 | 1 1/2 | 1 | 3 | 2 3/16 | |
| 1 1/4 | 42.2 | 1.660 | 1 | 1 7/8 | 1 1/4 | 3 3/4 | 2 3/4 | |
| 1 1/2 | 48.3 | 1.900 | 1 1/8 | 3 | 2 1/4 | 1 1/2 | 4 1/2 | 3 1/4 |
| 1/2 | 21.3 | 0.840 | 5/8 | 1 1/2 | – | 2 | 1 7/8 | |
| 3/4 | 26.7 | 1.050 | 7/16 | 1 1/8 | – | 2 1/4 | 1 11/16 | |
| 2 | 60.3 | 2.375 | 1 3/8 | 4 | 3 | 2 | 6 | 4 3/16 |
| 2 1/2 | 73.0 | 2.875 | 1 3/4 | 5 | 3 3/4 | 2 1/2 | 7 1/2 | 5 3/16 |
| 3 | 88.9 | 3.500 | 2 | 6 | 4 1/2 | 3 | 9 | 6 1/4 |
| 3 1/2 | 101.6 | 4.000 | 2 1/4 | 7 | 5 1/4 | 3 1/2 | 10 1/2 | 7 1/4 |
| 4 | 114.3 | 4.500 | 2 1/2 | 8 | 6 | 4 | 12 | 8 1/4 |
| 5 | 141.3 | 5.563 | 3 1/8 | 10 | 7 1/2 | 5 | 15 | 10 5/16 |
| 6 | 168.3 | 6.625 | 3 3/4 | 12 | 9 | 6 | 18 | 12 5/16 |
| 8 | 219.1 | 8.625 | 5 | 12 | 12 | 8 | 24 | 16 5/16 |
| 10 | 273.1 | 10.750 | 6 1/4 | 15 | 15 | 10 | 30 | 20 3/8 |
| 12 | 323.9 | 12.750 | 7 1/2 | 18 | 18 | 12 | 36 | 24 3/8 |
Yes, custom sizes for Stainless Steel 304L Buttweld Fittings are available at Heer Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@heerfittings.com.
You’ll find Stainless Steel 316H Buttweld Fittings commonly used in sectors where high-pressure, high-temperature, and corrosive conditions are the norm. Typical applications include heat exchangers, pressure vessels, boilers, power plants, and petrochemical processing units. Their superior mechanical strength and outstanding resistance to oxidation and corrosion at elevated temperatures make them ideal for steam and high-temperature service lines. SS 316H buttweld fittings guarantee long-lasting, secure, and maintenance-free piping systems in environments that demand both structural integrity and reliability.
Get in touch with one of our Technical Sales Representatives to request a quote or get answers to any questions you may have.
