Stainless Steel 347 / 347H Buttweld Fittings

Heer Fittings is a reliable manufacturer and supplier of Stainless Steel 347 / 347H Buttweld Fittings in Delhi, India. These are produced from stabilized austenitic stainless steel, especially intended for use in high-temperature and high-pressure applications. SS 347 is stabilized by niobium to be resistant to intergranular corrosion, particularly after welding, whereas 347H provides higher carbon content for extra creep strength at elevated temperatures. Our fittings are manufactured according to stringent quality control standards and are extensively employed in severe applications in the chemical, petroleum, aerospace, and power generation sectors in India and overseas markets.

Stainless Steel 347 Pipe Elbow In India, Stainless Steel 347H Pipe Fittings United kingdom, SS 347 Buttweld Elbow Delhi, Stainless Steel S34700 Seamless Fittings Exporter Delhi, Stainless Steel 1.4550 Butt Weld Pipe Fittings in India, Stainless Steel 347H Two Joint Pipe Fittings Delhi, 347 Stainless Steel Welded Fittings Manufacturers in India, Stainless Steel 347H Buttweld Fittings In India, ASTM A403 WP3 347 Stainless Steel Buttweld Fittings Supplier in Delhi, India.

Stainless Steel 347 / 347H Buttweld Fittings Specification

Specifications	ASME SA403 / ASTM A403
Dimension Standard	ASME/ANSI B16.9, MSS-SP-43/SP-79, ASME B16.28, ASME B16.25, ASME B16.49
Standard Size Range	1/2” NB TO 48” NB. (Fabricated, Seamless and 100% X-Ray Welded)
Manufacturing Type	Fabricated / Seamless / Welded / ERW
Bending Radius	R=1D, 2D, 3D, 5D, 6D, 8D, 10D, or Custom
Wall Thickness / Schedule	SCH5, SCH10, SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS / 3mm – 40mm
End Connection	Butt Weld
Melting Point	1400-1450°C for (WP317)
Outside Diameter (OD)	Seamless / Buttweld Fitting ( 1/2″～48″), ERW / Welded / Fabricated Buttweld Fitting (1/2″～48″)
Value Added Services	Hot Dipped Galvanizing, Electro Polish, Sand Blasting, Epoxy & FBE Coating, Threading, Soldering
Other Standards	MSS SP-75, ISO, SNSI, JIS, DIN, GB, DIN2617, JISB2311, JISB2312, JISB2313 / T12459GB / T13401, SH3408, SH3409HG / T21635HG / T21631SY / T05010
Material Test Certificates (MTC)	As per EN 10204 3.2 and EN 10204 3.1, Certifying NACE MR0175, NACE MR0103
Materials	AISI 317
Two Halve / Two Joint Buttweld Fittings Size	6″ to 48″
Manufacturing Specification	ASME: ANSI B16.9, ANSI B16.28, ASME B16.25, MSS-SP-43, DIN: DIN2605, DIN2615, DIN2616, DIN2617, DIN28011, EN: EN10253-1, EN10253-2
A403 SS Seamless Fittings	Size: 15 NB to 300 NB \| Sch.& Swg: Sch.5 to Sch.XXs
A403 SS Welded Fittings	Size: 15 NB to 600 NB \| Sch.& Swg: Sch.5 to Sch.80s

Stainless Steel 347 / 347H Buttweld Fittings consist of chromium (17–19%), nickel (9–13%), and columbium (niobium), and 347H contains more carbon (0.04–0.10%). This material exhibits superior mechanical properties such as a tensile strength of around 515 MPa, yield strength of 205 MPa, and elongation of around 40%. The stabilization with niobium avoids precipitation of carbide, which increases weldability and immunity to intergranular corrosion. 347H provides superior creep and stress rupture properties to be used in elevated temperature service. These characteristics make the fittings structurally sound and resistant to corrosion in high-heat and high-stress applications.

Stainless Steel 347 / 347H Buttweld Fittings Chemical Composition

Element	C	Cr	Mn	Ni	P	S	Si	Cb/Ta
SS 347	0.08 max	min: 17.0 max: 20.0	2.0 max	min: 9.0 max: 13.0	0.04 max	0.30 max	0.75 max	min:10x C max: 1.0
SS 347H	min: 0.04 max: 0.10	min: 17.0 max: 20.0	2.0 max	min: 9.0 max: 13.0	0.03 max	0.30 max	0.75 max	min:10x C max: 1.0

Stainless Steel 347 / 347H Buttweld Fittings Mechanical Properties

Grade	Tensile Strength ksi (MPa) min	Yield Strength 0.2% ksi offset ksi (MPa) min	Elongation (% in 50mm) min	Hardness (Brinell) MAX	Hardness (Rockwell B) MAX
347/347H	75 (515)	30 (205)	40	201	95

ASTM A403 Stainless Steel 347 Buttweld Fittings Cross in India, Stainless Steel 1.4550 Buttweld Pipe Fittings United kingdom, SS 347H Butt Weld Pipe Cap Delhi, Stainless Steel 347 Eccentric Reducer Delhi, Stainless Steel 347 Equal Tee India, 347H Stainless Steel Reducer in Delhi, Stainless Steel 347 SR Elbow Exporter in India,

Largest Stainless Steel 347 / 347H Buttweld Fittings Supplier in Delhi, India

Heer Fittings is a leading supplier of Stainless Steel 347 Buttweld Fittings in Delhi, India. We offer an extensive range of Stainless Steel 347H Buttweld Fittings, renowned for their excellent corrosion resistance and high strength, which makes them perfect for demanding industrial applications like chemical processing, marine environments, and high-temperature systems. With a commitment to quality and reliable delivery, we ensure our clients receive top-tier products tailored to meet the specific needs of various industries.

We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.

If You Are Looking To Buy High Quality

Stainless Steel 347 / 347H Buttweld Fittings Equivalent Grade

STANDARD	UNS	WNR.	EN	JIS	GOST
SS 347	S34700	1.4550	X6CrNiNb18-10	SUS 347	08Ch18N12B
SS 347H	S34709	1.4961	X6CrNiNb18-12	SUS 347H	–

Why Choose Stainless Steel 347 / 347H Buttweld Fittings from Heer Fittings?

Stainless Steel 347 Buttweld Fittings from Heer Fittings offer exceptional corrosion resistance, especially in seawater and harsh environments. They are known for their high strength, durability, and resistance to pitting and crevice corrosion, ensuring long-lasting performance. We provide precise manufacturing, quality control, and reliable service for diverse industrial applications.

UNS S34709 Stub End Uk, ANSI B16.9 Stainless Steel 347 Pipe Fittings United kingdom, Stainless Steel 347H Pipe Bend Stockist in Delhi, Stainless Steel 347 Pipe Nipple Manufacturer & Exporter in Delhi, Stainless Steel 1.4961 Butt Weld Pipe Fittings in India, Stainless Steel 347 Pipe Two Joint Pipe Fittings Delhi, 347H Stainless Steel Pipe Welded Fittings Manufacturers in India, Stainless Steel 347 Pipe Butt weld Fittings In India, ASTM A403 Stainless Steel 347H Pipe Butt Weld Fittings Supplier in Delhi, India.

Customer Support

Largest Inventory

On Time Deliveries

ISO Certified

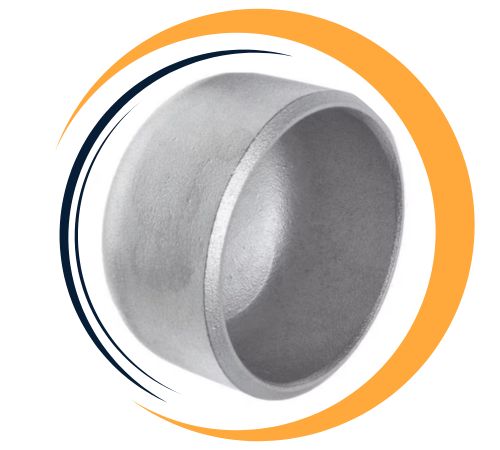

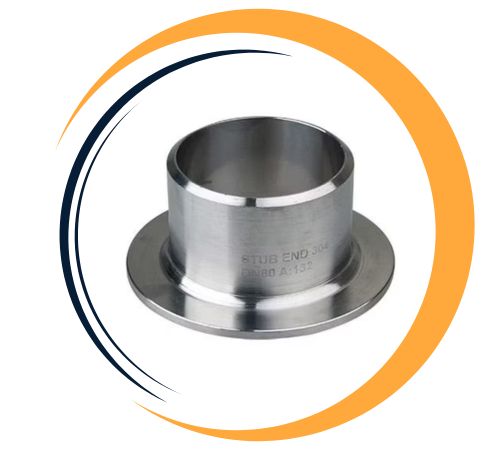

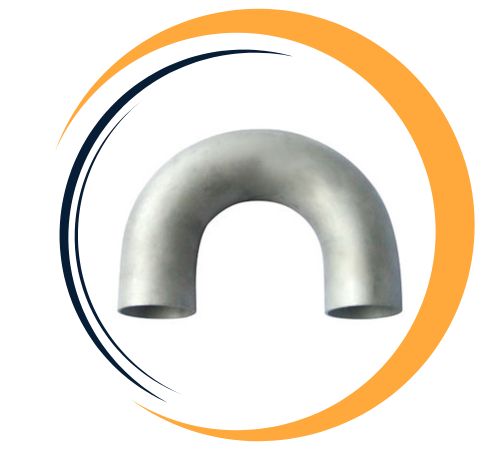

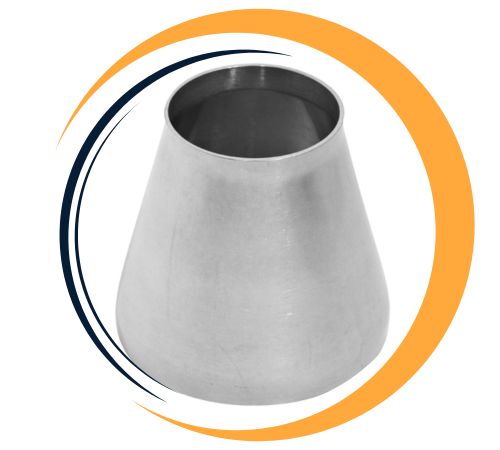

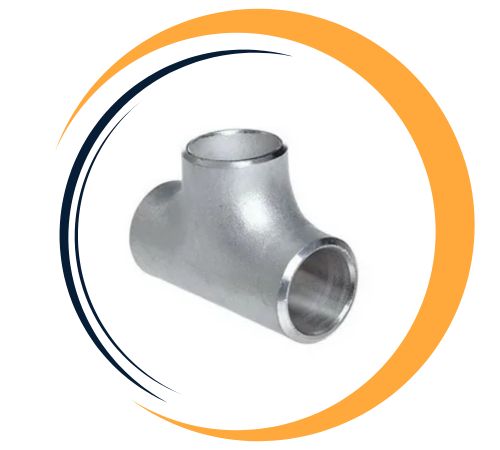

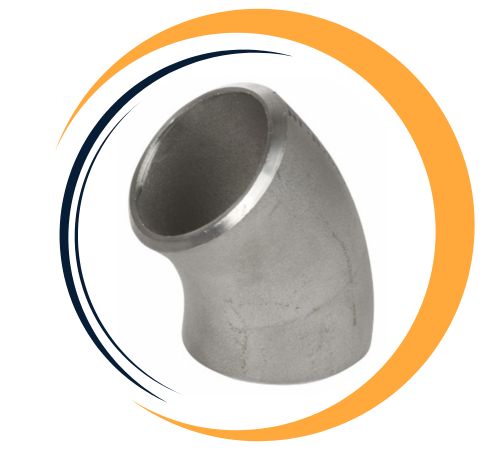

Types of Stainless Steel 347 / 347H Buttweld Fittings

Stainless Steel 347 / 347H Buttweld Fittings Dimensions Chart

Nominal Pipe Size (inches)	Outside Diameter		45°Elbows		90° Elbows		180° Returns
	Outside Diameter		Long Radius		Long Radius	Short Radius	Long Radius
	(mm)	(inches)	Center to Face (inches)	Radius (inches)	Center to Face (inches)	Center to Face (inches)	Center to Center (inches)	Back to face (inches)
1	33.4	1.315	7/8		1 1/2	1	3	2 3/16
1/2	21.3	0.840	5/8		1 1/2	–	2	1 7/8
3/4	26.7	1.050	7/16		1 1/8	–	2 1/4	1 11/16
1 1/4	42.2	1.660	1		1 7/8	1 1/4	3 3/4	2 3/4
1 1/2	48.3	1.900	1 1/8	3	2 1/4	1 1/2	4 1/2	3 1/4
2	60.3	2.375	1 3/8	4	3	2	6	4 3/16
2 1/2	73.0	2.875	1 3/4	5	3 3/4	2 1/2	7 1/2	5 3/16
3	88.9	3.500	2	6	4 1/2	3	9	6 1/4
3 1/2	101.6	4.000	2 1/4	7	5 1/4	3 1/2	10 1/2	7 1/4
4	114.3	4.500	2 1/2	8	6	4	12	8 1/4
5	141.3	5.563	3 1/8	10	7 1/2	5	15	10 5/16
6	168.3	6.625	3 3/4	12	9	6	18	12 5/16
8	219.1	8.625	5	12	12	8	24	16 5/16
10	273.1	10.750	6 1/4	15	15	10	30	20 3/8
12	323.9	12.750	7 1/2	18	18	12	36	24 3/8

Are Custom Sizes Available for Stainless Steel 347 / 347H Buttweld Fittings?

Yes, custom sizes for Stainless Steel 347 / 347H Buttweld Fittings are available at Heer Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@heerfittings.com.

ASTM A403 Stainless Steel 347 Butt Weld Cross in India, Stainless Steel 1.4449 Buttweld Pipe Fittings United kingdom, SS 347H Butt Weld Pipe Cap Delhi, Stainless Steel 347 Eccentric Reducer Delhi, Stainless Steel 347H Equal Tee India, 347 Stainless Steel Reducer in Delhi, SS 347H SR Elbow Exporter in India,

Application Industry of Stainless Steel 347 / 347H Buttweld Fittings

Stainless Steel 347 / 347H Buttweld Fittings are applied extensively for continuous exposure in high-temperature and corrosive environments. They are suited for use in heat exchangers, boiler tubes, superheaters, chemical tanks, and refinery process piping. SS 347 is commonly chosen in welded systems where intergranular corrosion should be prohibited, and 347H is used in environments where improved high-temperature strength and resistance to creep are necessary. These fittings find application in aerospace, power plants, and thermal processing equipment as well. Their strength, weldability, and resistance to oxidation make them a reliable option for demanding industrial piping systems.
