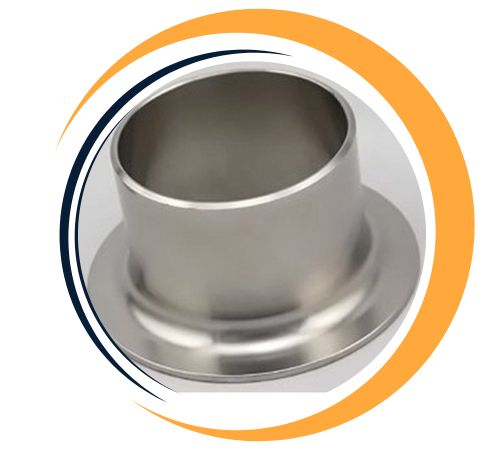

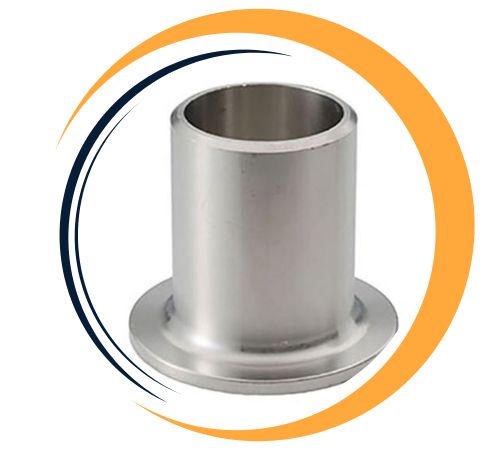

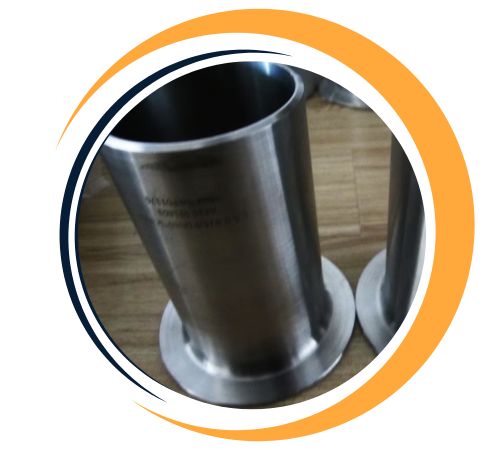

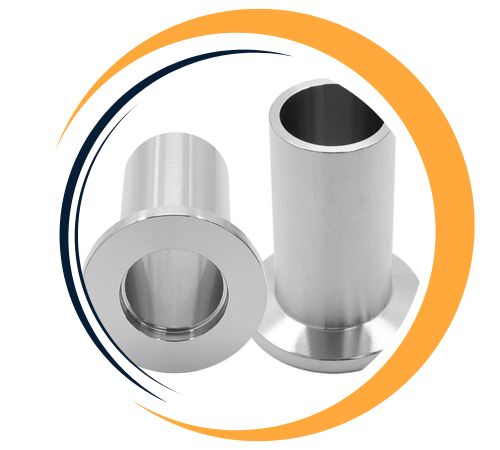

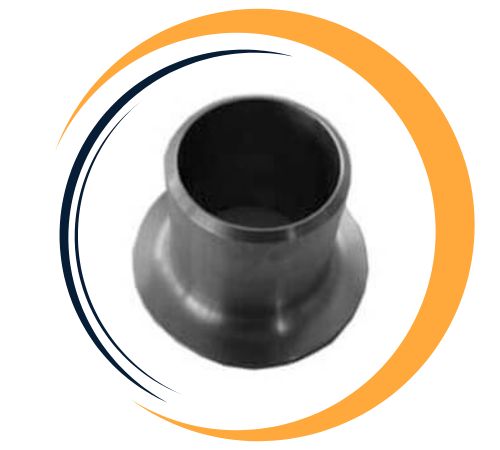

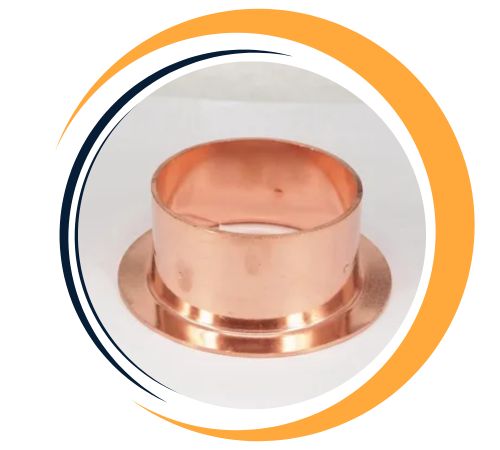

Heer Fittings, a well-respected manufacturer and supplier based in Delhi, India, provides an extensive selection of Long and Short Stub Bends tailored to meet the varied demands of piping and fluid handling systems. These expertly crafted bends are designed to facilitate smooth flow transitions, minimize pressure drops, and offer exceptional durability. Available in a range of materials and sizes, Heer Fittings’ stub bends find applications across industries like oil & gas, petrochemical, chemical processing, and power generation. Their dedication to quality, prompt delivery, and compliance with international standards has established them as a reliable name in the world of industrial pipe fittings.
Dimensions : ASME/ANSI B16.9, ASME B16.28, MSS-SP-43
Size : 1/2″NB TO 36 “NB IN
Type : Seamless / ERW / Welded / Fabricated
Thickness : Schedule 5S, 10S, 20S, S10, S20, S30, STD, 40S, S40, S60, XS, 80S, S80, S100, S120, S140, S160, XXS and etc.
Form : Long Stub Ends, Pipe Stub Ends, Butt weld Long Stub Ends.
| Short pattern stub end Pipe Fittings size | Seamless Butt Weld Fittings: 1/2″ – 10″ Welded Butt Weld Fittings: 1/2″ – 48″ |
|---|---|
| Specifications | ASME B16.9 Short stub end |
| Short type stub end Dimensions | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10 |
| lap joint stub end Short pattern Thickness | SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75 |
| Short stub ends Types | Seamless / ERW / Welded / Fabricated Pipe Fittings |
| Short spigot stub end Type | DN15-DN1200 |
| Bending Radius | R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom Pipe Fittings |
| Application |
|
| Short type stub end Fittings | Angle : 22.5 deg, 30deg, 45 deg, 90 deg, 180 deg, 1.0D, 1.5D, 2.0D, 2.5D, 3D, 4D, 5D, 6D, 7D-40D. Standard: ASME B16.9, ASME B16.28, ASME B16.25, MSS SP-75 DIN2605 JISB2311 JISB2312 JISB2313, BS, GB, ISO |
| Size Range | ½” NB to 24″ NB in Sch 10s, 40s, 80s, 160s, XXS. (DN6~DN100) |
| Manufacturing process | Push, Press, Forge, Cast, etc. |
Typically made from stainless steel, carbon steel, alloy steel, or other premium alloys depending on the specific application, Long and Short Stub Bends boast impressive mechanical properties. They feature tensile strengths from 450 MPa to over 600 MPa and yield strengths between 200 MPa and 400 MPa. These bends are engineered to allow for smooth directional changes while enduring high pressure, temperature, and mechanical stress. Their robust metallurgical structure and corrosion-resistant surfaces guarantee dependable, long-lasting performance in various industrial and environmental settings.
| Product (Type “C”) | Length (J) | NPS | Sch 5S Approx. Weight | O.D. | Sch 5S, Wall Thick. (T) | Sch 5S, Inside Dia. (I.D.) |
|---|---|---|---|---|---|---|
| 1 1/2″ | 2 | 1.5 | 0.29 | 1.9 | 0.065 | 1.77 |
| 1 1/4″ | 2 | 1.25 | 0.21 | 1.66 | 0.065 | 1.53 |
| 1″ | 2 | 1 | 0.19 | 1.315 | 0.065 | 1.185 |
| 1/2″ | 2 | 0.5 | 0.13 | 0.84 | 0.065 | 0.71 |
| 10″ | 5 | 10 | 7.48 | 10.75 | 0.134 | 10.482 |
| 12″ | 6 | 12 | 15 | 12.75 | 0.156 | 12.438 |
| 14″ | 6 | 14 | 19.2 | 14 | 0.156 | 13.688 |
| 16″ | 6 | 16 | 23.9 | 16 | 0.165 | 15.67 |
| 18″ | 6 | 18 | 28.5 | 18 | 0.165 | 17.67 |
| 2 1/2″ | 2.5 | 2.5 | 0.75 | 2.875 | 0.083 | 2.709 |
| 2″ | 2.5 | 2 | 0.44 | 2.375 | 0.065 | 2.245 |
| 20″ | 6 | 20 | 36.3 | 20 | 0.188 | 19.624 |
| 24″ | 6 | 24 | 56 | 24 | 0.218 | 23.564 |
| 3″ | 2.5 | 3 | 0.94 | 3.5 | 0.083 | 3.334 |
| 3/4″ | 2 | 0.75 | 0.14 | 1.05 | 0.065 | 0.92 |
| 4″ | 3 | 4 | 1.38 | 4.5 | 0.083 | 4.334 |
| 5″ | 3 | 5 | 2.06 | 5.563 | 0.109 | 5.345 |
| 6″ | 3.5 | 6 | 2.75 | 6.625 | 0.109 | 6.407 |
| 8″ | 4 | 8 | 3.88 | 8.625 | 0.109 | 8.407 |
| Product (Type “A“) | NPS | Length (F), Short | Diameter(G) | I.D. | Wall Thick. (T) | O.D. | Thickness (t) | XX Strong Wall Approx. Weights | XX Strong Wall, Inside Dia (I.D.) |
|---|---|---|---|---|---|---|---|---|---|
| 1 1/2″ | 1.5 | 2 | 2.875 | 1.338 | 0.281 | 1.9 | 0.281 | 2.98 | 1.1 |
| 1 1/2″ | 1.5 | 4 | 2.875 | 0.15 | 1.49 | 1.9 | 0.15 | 1.5 | 0.2 |
| 1 1/4″ | 1.25 | 2 | 2.5 | 1.16 | 0.25 | 1.66 | 0.25 | 2.52 | 0.896 |
| 1 1/4″ | 1.25 | 4 | 2.5 | 0.14 | 1.26 | 1.66 | 0.14 | 1.278 | 0.191 |
| 1″ | 1 | 2 | 2 | 0.815 | 0.25 | 1.315 | 0.25 | 1.76 | 0.599 |
| 1″ | 1 | 4 | 2 | 0.133 | 0.88 | 1.315 | 0.133 | 0.957 | 0.179 |
| 1/2″ | 0.5 | 2 | 1.375 | 0.464 | 0.188 | 0.84 | 0.187 | 0.68 | 0.252 |
| 1/2″ | 0.5 | 3 | 1.375 | 0.109 | 0.34 | 0.84 | 0.109 | 0.546 | 0.147 |
| 10″ | 10 | 5 | 12.75 | 8.5 | 1.125 | 10.75 | 1.125 | – | – |
| 10″ | 10 | 10 | 12.75 | 0.365 | 54 | 10.75 | 0.365 | 9.75 | 0.5 |
| 12″ | 12 | 6 | 15 | 10.126 | 1.312 | 12.75 | 1.312 | – | – |
| 12″ | 12 | 10 | 15 | 0.375 | 64.5 | 12.75 | 0.375 | 11.75 | 0.5 |
| 14″ | 14 | 12 | 16.25 | 0.375 | 84 | 14 | 0.375 | 13 | 0.5 |
| 16″ | 16 | 12 | 18.5 | 0.375 | 98 | 16 | 0.375 | 15 | 0.5 |
| 18″ | 18 | 12 | 21 | 0.375 | 136 | 18 | 0.375 | 17 | 0.5 |
| 2 1/2″ | 2.5 | 2.5 | 4.125 | 2.125 | 0.375 | 2.875 | 0.375 | 8.8 | 1.771 |
| 2 1/2″ | 2.5 | 6 | 4.125 | 0.203 | 4.4 | 2.875 | 0.203 | 2.323 | 0.276 |
| 2″ | 2 | 2.5 | 3.625 | 1.689 | 0.343 | 2.375 | 0.343 | 6.1 | 1.503 |
| 2″ | 2 | 6 | 3.625 | 0.154 | 3.05 | 2.375 | 0.154 | 1.939 | 0.218 |
| 20″ | 20 | 12 | 23 | 0.375 | 157 | 20 | 0.375 | 19 | 0.5 |
| 3 1/2″ | 3.5 | 3 | 5.5 | – | – | 4 | – | 15.5 | 2.728 |
| 3 1/2″ | 3.5 | 6 | 5.5 | 0.226 | 7.75 | 4 | 0.226 | 3.364 | 0.318 |
| 3″ | 3 | 2.5 | 5 | 2.624 | 0.438 | 3.5 | 0.438 | 9.8 | 2.3 |
| 3″ | 3 | 6 | 5 | 0.216 | 6.5 | 3.5 | 0.216 | 2.9 | 0.3 |
| 3/4″ | 0.75 | 2 | 1.688 | 0.612 | 0.219 | 1.05 | 0.218 | 0.94 | 0.434 |
| 3/4″ | 0.75 | 3 | 1.688 | 0.113 | 0.47 | 1.05 | 0.113 | 0.742 | 0.154 |
| 4″ | 4 | 3 | 6.188 | 3.438 | 0.531 | 4.5 | 0.531 | 19.3 | 3.152 |
| 4″ | 4 | 6 | 6.188 | 0.237 | 9.65 | 4.5 | 0.237 | 3.826 | 0.337 |
| 5″ | 5 | 3 | 7.313 | 4.313 | 0.625 | 5.563 | 0.625 | 32.66 | 4.063 |
| 5″ | 5 | 8 | 7.313 | 0.258 | 16.33 | 5.563 | 0.258 | 4.813 | 0.375 |
| 6″ | 6 | 3.5 | 8.5 | 5.187 | 0.719 | 6.625 | 0.718 | 45.26 | 4.897 |
| 6″ | 6 | 8 | 8.5 | 0.28 | 22.63 | 6.625 | 0.28 | 5.761 | 0.432 |
| 8″ | 8 | 4 | 10.625 | 6.813 | 0.906 | 8.625 | 0.906 | 59.71 | 6.875 |
| 8″ | 8 | 8 | 10.625 | 0.322 | 34.12 | 8.625 | 0.322 | 7.625 | 0.5 |
Heer Fittings one of the largest suppliers of Long and Short Stub Bend in Delhi, India. We specialize in providing a wide range of high-quality, durable fittings for various industrial applications. Our inventory includes elbows, tees, reducers, couplings, and other essential fittings designed to offer exceptional corrosion resistance and strength. Long and Short Stub Bend is known for its cost-effectiveness and excellent mechanical properties, making it ideal for industries such as construction, chemical processing, and food processing. With a commitment to customer satisfaction, timely delivery, and competitive pricing, we are the trusted choice for Long and Short Stub Bend in the India.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Long and Short Stub Bend from Heer Fittings offer exceptional corrosion resistance, especially in seawater and harsh environments. They are known for their high strength, durability, and resistance to pitting and crevice corrosion, ensuring long-lasting performance. We provide precise manufacturing, quality control, and reliable service for diverse industrial applications.
Long Stub and Short Stub Bends offer several advantages in piping systems. They provide superior strength and durability, making them ideal for high-pressure and high-temperature applications. These bends are designed to minimize turbulence and flow resistance, ensuring efficient fluid or gas movement. Their corrosion resistance, especially when made from materials like stainless steel, ensures long-lasting performance in harsh environments. Additionally, they are easy to install and maintain, with reduced risk of leakage. Versatile and reliable, Long and Short Stub Bends are widely used in industries like oil and gas, chemical processing, and power generation.
Yes, custom sizes are available for Long and Short Stub Bend to meet specific requirements. We offer tailored solutions to ensure precise fit and performance for various applications. For more information, please contact us at sales@heerfittings.com.
Long and Short Stub Bends are widely utilized in process piping systems where directional changes are necessary without sacrificing flow efficiency. In oil & gas refineries, they facilitate the transition of pipeline direction while preserving pressure integrity. Chemical and petrochemical facilities depend on them for systems that transport aggressive fluids. Power plants and water treatment facilities incorporate these bends in high-temperature, high-pressure operations. Their compact design, straightforward installation, and reliable sealing capabilities make them perfect for both above-ground and underground piping configurations in critical industrial infrastructure.
