Heer Fittings is a prominent equal, unequal, and reducing cross fittings manufacturer and supplier company based in Delhi, India, providing high-performance solutions to complex piping systems. Four-way fittings are produced as per the ASME B16.9 standard and are available with a variety of materials such as stainless steel, carbon steel, alloy steel, and specialty alloys. Equal crosses possess all four outlets with the same diameter, whereas unequal crosses possess one or more outlets that differ in size. Reducing crosses are constructed to connect pipes of different diameters while still providing proper distribution and flow of fluids.
Cross fittings are made by precision forging or butt-welding, depending on the material and the use. Their mechanical properties differ by material grade; stainless steel types like SS 304 or 316 have tensile strengths of 515–620 MPa, and the carbon steel grades like ASTM A234 WPB have tensile strength of about 485 MPa. Reducing crosses and unequal crosses need close dimensional control to ensure flow efficiency and pressure ratings. These fittings are also designed to handle high pressure and temperature changes, and hence are ideal for critical process systems.

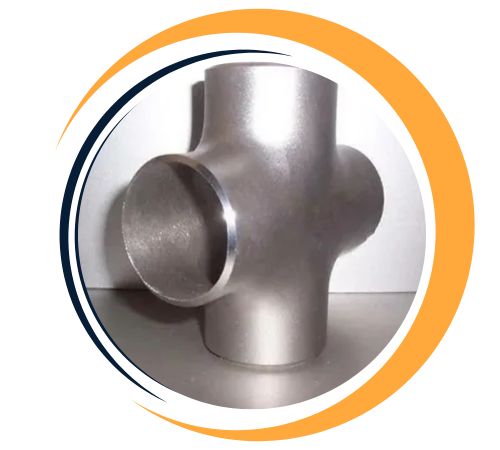

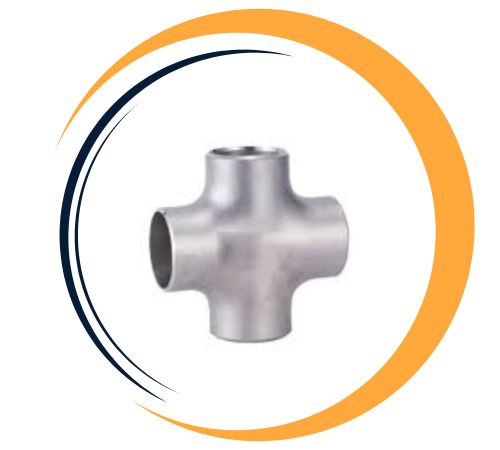

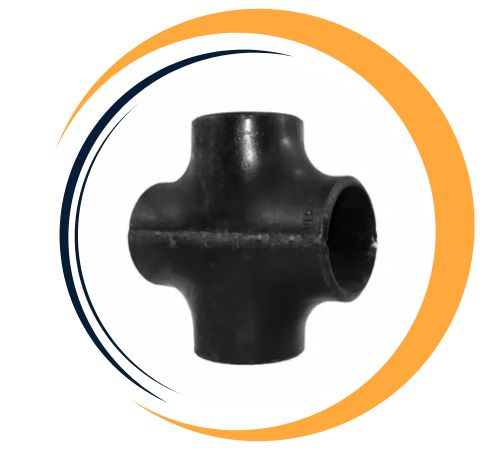

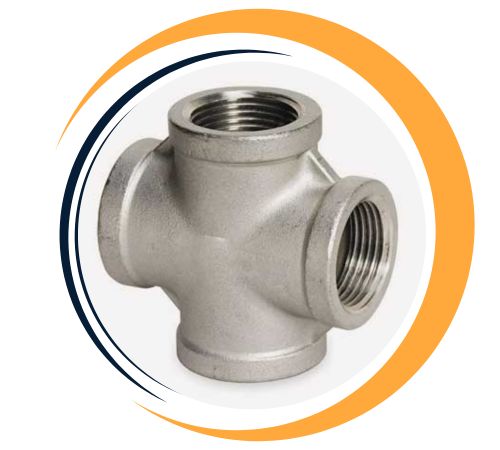

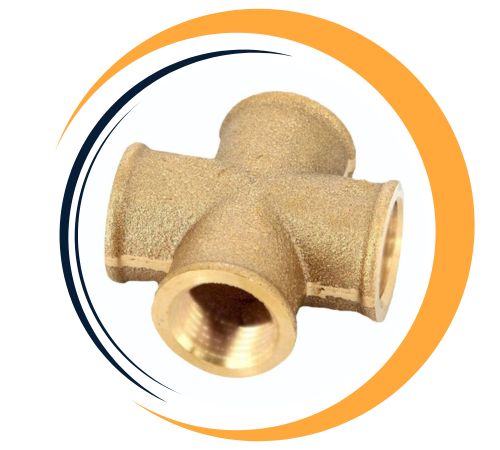

| Buttweld Equal Cross size | Welded Cross : 1/2″ – 48″ |
|---|---|
| Buttweld Equal Cross Dimensions | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10 |
| Buttweld Equal Cross Thickness | SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75 |
| Buttweld Equal Cross Connection | Welding |
| Size Range | ½” NB to 24″ NB in Sch 10s, 40s, 80s, 160s, XXS. (DN6~DN100) Buttweld Cross |
| ASME B16.9 Buttweld Equal Cross Manufacturing process | Push, Press, Forge, Cast, etc. |
| Buttweld Equal Cross Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| ANSI B16.9 Buttweld Equal Cross Origin & Mills | Japanese, Indian, USA, Korean, European, Ukraine, Russian |
| We provide Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175 | |
| Buttweld Unequal Cross size | Welded Cross : 1/2″ – 48″ |
|---|---|
| Buttweld Unequal Cross Dimensions | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10 |
| Buttweld Unequal Cross Thickness | SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75 |
| Buttweld Unequal Cross Connection | Welding |
| Size Range | ½” NB to 24″ NB in Sch 10s, 40s, 80s, 160s, XXS. (DN6~DN100) Buttweld Cross |
| ASME B16.9 Buttweld Unequal Cross Manufacturing process | Push, Press, Forge, Cast, etc. |
| Buttweld Unequal Cross Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| ANSI B16.9 Buttweld Unequal Cross Origin & Mills | Japanese, Indian, USA, Korean, European, Ukraine, Russian |
| We provide Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175 | |
| Buttweld Reducing Cross size | Welded Cross : 1/2″ – 48″ |
|---|---|
| Buttweld Reducing Cross Dimensions | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10 |
| Buttweld Reducing Cross Thickness | SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75 |
| Buttweld Reducing Cross Connection | Welding |
| Size Range | ½” NB to 24″ NB in Sch 10s, 40s, 80s, 160s, XXS. (DN6~DN100) Buttweld Cross |
| ASME B16.9 Buttweld Reducing Cross Manufacturing process | Push, Press, Forge, Cast, etc. |
| Buttweld Reducing Cross Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| ANSI B16.9 Buttweld Reducing Cross Origin & Mills | Japanese, Indian, USA, Korean, European, Ukraine, Russian |
| We provide Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175 | |
Heer Fittings is a leading supplier of Equal/ Unequal/ Reducing Cross in Delhi, India. We offer an extensive range of Equal/ Unequal/ Reducing Cross, renowned for their excellent corrosion resistance and high strength, which makes them perfect for demanding industrial applications like chemical processing, marine environments, and high-temperature systems. With a commitment to quality and reliable delivery, we ensure our clients receive top-tier products tailored to meet the specific needs of various industries.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Equal/ Unequal/ Reducing Cross from Heer Fittings offer exceptional corrosion resistance, especially in seawater and harsh environments. They are known for their high strength, durability, and resistance to pitting and crevice corrosion, ensuring long-lasting performance. We provide precise manufacturing, quality control, and reliable service for diverse industrial applications.
| Nominal Pipe Size (NPS) |
DN |
Outside Diameter at Bevel |
Center- to-End |
|
|
Run.C |
Outlet. M[Notes(1) and (2)] | |||
| 1/2 | 15 | 21.3 | 25 | 25 |
| 3/4 | 20 | 26.7 | 29 | 29 |
| 1 | 25 | 33.4 | 38 | 38 |
| 1-1/4 | 32 | 42.2 | 48 | 48 |
| 1-1/2 | 40 | 48.3 | 57 | 57 |
| 2 | 50 | 60.3 | 64 | 64 |
| 2-1/2 | 65 | 73.0 | 76 | 76 |
| 3 | 80 | 88.9 | 86 | 86 |
| 3-1/2 | 90 | 101.6 | 95 | 95 |
| 4 | 100 | 114.3 | 105 | 105 |
| 5 | 125 | 141.3 | 124 | 124 |
| 6 | 150 | 168.3 | 143 | 143 |
| 8 | 200 | 219.1 | 178 | 178 |
| 10 | 250 | 273.0 | 216 | 216 |
| 12 | 300 | 323.8 | 254 | 254 |
| 14 | 350 | 355.6 | 279 | 279 |
| 16 | 400 | 406.4 | 305 | 305 |
| 18 | 450 | 457 | 343 | 343 |
| 20 | 500 | 508 | 381 | 381 |
| 22 | 550 | 559 | 419 | 419 |
| 24 | 600 | 610 | 432 | 432 |
| 26 | 650 | 660 | 495 | 495 |
| 28 | 700 | 711 | 521 | 521 |
| 30 | 750 | 762 | 559 | 559 |
| 32 | 800 | 813 | 597 | 597 |
| 34 | 850 | 864 | 635 | 635 |
| 36 | 900 | 914 | 673 | 673 |
| 38 | 950 | 965 | 711 | 711 |
| 40 | 1000 | 1016 | 749 | 749 |
| 42 | 1050 | 1067 | 762 | 711 |
| 44 | 1100 | 1118 | 813 | 762 |
| 46 | 1150 | 1168 | 851 | 800 |
| 48 | 1200 | 1219 | 889 | 838 |
Yes, custom sizes for Equal/ Unequal/ Reducing Cross are available at Heer Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@heerfittings.com.
Equal, unequal, and reducing cross fittings are extensively utilized in oil and gas, petrochemical, chemical processing, power generation, and water treatment industries. Equal crosses are utilized where fluid flow in all four directions needs to be consistent. Unequal and reducing crosses are employed to go from one pipe size to another or split flow between various branches of a system. These fittings are highly important in high-pressure piping, distribution systems, and intricate piping configurations where space availability and flow regulation play important roles. Their strength, durability, and flexibility render them the backbone elements in industrial infrastructure.
