Inconel 718 Pipe Fittings

Heer Fittings deals in Inconel 718 Pipe Fittings in Delhi, India, designed for use in applications demanding outstanding strength, corrosion resistance, and performance at cryogenic and high temperatures. These fittings, available in common configurations like elbows, tees, reducers, crosses, and caps, are produced to ASTM B366, ASME B16.9, and equivalent international standards. Inconel 718 (UNS N07718) is a nickel-chromium alloy strengthened with niobium, molybdenum, and titanium, and possesses good weldability, fatigue, and creep-rupture properties.

ASTM B366 Alloy 718 Pipe Fittings Suppliers In India, 718 Inconel Butt weld Pipe Fittings Exporter United kingdom, Inconel Alloy 718 Buttweld Fittings Delhi, UNS N07718 Pipe Fittings Delhi, Nickel Alloy 718 Pipe Fittings India, Alloy 718 Industrial Pipe Fittings at Best Price Delhi, Inconel 718 Pipe Fittings India, Alloy 718 Pipe Fittings Delhi, India.

Inconel 718 Pipe Fittings Specification

Specification :	ASTM B366, ASTM SB 366, ASTM B564, ASME SB564
Dimensions :	ANSI/ASME B16.9, B16.28, MSS-SP-43.
Size :	½”NB to 24″NB in Sch 10s, 40s, 80s, 160s, XXS.
Thickness :	Sch Sch 10, 20, 40, STD, 60, 80, XS, 100, 120, 140, 160 Sch XXS
Types :	Seamless / ERW / Welded / Fabricated
Grades :	Inconel 718 – UNS N06600, Inconel 718 – UNS N06601 Inconel 718 – UNS N06625 Incoloy 800 – UNS N08800, Incoloy 800H / HT – UNS N08810, Incoloy 825 – UNS N08825

Inconel 718 consists of about 52.5% nickel, 19% chromium, 5% columbium (niobium), 3% molybdenum, and trace amounts of titanium and aluminum. It offers tensile strength up to ~1240 MPa, yield strength up to ~1030 MPa, and elongation of ~12–20%, based on heat treatment (usually age-hardened). The alloy is extremely resistant to oxidation, pitting, and stress corrosion cracking, and retains its mechanical stability from -253°C (cryogenic) to 700°C (1300°F).

Inconel 718 Pipe Fittings Chemical Composition

Grade	C	Mn	Si	S	Cu	Fe	Ni	Cr	Al	Ti	Nb
718	0.08	0.35	0.35	0.01	0.3	bal	50.0 – 55.0	17.00 – 21.00	0.2 – 0.8	0.7 – 1.15	4.75 – 5.5

Inconel 718 Pipe Fittings Mechanical Properties

Grade	Density	Melting Point	Yield Strength (0.2%Offset)	Tensile Strength	Elongation
718	8.2 g/cm3	1350 °C (2460 °F)	Psi – 70,000 , MPa – 482	Psi – 1,35,000 , MPa -930	45 %

Inconel 2.4668 Pipe Fittings India, ASME SB366 Nickel Alloy 718 Pipe Fittings Supplier in United kingdom, Inconel 718 90 Deg Elbow Delhi, Inconel 718 Butt Weld LR Elbow Delhi, Alloy 718 Buttweld Tee India, Inconel® Alloy 718 Seamless Fittings In Delhi, Inconel 718 Welded Fittings India, Uk,

Largest Inconel 718 Pipe Fittings Supplier in Delhi, India

Heer Fittings is a leading supplier of Inconel 718 Pipe Fittings in Delhi, India. We offer an extensive range of Monel 400 fittings, renowned for their excellent corrosion resistance and high strength, which makes them perfect for demanding industrial applications like chemical processing, marine environments, and high-temperature systems. With a commitment to quality and reliable delivery, we ensure our clients receive top-tier products tailored to meet the specific needs of various industries.

We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.

If You Are Looking To Buy High Quality

Inconel 718 Buttweld Fittings Equivalent

STANDARD	UNS	WERKSTOFF NR.	AFNOR
Inconel 718	N07718	2.4668	NC19FeNb

Why Choose Inconel 718 Pipe Fittings from Heer Fittings?

Inconel 718 Pipe Fittings from Heer Fittings offer exceptional corrosion resistance, especially in seawater and harsh environments. They are known for their high strength, durability, and resistance to pitting and crevice corrosion, ensuring long-lasting performance. We provide precise manufacturing, quality control, and reliable service for diverse industrial applications.

Inconel 718 Pipe Fittings Dimensions Chart

Nominal Thickness (in) MM	Pipe Size (in)	Transverse Areas (in2) MM2			Diameter (in) MM		Volume (ft3/ft)	Number of Threads per inch of Screw	Weight		Length of Pipe (ft per sq.0 foot of surface)
Nominal Thickness (in) MM	Pipe Size (in)	Internal	External	Steel	Internal	External	Volume (ft3/ft)	Number of Threads per inch of Screw	(kg/m)	(lb/ft)	Internal Surface (ft)	External Surface (ft)
0.007	1/8	0.006	0.013	0.007	0.027	0.0405	0.00004	27	0.036	0.024	14.020	9.043
0.009	¼	0.010	0.023	0.013	0.036	0.0540	0.00007	18	0.063	0.042	10.049	7.007
0.009	3/8	0.019	0.036	0.017	0.049	0.0675	0.00013	18	0.084	0.057	7.075	5.066
0.011	½	0.030	0.055	0.025	0.062	0.0840	0.00021	14	1.026	0.085	6.014	4.055
0.011	¾	0.053	0.087	0.033	0.082	1.0050	0.00037	14	1.068	1.013	4.064	3.064
0.013	1	0.086	1.036	0.049	1.005	1.0315	0.00060	11 ½	2.050	1.068	3.064	2.090
0.014	1 ¼	1.050	2.016	0.067	1.038	1.0660	0.00104	11 ½	3.038	2.027	2.077	2.030
0.015	1 ½	2.004	2.084	0.080	1.061	1.0900	0.00141	11 ½	4.004	2.072	2.037	2.001
0.015	2	3.036	4.043	1.008	2.007	2.0375	0.00233	11 ½	5.043	3.065	1.085	1.061
0.020	2 ½	4.079	6.049	1.070	2.047	2.0875	0.00333	8	8.062	5.079	1.055	1.033
0.022	3	7.039	9.062	2.023	3.007	3.0500	0.00513	8	11.027	7.058	1.025	1.009
0.023	3 ½	9.089	12.056	2.068	3.055	4.0000	0.00687	8	13.056	9.011	1.008	0.095
0.024	4	12.073	15.090	3.017	4.003	4.0500	0.00884	8	16.006	10.079	0.095	0.085
0.026	5	20.000	24.030	4.030	5.005	5.0563	0.01389	8	21.074	14.061	0.076	0.069
0.028	6	28.089	34.047	5.058	6.007	6.0625	0.02006	8	28.023	18.097	0.063	0.058
0.032	8	50.002	58.042	8.040	7.098	8.0625	0.03552	8	42.049	28.055	0.048	0.044

ASME B36.10M Alloy 718 Pipe Schedule Chart

3 1/2″ IPS( 4.000″O. D.)	1/8″ IPS(.405″O. D.)
SCH 40, 10, 160, 80, XXH	SCH 40, 80
4″ IPS(4.500″O. D.)	1/4″ IPS(.540″O. D.)
SCH 40, 10, 160, 80, XXH	SCH 40, 10, 80
5″ IPS( 5.563″O. D.)	3/8″ IPS(.675″O. D.)
SCH 40, 10, 160, 80, XXH	SCH 40, 10, 80
6″ IPS(6.625″O. D.)	1/2″ IPS(.840″O. D.)
SCH 10, 5, 80, 40, 160, 120 XXH	SCH 5, 40, 10, 160, 80, XXH
8 ” IPS(8.625″O. D.)	3/4″ IPS(1.050″O. D.)
SCH 10, 5, 80, 40, 160, 120 XXH	SCH 40, 10, 160, 80, XXH
10″ IPS(10.750″O. D.)	1″ IPS:(1.315′O. D.)
SCH 10, 20, TRUE 80(.500), 40, 80 (.500),	SCH 5, 40, 10, 160, 80, XXH
12″ IPS(12.750″O. D.)	1-1/4″ IPS(1.660″O. D.)
SCH 10, 20, TRUE40(.406), 40(.375), SCH80(.500)	SCH 40, 10, 160, 80, XXH
14″ IPS(14.000″O. D.)	1-1/2″ IPS(1.900″O. D.)
SCH10(.188), SCH40(.375)	SCH 40, 10, 160, 80, XXH
16″ IPS(16.000″O. D.)	2″ IPS(2.375″O. D.)
SCH10(.188), SCH40(.375)	SCH 40, 10, 160, 80, XXH
18″ IPS (18.000″O. D.)	2 1/2″ IPS(2.875″O. D.)

Inconel 718 Reducer In India, Alloy N07718 Butt weld Fittings United kingdom, Inconel 718 Butt weld Unequal Cross, 2.4668 Butt weld Pipe Fittings Delhi, Inconel 718 End Pipe Cap Delhi, Alloy 718 Pipe Elbow India, ANSI B16.9 Inconel 718 Pipe Fittings ,Delhi 718 Inconel SR Elbow India, Inconel 718 Pipe Nipple In India, Inconel 718 Long Radius Bend United kingdom, Alloy 718 Stub End Stockist Delhi, Nickel Alloy 718 Two Joint Pipe Fittings Delhi, Inconel 718 Butt weld Pipe Fittings Manufacturer in India.

Customer Support

Largest Inventory

On Time Deliveries

ISO Certified

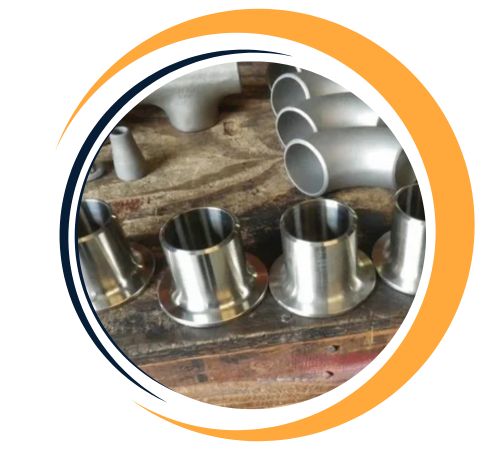

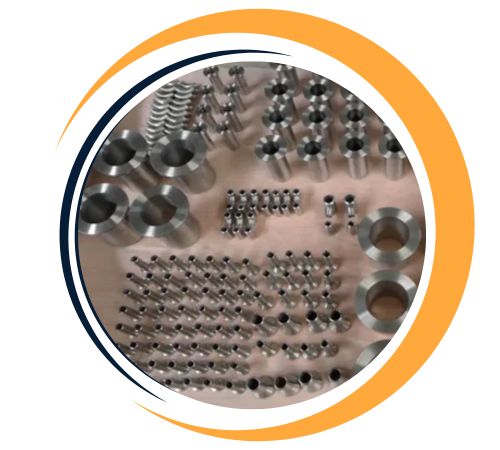

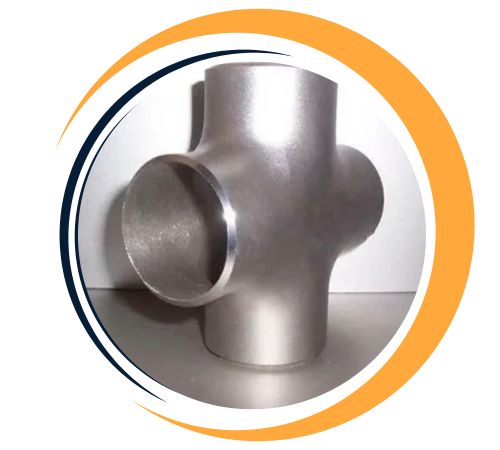

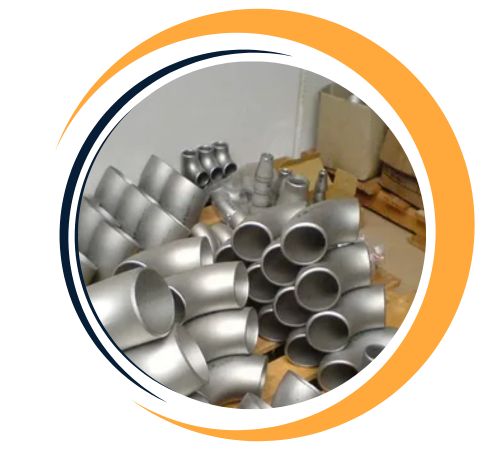

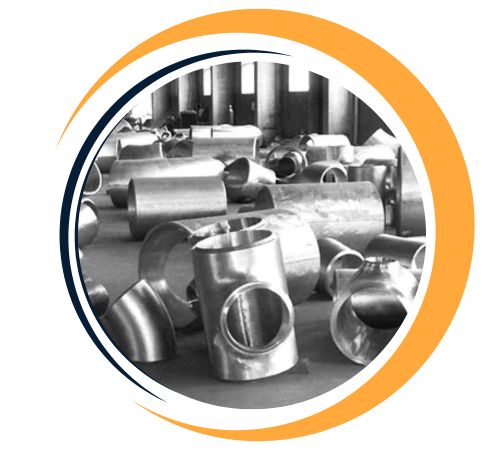

Types of Inconel 718 Pipe Fittings

Are Custom Sizes Available for Inconel 718 Pipe Fittings?

Yes, custom sizes for Inconel 718 Pipe Fittings are available at Heer Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@heerfittings.com.

Inconel 2.4668 Pipe Fittings India, ASME SB366 Nickel Alloy 718 Pipe Fittings Supplier in United kingdom, Inconel 718 90 Deg Elbow Delhi, Inconel 718 Butt Weld LR Elbow Delhi, Alloy 718 Buttweld Tee India, Inconel® Alloy 718 Seamless Fittings In Delhi, Inconel 718 Welded Fittings India, Uk,

Application Industry of Inconel 718 Pipe Fittings

Inconel 718 Pipe Fittings find applications in aerospace, gas turbines, nuclear reactors, chemical process plants, and oil and gas production—especially in high-pressure, high-temperature, and high-vibration services. These fittings are perfectly suited for supercritical steam lines, cryogenic storage facilities, downhole tools, heat exchangers, and turbo machinery. Inconel 718’s special combination of formability, thermal resistance, and long-term endurance makes it an ideal choice for mission-critical systems subject to harsh service conditions.
