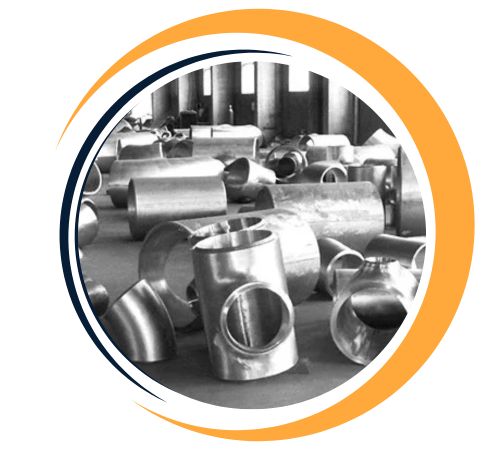

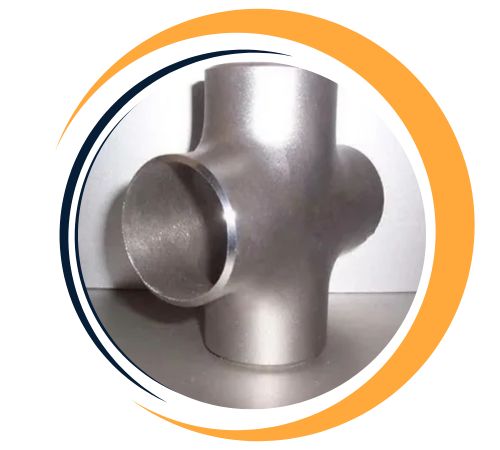

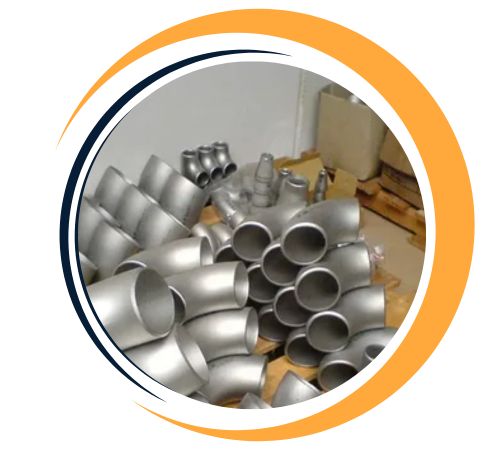

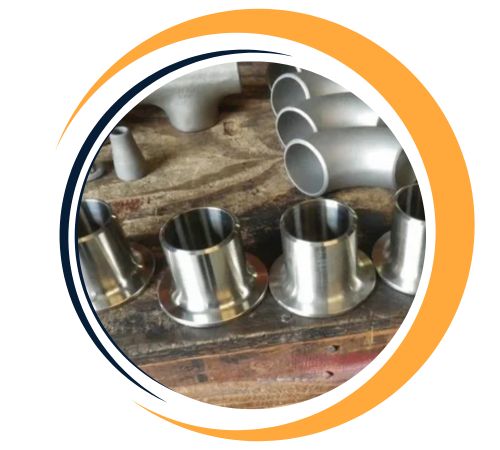

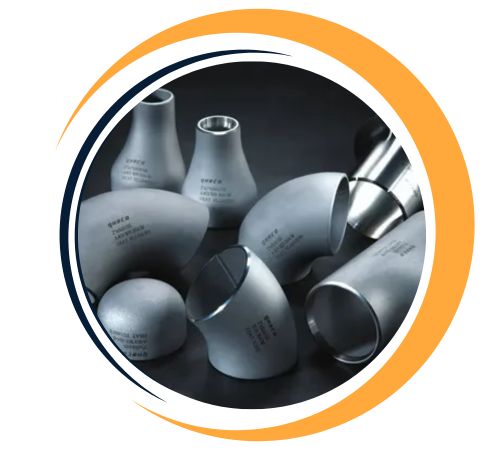

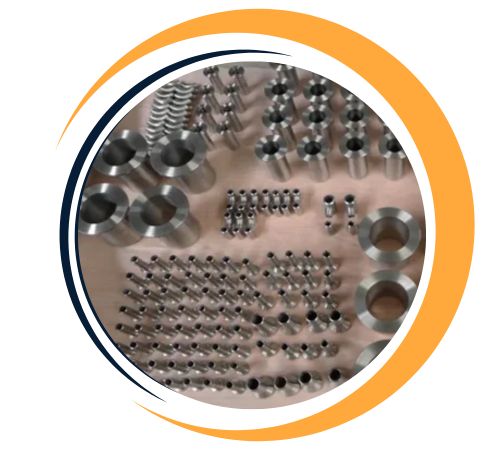

Heer Fittings is one of the top manufacturers and exporters of Hastelloy buttweld fittings in Delhi, India, providing high-quality corrosion-resistant fittings for the most severe chemical and high-temperature processes. All of these fittings—elbows, tees, reducers, caps, and crosses—are manufactured according to ASTM B366 and ASME B16.9 standards. Hastelloy, a nickel-based high-performance alloy, is well known for its high resistance to aggressive chemicals such as powerful oxidizers and reducers. Heer Fittings offers precision-engineered solutions in several Hastelloy grades like C22, C276, and B2 for applications in harsh industrial conditions.
| Standards | ASTM B366 / ASME SB366 |
| Dimensions | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10 |
| Size |
|
| Type | Seamless / Welded / Fabricated |
| Thickness | SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75 |
| Bending Radius | R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom |
The Hastelloy alloys consist mainly of nickel with appreciable additions of molybdenum, chromium, iron, and cobalt, depending on the grade. These constituents lend good tensile strength (usually 690–785 MPa), yield strength over 280 MPa, and superior elongation (often well over 40%). The alloy has excellent resistance to pitting, crevice corrosion, and stress corrosion cracking, even at hot, extremely corrosive, or oxidizing conditions. Hastelloy fittings are extremely weldable and maintain mechanical properties throughout a wide range of temperatures, and hence they are perfect for high-pressure chemical process equipment.
| ASME B16.9 ASTM B366 Hastelloy Fittings | Factory-Made Wrought Buttwelding Fittings | Long Radius Elbows, Long Radius Reducing Elbows, Long Radius Returns, Short Radius Elbows, Short Radius 180-deg Rerurns, 3D elbows, Straight Tees, Straight Crosses, Reducing Outlet Tees, Reducing Outlet Crosses, Lap Joint Stub Ends, Caps, Reducers |
| ASME B16.28 | Short Radius Elbows, Short Radius 180-deg Returns | |
| MSS SP43 | Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications | Long Radius Elbows, Straight and Reducing-on-the-Outlet Tees, Lap Joint Stub ends, caps, long radius 180 Degree returns, concentric reducers, eccentric reducers |
| MSS SP75 | Long Radius Elbows, 3R elbows, straight tees, reducing outlet tees, caps, reducers |
Heer Fittings is a leading supplier of Hastelloy Buttweld Fittings in Delhi, India. We offer an extensive range of Monel 400 fittings, renowned for their excellent corrosion resistance and high strength, which makes them perfect for demanding industrial applications like chemical processing, marine environments, and high-temperature systems. With a commitment to quality and reliable delivery, we ensure our clients receive top-tier products tailored to meet the specific needs of various industries.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| All Fittings | 90°and 45° Ells and Tees | Reducers and Lap Joint Stub | Caps | 180° Returns | Angularity Tol | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Nominal Pipe Plane Size (NPS) | Outside(1) Diameter at Bevel | Inside(1) Diameter at End | Wall(2) Thickness | Centre-to- End Dimension A,B,C,M | Overall Length L | Overall Length E | Centre-to- Centre Dimension O | Back-to- Face Dimension K | Alignment at Ends U | Nominal Pipe SIze | Off Angle Q | Off Angle P |
| 1/2 TO 2-1/2 | +1/16 | ±1/32 | Not less than 87-1/2% of Normal Thickness | ±1/16 | ±1/16 | ±1/8 | ±1/4 | ±1/4 | ±1/32 | 12 to 4 | 1/32 | 1/16 |
| -1/32 | 5 to 8 | 1/16 | 1/8 | |||||||||
| 3 TO 3-1/2 | ±1/16 | ±1/16 | ±1/16 | ±1/16 | ±1/8 | ±1/4 | ±1/4 | ±1/32 | 10 to 12 | 3/32 | 3/16 | |
| 4 | ±1/16 | ±1/16 | ±1/16 | ±1/16 | ±1/8 | ±1/4 | ±1/4 | ±1/32 | 14 to 16 | 3/32 | 1/4 | |
| 5 TO 8 | +1/32 | ±1/16 | ±1/16 | ±1/16 | ±1/4 | ±1/4 | ±1/4 | ±1/32 | 18 to 24 | 1/8 | 3/8 | |
| -1/16 | ||||||||||||
| 10 TO 18 | +1/16 | ±1/8 | ±3/32 | ±3/32 | ±1/4 | ±3/8 | ±1/4 | ±1/16 | All dimensions are in inches | |||
| -1/8 | ||||||||||||
| 20 TO 24 | +1/4 | ±3/32 | ±3/32 | ±3/32 | ±1/4 | ±3/8 | ±1/4 | ±1/16 | ||||
| -3/32 | ||||||||||||
Hastelloy Buttweld Fittings from Heer Fittings offer exceptional corrosion resistance, especially in seawater and harsh environments. They are known for their high strength, durability, and resistance to pitting and crevice corrosion, ensuring long-lasting performance. We provide precise manufacturing, quality control, and reliable service for diverse industrial applications.
Yes, custom sizes for Hastelloy Buttweld Fittings are available at Heer Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@heerfittings.com.
Hastelloy buttweld fittings are extensively used in chemical processing, shipbuilding, power generation, pharmaceutical processing, and pollution control systems. These fittings are particularly suited for reactors, scrubbers, heat exchangers, and pipework subject to concentrated acids such as sulfuric, nitric, or hydrochloric acid. Their superior corrosion resistance and mechanical strength minimize maintenance frequency and enhance service life in severe operating environments. Consequently, Hastelloy fittings are typically chosen for safety-critical applications where material failure cannot be accepted and reliability is of ultimate importance.
Get in touch with one of our Technical Sales Representatives to request a quote or get answers to any questions you may have.
