Heer Fittings is a renowned manufacturer and supplier of lateral pipe fittings in Delhi, India, that provides precision-made components for industrial piping systems. These fittings branch off the main line at 45°, allowing for smoother flow transition and lower pressure drop than ordinary tees. ASME B16.9 standards manufactured, Heer Fittings offers laterals in a wide range of materials including stainless steel, carbon steel, alloy steel, and special alloys to suit a broad spectrum of industrial usage in petrochemical, power generation, and wastewater treatment plants.
Standard – ANSI/ASME :ASTM A403 / ASME SA403, ANSI B16.9, ASME B16.25, ASME B16.28, MSS SP-43.
DIN : DIN2605, DIN2615, DIN2616, DIN2617, DIN28011
EN : EN10253-1, EN10253-2
Schedule : SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS
Type : Seamless / ERW / Welded / Fabricated
Size: 1/2” TO 36”
Form: Lateral Tee, Butt weld Tee, Fitting Tee
Lateral fittings are made in a variety of materials with unique composition and mechanical properties. Stainless steel laterals usually incorporate chromium (18–20%) and nickel (8–12%) for corrosion resistance, while carbon steel types use iron with controlled carbon levels for toughness. Mechanical properties differ based on grade but tend to incorporate tensile strengths ranging from 415–620 MPa, yield strengths of approximately 205–450 MPa, and elongation of 20% or more. These fittings are manufactured using forging or butt-welding techniques to maximize durability, precision, and compatibility under high-pressure or corrosive conditions.
Heer Fittings is a leading supplier of Lateral in Delhi, India. We offer an extensive range of Collar, renowned for their excellent corrosion resistance and high strength, which makes them perfect for demanding industrial applications like chemical processing, marine environments, and high-temperature systems. With a commitment to quality and reliable delivery, we ensure our clients receive top-tier products tailored to meet the specific needs of various industries.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Choose Lateral from Heer Fittings for superior quality, exceptional corrosion resistance, and reliable performance in extreme conditions. We offer customized solutions backed by expert support and industry experience.
Yes, custom sizes for Lateral are available at Heer Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@heerfittings.com.

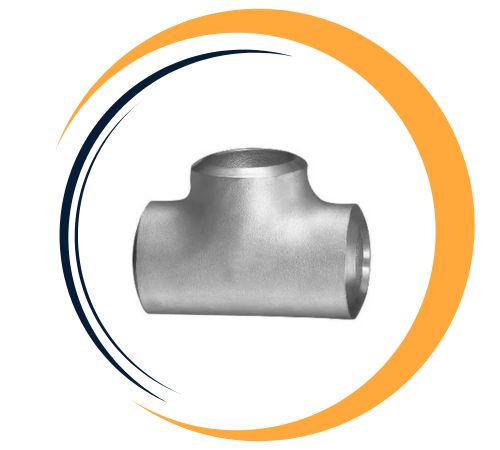

Stainless Steel Lateral Tee : ASTM A403 WP316/316L, ASTM A403 WP304/304L, ASTM A182 F316L, 304L, DIN 1.4301, DIN1.4306, DIN 1.4401, DIN 1.4404, 304H, 309, 310, 316, 316L, 317L, 321, 347, 904L

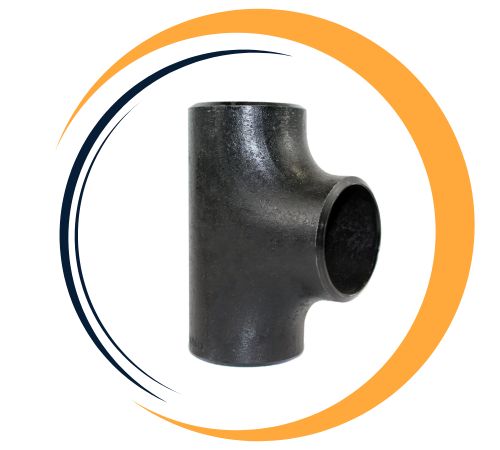

Carbon Steel Lateral Tee : ASTM A234, ASME SA234 WPB , WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70.

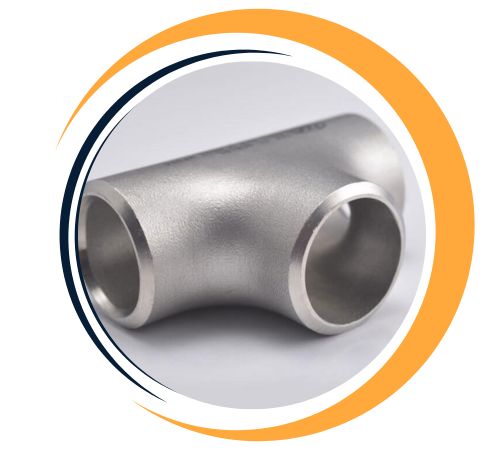

Alloy Steel Lateral Tee : ASTM A234, ASME SA234 WP1 / WP5 / WP9 / WP11 / WP22 / WP91

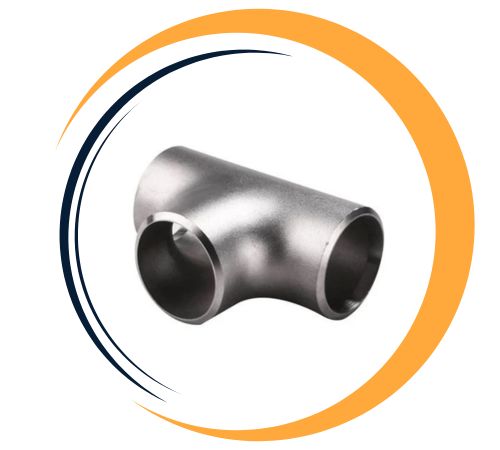

Duplex Steel Lateral Tee : ASTM A815, ASME SA815 UNS No S31803, S32205

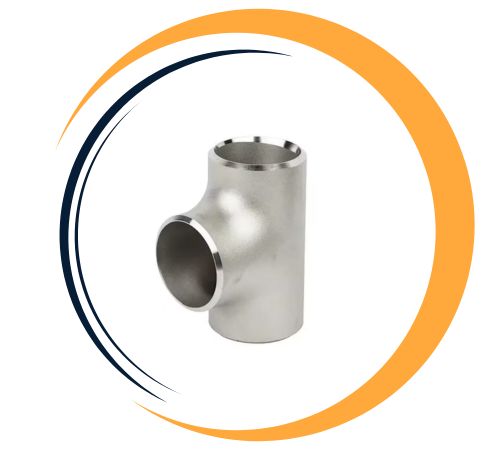

Super Duplex Lateral Tee : ASTM A815, ASME SA815 UNS No S32750, S32950
Nickel Alloy Lateral Tee : ASTM B336, ASME SB336, Nickel 200 (UNS No. No2200), Nickel 201 (UNS No. N02201), Monel 400 (UNS No. N04400), Monel 500 (UNS No. N05500), Inconel 800 (UNS No. N08800), Inconel 825 (UNS No. N08825), Inconel 600 (UNS No. N06600), Inconel 625 (UNS No. N06625), Inconel 601 (UNS No. N06601), Hastelloy C 276 (UNS No. N10276), Alloy 20 (UNS No. N08020), Titanium (Grade I & II), Cupro-Nickel 70/30, CuNi10Fe1Mn, CuNi30Mn1Fe.
Low Temperature Carbon Steel Lateral Tee : ASTM A420 WPL3, A420 WPL6
| Nominal PN (MPa) | DN | Thread D | Pipe Specification DH×s | L1 | L2 | L3 (Not less than) | L (Not less than) | R |
| 32.0 | 175 | M240×6 | 245×36 | 120 | 130 | 360 | 1095 | 735 |
| 200 | M265×6 | 273×40 | 130 | 140 | 390 | 1209 | 819 | |
| 225 | M320×6 | 325×50 | 175 | 185 | 525 | 1500 | 975 | |
| 250 | M350×6 | 355.6×55 | 195 | 205 | 580 | 1650 | 1070 | |
| 22.0 | 175 | M215×6 | 219×24 | 100 | 110 | 300 | 957 | 657 |
| 200 | M240×6 | 245×26 | 110 | 120 | 330 | 1065 | 735 | |
| 225 | M265×6 | 273×29 | 115 | 125 | 345 | 1164 | 819 | |
| 250 | M295×6 | 299×32 | 120 | 130 | 360 | 1257 | 897 |
Lateral pipe fittings find extensive applications in oil and gas, chemical processing industries, water treatment, and power generation, where effective flow distribution is of critical importance. They are particularly beneficial in systems where smooth diversion of flow at an angle is required to reduce turbulence and energy loss. These fittings assist in maximizing piping arrangements in limited areas and enhancing hydraulic efficiency in process piping systems. Their commonality in a large variety of sizes, wall thickness, and materials renders them a versatile as well as dependable alternative for intricate pipeline designs.
