Heer Fittings is a well-known producer and distributor of Stainless Steel 410 buttweld fittings, headquartered in Delhi, India. For years of experience and dedication to quality, Heer Fittings provides precision-engineered solutions for a range of industrial piping requirements. Our SS 410 buttweld fittings are produced using cutting-edge technology and high-quality raw materials to provide superior durability and performance. We serve various industries, with customized fittings conforming to national and international standards. Pioneering in timely delivery, competitive prices, and customer satisfaction, Heer Fittings has earned the reputation of a reliable name in stainless steel fitting solutions in India and internationally.
| Specifications | ASME SA403 / ASTM A403 |
|---|---|
| Dimension Standard | ASME/ANSI B16.9, MSS-SP-43/SP-79, ASME B16.28, ASME B16.25, ASME B16.49 |
| Standard Size Range | 1/2” NB TO 48” NB. (Fabricated, Seamless and 100% X-Ray Welded) |
| Manufacturing Type | Fabricated / Seamless / Welded / ERW |
| Bending Radius | R=1D, 2D, 3D, 5D, 6D, 8D, 10D, or Custom |
| Wall Thickness / Schedule | SCH5, SCH10, SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS / 3mm – 40mm |
| End Connection | Butt Weld |
| Melting Point | 1400-1450°C for (WP410) |
| Outside Diameter (OD) | Seamless / Buttweld Fitting ( 1/2″～48″), ERW / Welded / Fabricated Buttweld Fitting (1/2″～48″) |
| Value Added Services | Hot Dipped Galvanizing, Electro Polish, Sand Blasting, Epoxy & FBE Coating, Threading, Soldering |
| Other Standards | MSS SP-75, ISO, SNSI, JIS, DIN, GB, DIN2617, JISB2311, JISB2312, JISB2313 / T12459GB / T13401, SH3408, SH3409HG / T21635HG / T21631SY / T05010 |
| Material Test Certificates (MTC) | As per EN 10204 3.2 and EN 10204 3.1, Certifying NACE MR0175, NACE MR0103 |
| Materials | AISI 410 |
| Two Halve / Two Joint Buttweld Fittings Size | 6″ to 48″ |
| Manufacturing Specification | ASME: ANSI B16.9, ANSI B16.28, ASME B16.25, MSS-SP-43, DIN: DIN2605, DIN2615, DIN2616, DIN2617, DIN28011, EN: EN10253-1, EN10253-2 |
| A403 SS Seamless Fittings | Size: 15 NB to 300 NB | Sch.& Swg: Sch.5 to Sch.XXs |
| A403 SS Welded Fittings | Size: 15 NB to 600 NB | Sch.& Swg: Sch.5 to Sch.80s |
Stainless Steel 410 buttweld fittings mainly contain chromium (11.5–13.5%), carbon (up to 0.15%), and trace amounts of manganese, silicon, phosphorus, sulfur, and iron as the base component. The fittings exhibit a martensitic structure that provides high hardness and strength. Mechanical properties are a tensile strength of about 480 MPa, yield strength of 275 MPa, and about 20% elongation, offering good ductility. SS 410 also displays fair corrosion resistance and outstanding wear resistance. The alloy is heat-treatable and therefore offers a robust choice for mechanically stressful environments.
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | |
|---|---|---|---|---|---|---|---|---|---|---|
| 410 | min. | – | – | – | – | – | 11.5 | – | – | – |
| max. | 0.15 | 1.0 | 1.00 | 0.040 | 0.030 | 13.5 | – | 0.75 | – | |
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness | |
|---|---|---|---|---|---|
| Rockwell B (HR B) max | Brinell (HB) max | ||||
| 410 | 480 | 275 | 16 | 95 | 201 |
Heer Fittings is a leading supplier of Stainless Steel 410 Buttweld Fittings in Delhi, India. We offer an extensive range of Stainless Steel 410 Buttweld Fittings, renowned for their excellent corrosion resistance and high strength, which makes them perfect for demanding industrial applications like chemical processing, marine environments, and high-temperature systems. With a commitment to quality and reliable delivery, we ensure our clients receive top-tier products tailored to meet the specific needs of various industries.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| Grade | UNS No | Old British | Euronorm | Swedish SS | Japanese JIS | ||
|---|---|---|---|---|---|---|---|
| BS | En | No | Name | ||||
| 410 | S41000 | 410S21 | 56A | 1.4006 | X12Cr13 | 2302 | SUS 410 |
Stainless Steel 410 Buttweld Fittings from Heer Fittings offer exceptional corrosion resistance, especially in seawater and harsh environments. They are known for their high strength, durability, and resistance to pitting and crevice corrosion, ensuring long-lasting performance. We provide precise manufacturing, quality control, and reliable service for diverse industrial applications.

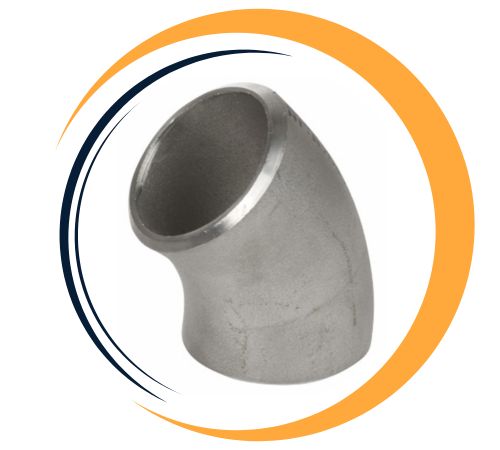

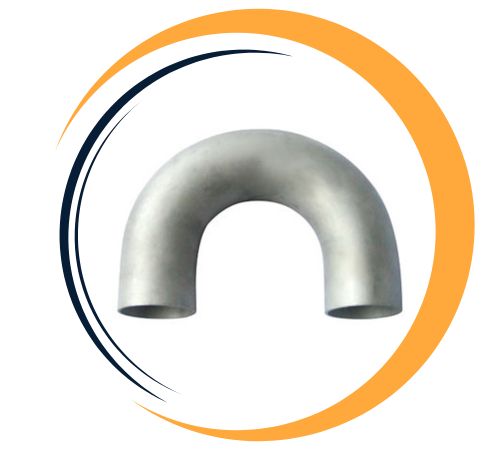

| Nominal Pipe Size (inches) | Outside Diameter | 45°Elbows | 90° Elbows | 180° Returns | ||||
|---|---|---|---|---|---|---|---|---|
| Long Radius | Long Radius | Short Radius | Long Radius | |||||
| (mm) | (inches) | Center to Face (inches) | Radius (inches) | Center to Face (inches) | Center to Face (inches) | Center to Center (inches) | Back to face (inches) | |
| 1 | 33.4 | 1.315 | 7/8 | 1 1/2 | 1 | 3 | 2 3/16 | |
| 1/2 | 21.3 | 0.840 | 5/8 | 1 1/2 | – | 2 | 1 7/8 | |
| 3/4 | 26.7 | 1.050 | 7/16 | 1 1/8 | – | 2 1/4 | 1 11/16 | |
| 1 1/4 | 42.2 | 1.660 | 1 | 1 7/8 | 1 1/4 | 3 3/4 | 2 3/4 | |
| 1 1/2 | 48.3 | 1.900 | 1 1/8 | 3 | 2 1/4 | 1 1/2 | 4 1/2 | 3 1/4 |
| 2 | 60.3 | 2.375 | 1 3/8 | 4 | 3 | 2 | 6 | 4 3/16 |
| 2 1/2 | 73.0 | 2.875 | 1 3/4 | 5 | 3 3/4 | 2 1/2 | 7 1/2 | 5 3/16 |
| 3 | 88.9 | 3.500 | 2 | 6 | 4 1/2 | 3 | 9 | 6 1/4 |
| 3 1/2 | 101.6 | 4.000 | 2 1/4 | 7 | 5 1/4 | 3 1/2 | 10 1/2 | 7 1/4 |
| 4 | 114.3 | 4.500 | 2 1/2 | 8 | 6 | 4 | 12 | 8 1/4 |
| 5 | 141.3 | 5.563 | 3 1/8 | 10 | 7 1/2 | 5 | 15 | 10 5/16 |
| 6 | 168.3 | 6.625 | 3 3/4 | 12 | 9 | 6 | 18 | 12 5/16 |
| 8 | 219.1 | 8.625 | 5 | 12 | 12 | 8 | 24 | 16 5/16 |
| 10 | 273.1 | 10.750 | 6 1/4 | 15 | 15 | 10 | 30 | 20 3/8 |
| 12 | 323.9 | 12.750 | 7 1/2 | 18 | 18 | 12 | 36 | 24 3/8 |
Yes, custom sizes for Stainless Steel 410 Buttweld Fittings are available at Heer Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@heerfittings.com.
Stainless Steel 410 buttweld fittings are extensively utilized in industries necessitating high strength, superior wear resistance, and fair corrosion resistance. Industries such as oil and gas, petrochemicals, power generation, automotive, and construction are among them. Typical uses include high-pressure piping, heat exchangers, steam turbines, valve parts, and mechanical fittings under higher temperature exposure. They are applied for structural and process plant purposes due to their strength to resist mechanical stress. SS 410 fittings also hold importance in marine and chemical processing industries where moderate resistance to corrosion along with mechanical strength is required, thus making them a good alternative for various engineering applications.
Get in touch with one of our Technical Sales Representatives to request a quote or get answers to any questions you may have.
