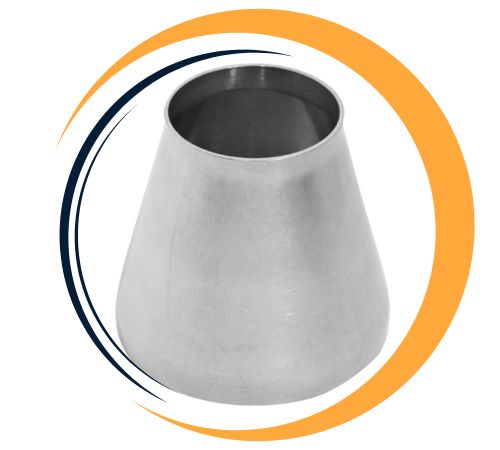

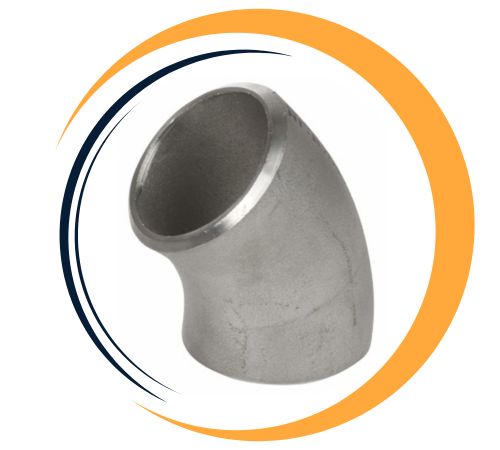

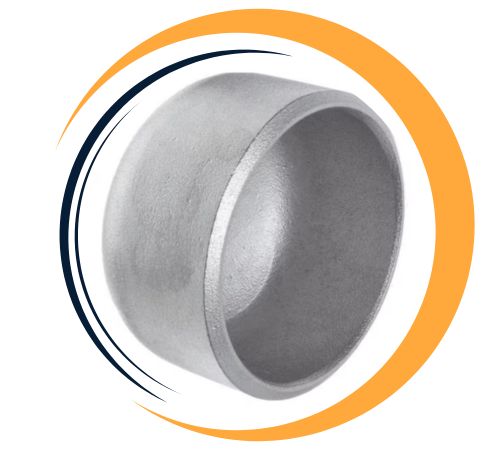

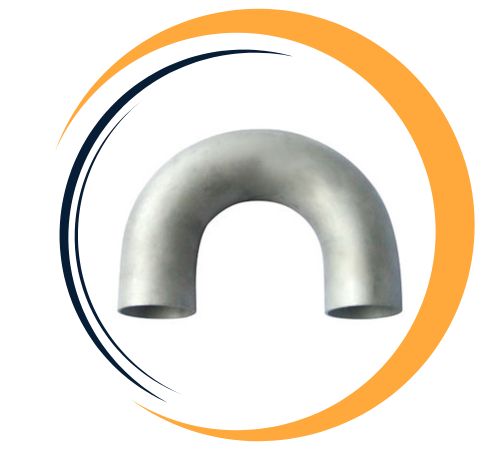

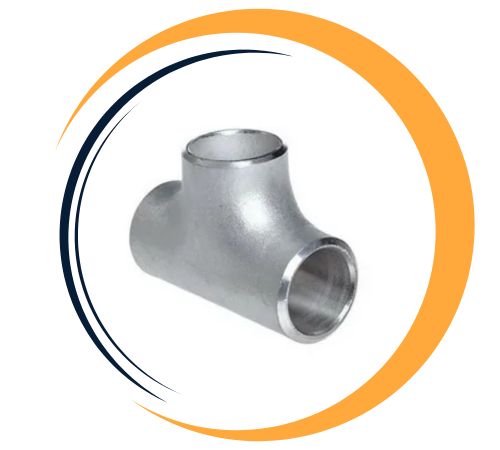

Heer Fittings, based in Delhi, India, has earned a solid reputation as a reliable manufacturer and supplier of Stainless Steel 304H Buttweld Fittings. These fittings are essential for industries that need high-temperature and high-strength piping solutions. With a focus on precision-engineered products like elbows, tees, reducers, and caps, Heer Fittings ensures that their offerings meet global standards, including ASTM A403. Renowned for their exceptional quality, corrosion resistance, and precise dimensions, these fittings find their place in power plants, refineries, petrochemical facilities, and chemical processing systems. Heer Fittings is well-regarded for their dependable delivery, consistent product performance, and outstanding customer service, both domestically and internationally.
Specifications : ASTM A403 / ASME SA403
Dimensions : ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10 ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799
Size : Seamless Butt Weld Fittings : 1/2″ – 10″ | Welded Butt Weld Fittings : 1/2″ – 48″
Schedule : SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75
Bending Radius : R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom
Type : Seamless / ERW / Welded / Fabricated
Thickness :20 Swg., 18 Swg., 16 Swg., 14 Swg., 12 Swg., 10 Swg., & Sch. 10, Sch. 40, Sch. 80 etc.
Stainless Steel 304H Buttweld Fittings are made up of chromium (18–20%), nickel (8–11%), and a higher carbon content (0.04–0.10%), which boosts their strength at high temperatures and improves creep resistance. These fittings boast a tensile strength of about 585 MPa and a yield strength of roughly 240 MPa. The increased carbon in the 304 grade allows 304H fittings to excel under thermal stress, maintaining their mechanical integrity in high-temperature applications while still offering excellent corrosion resistance and weldability.
| C | Mn | Si | P | S | Cr | Ni | N | |
|---|---|---|---|---|---|---|---|---|
| 304 | 0.07max | 2.0max | 0.75max | 0.045max | 0.03max | min: 18.0 max: 20.0 | min: 8.0 max: 10.5 | — |
| 304L | 0.03max | 2.0max | 0.75max | 0.045max | 0.03max | min: 18.0 max: 20.0 | min: 8.0 max: 12.0 | 0.10 max |
| 304H | min: 18.0 max:20.0 | min: 8.0 max: 10.5 | min: 0.04 max:0.10 | 0.75 max | 2.0 max | 0.045 max | 0.03 max | 0.10 max |
| Grade | Tensile Strength ksi (min) | Yield Strength 0.2% ksi (min) | Elongation % | Hardness (Brinell) MAX | Hardness (Rockwell B) MAX |
|---|---|---|---|---|---|
| 304 | 75 | 30 | 40 | 201 | 92 |
| 304L | 70 | 25 | 40 | 201 | 92 |
| 304H | 75 | 30 | 40 | 201 | 92 |
Heer Fittings is a leading supplier of Stainless Steel 304H Buttweld Fittings in Delhi, India. We offer an extensive range of Stainless Steel 304H Buttweld Fittings, renowned for their excellent corrosion resistance and high strength, which makes them perfect for demanding industrial applications like chemical processing, marine environments, and high-temperature systems. With a commitment to quality and reliable delivery, we ensure our clients receive top-tier products tailored to meet the specific needs of various industries.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| STANDARD | UNS | WNR. | AFNOR | EN | JIS | BS | GOST |
|---|---|---|---|---|---|---|---|
| SS 304 | S30400 | 1.4301 | Z7CN18‐09 | X5CrNi18-10 | SUS 304 | 304S31 | 08Х18Н10 |
| SS 304L | S30403 | 1.4306/1.4307 | Z3CN18‐10 | X2CrNi18-9 / X2CrNi19-11 | SUS 304L | 304S11 | 03Х18Н11 |
| SS 304H | S30409 | 1.4301 | – | – | – | – | – |
Stainless Steel 304H Buttweld Fittings from Heer Fittings offer exceptional corrosion resistance, especially in seawater and harsh environments. They are known for their high strength, durability, and resistance to pitting and crevice corrosion, ensuring long-lasting performance. We provide precise manufacturing, quality control, and reliable service for diverse industrial applications.
Stainless steel 304H Buttweld Fittings offer excellent mechanical properties, high thermal strength and corrosion resistance, making them ideal for critical operating conditions They maintain structural integrity at high temperatures, ensuring long life and performance in heat exchanger, power plant and chemical processing applications Their high carbon content resists creep increases, thereby reducing the risk of deformation over time. These components are easily welded, providing a secure, watertight connection. Additionally, 304H’s versatility and scaling resistance make it suitable for a wide range of applications, from petrochemical to food processing.
| SS 304/304L | ||||||
|---|---|---|---|---|---|---|
| Density lbm/in3 | Thermal Conductivity (BTU/h ft. °F) | Electrical Resistivity (in x 10-6) | Modulus of Elasticity (psi x 106 | Coefficient of Thermal Expansion (in/in)/ °F x 10-6 | Specific Heat (BTU/lb/ °F) | Melting Range (°F) |
| at 68°F: 0.285 | 9.4 at 212°F | 28.3 at 68°F | 28 | 9.4 at 32 – 212°F | 0.1200 at 68°F to 212°F | 2500 to 2590 |
| 12.4 at 932 °F | 39.4 at 752°F | 10.2 at 32 – 1000°F | ||||
| 49.6 at 1652 °F | 10.4 at 32 – 1500°F | |||||
| SS 304H | ||||||
| Denstiy lbm/in3 | Coefficient of Thermal Expansion (min/in)-°F | Thermal Conductivity BTU/hr-ft-°F | Specific Heat BTU/lbm -°F | Modules of Elasticity (annealed)2-psi | ||
| at 68 °F | at 68 – 212°F | at 68 – 1600°F | at 212°F | at 932°F | at 32 – 212°F | in tension (E) |
| 0.285 | 9.2 | 11.0 | 9.4 | 12.4 | 0.12 | 29 x 106 |
Yes, custom sizes for Stainless Steel 304H Buttweld Fittings are available at Heer Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@heerfittings.com.
These fittings are commonly used in high-temperature applications, including boilers, heat exchangers, pressure vessels, and furnace components. Industries such as oil and gas, power generation, and chemical processing depend on 304H fittings for their remarkable strength and thermal stability. They provide reliable, leak-proof connections in challenging environments, making them perfect for critical piping systems that face constant heat, pressure, and corrosive substances. Their sturdy design and long lifespan help minimize maintenance needs and ensure efficient operation.
Get in touch with one of our Technical Sales Representatives to request a quote or get answers to any questions you may have.
