Heer Fittings, a prominent manufacturer and supplier based in Delhi, India, specializes in high-quality Titanium Gr 5 Pipe Fittings that offer exceptional strength, corrosion resistance, and lightweight performance. Renowned for crafting precision-engineered elbows, tees, reducers, and caps, Heer Fittings guarantees that each fitting adheres to international standards for durability and reliability. These fittings are particularly well-suited for critical applications where a high strength-to-weight ratio and resistance to harsh environments are crucial. Trusted by sectors like aerospace, marine, petrochemical, and medical, Heer Fittings is dedicated to providing top-notch titanium-based piping solutions for high-performance systems.
Standard : ASTM B363 / ASME SB363
Dimensions : ASME/ANSI B16.9, ASME B16.28, MSS-SP-43
Size : 1/2″ to 24″ NB to 24″NB in
Thickness : Sch 5s, Sch 10s, Sch 40s, Sch 80s, Sch 160s, Sch XXS
Type : Seamless / Welded / Fabricated

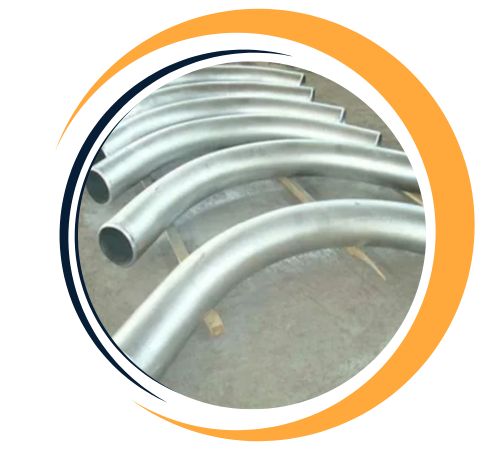

Bending Radius :R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom
| Grade | Ti | C | Fe | H | N | O | Al | V |
| Ti Grade5 | 90 min | – | 0.25 max | – | – | 0.2 max | 6 min | 4 min |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Titanium Gr 5 | 8.47 g/cm3 | 1413 °C (2580 °F) | Psi – 95,000 , MPa – 655 | Psi – 45,000 , MPa – 310 | 40 % |
| STANDARD | WERKSTOFF NR. | UNS |
| Titanium Gr. 5 | 3.7165 | N56400 |
The Titanium Gr 5 Pipe Fittings are crafted from the Ti-6Al-4V alloy, which is made up of about 90% titanium, 6% aluminum, and 4% vanadium. This unique blend delivers outstanding tensile strength (≥895 MPa), yield strength (≥828 MPa), and remarkable fatigue resistance. The alloy performs well even at elevated temperatures and boasts good weldability and toughness. Additionally, it is highly resistant to corrosion across a variety of environments, especially in seawater and oxidizing acids. These characteristics make Gr 5 fittings perfect for applications that require both high mechanical performance and corrosion resistance.
Heer Fittings is a leading supplier of Titanium Gr 5 Pipe Fittings in Delhi, India. We offer an extensive range of Monel 400 fittings, renowned for their excellent corrosion resistance and high strength, which makes them perfect for demanding industrial applications like chemical processing, marine environments, and high-temperature systems. With a commitment to quality and reliable delivery, we ensure our clients receive top-tier products tailored to meet the specific needs of various industries.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Titanium Gr 5 Pipe Fittings from Heer Fittings offer exceptional corrosion resistance, especially in seawater and harsh environments. They are known for their high strength, durability, and resistance to pitting and crevice corrosion, ensuring long-lasting performance. We provide precise manufacturing, quality control, and reliable service for diverse industrial applications.
Titanium Grade 5 (Ti-6Al-4V) pipe fittings offer numerous advantages, including exceptional strength-to-weight ratio, which makes them ideal for demanding applications where lightweight yet durable materials are required. They exhibit outstanding corrosion resistance, especially in aggressive environments such as seawater, acids, and high-temperature conditions. Titanium Grade 5 fittings also offer high fatigue strength, excellent weldability, and resistance to wear and creep. These properties make them perfect for aerospace, marine, and chemical industries. Additionally, their long lifespan and low maintenance requirements contribute to cost savings over time.

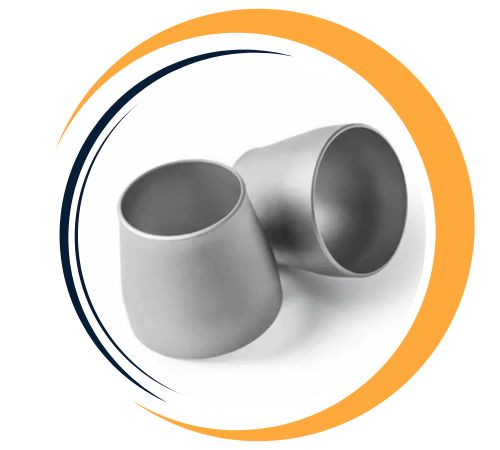

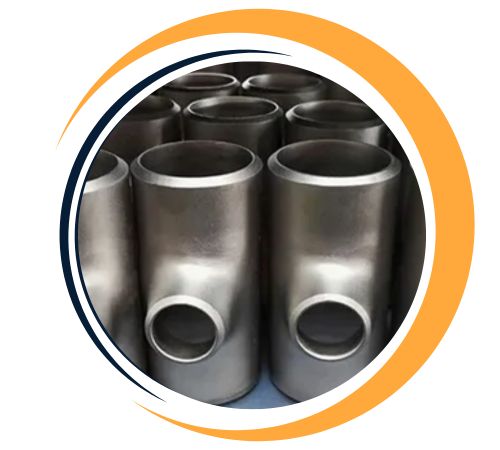

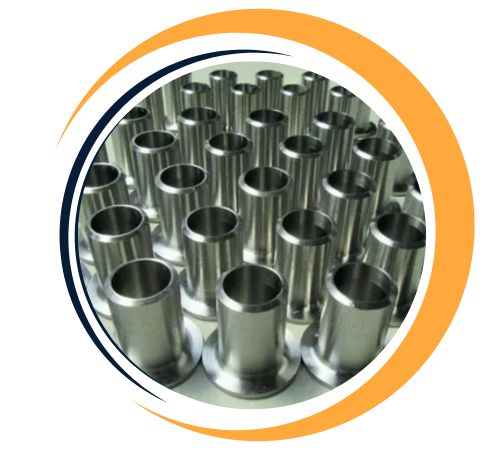

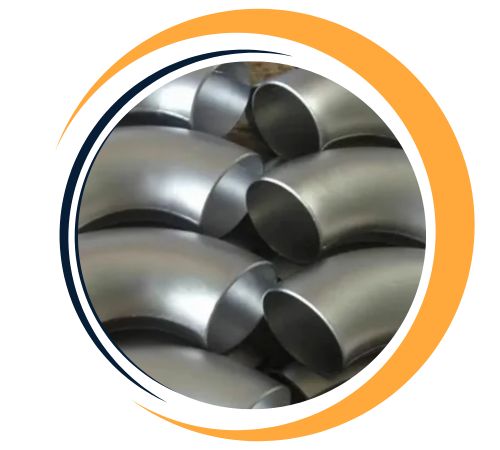

| ASME B16.9 | Factory-Made Wrought Buttwelding Fittings | GR5 Titanium Alloy Long Radius Elbows, Long Radius Reducing Elbows, Titanium Gr5 Long Radius Returns, Titanium Alloy Gr5 Short Radius Elbows, Titanium Gr 5 Short Radius 180-deg Rerurns, Titanium Gr 5 3D elbows, Straight Tees, Straight Crosses, Reducing Outlet Tees, Reducing Outlet Crosses, Titanium Gr 5 Lap Joint Stub Ends, Titanium Gr 5 Caps, Reducers |
| ASME B16.28 | Gr5 Titanium Alloy Short Radius Elbows, Titanium Gr 5 Short Radius 180-deg Returns | |
| MSS SP43 | Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications | Titanium Gr 5 Long Radius Elbows, Straight and Reducing-on-the-Outlet Tees, Lap Joint Stub ends, Gr5 Titanium Gr 5 caps, long radius 180 Degree returns, concentric reducers, eccentric reducers |
| Mss SP75 | Titanium Gr 5 Long Radius Elbows, 3R elbows, straight tees, reducing outlet tees, caps, Gr5 Titanium Alloy reducers |
Yes, custom sizes for Titanium Gr 5 Pipe Fittings are available at Heer Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@heerfittings.com.
Titanium Gr 5 Pipe Fittings find extensive use in industries that require advanced materials for extreme conditions. In the aerospace sector, they are ideal for hydraulic systems, fuel lines, and structural components due to their lightweight and robust nature. The marine and offshore industries rely on them for their resistance to saltwater corrosion. They are also well-suited for chemical processing, high-performance automotive systems, and biomedical devices. Thanks to their biocompatibility, Gr 5 fittings are increasingly utilized in surgical implants and medical instruments, ensuring reliable and safe operation in both industrial and medical settings.
Get in touch with one of our Technical Sales Representatives to request a quote or get answers to any questions you may have.
