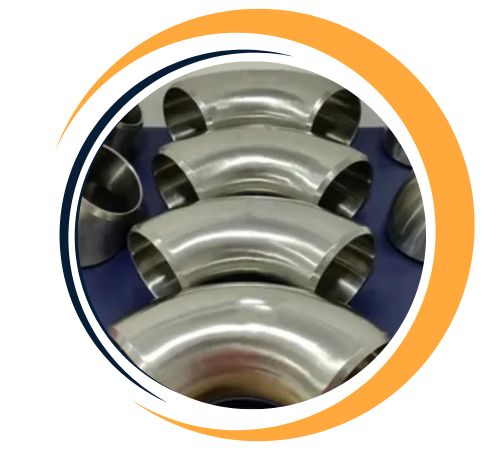

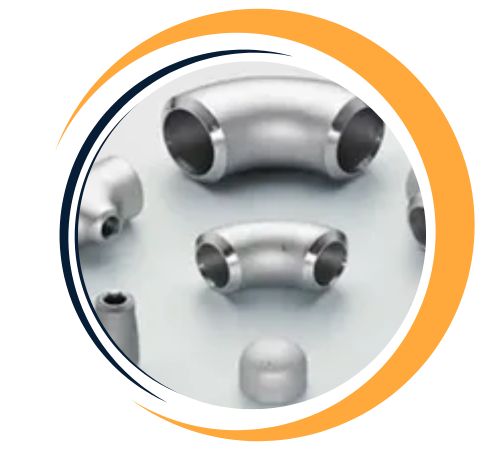

Heer Fittings is a reliable manufacturer and supplier of Alloy 20 Buttweld Fittings in Delhi, India, which provides corrosion-resistant solutions intended for highly acidic and chlorides-containing conditions. The fittings—produced in forms like elbows, tees, reducers, crosses, and caps—come in accordance with ASTM B366 and ASME B16.9 standards. Alloy 20, or Carpenter 20 and UNS N08020, is a nickel-iron-chromium austenitic alloy designed for enhanced resistance to sulfuric acid and other hostile chemicals. Heer Fittings provides precision-fabricated goods renowned for strength, weldability, and sustained performance in critical processing systems.
| 20 Pipe Fittings Specifications | ASTM B366/ ASME SB366 |
|---|---|
| Alloy 20 Pipe Fittings size | 20 Seamless Butt Weld Fittings : 1/2″ – 10″ 20 Welded Butt Weld Fittings : 1/2″ – 48″ |
| Alloy 20 Pipe Fittings Dimensions | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10 |
| Alloy 20 Buttweld Fittings Thickness | SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75 |
| 20 Buttweld Pipe FittingsType | DN15-DN1200 |
| ASTM B366 20 Buttweld Fitting Connection | Welding |
| Bending Radius | R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom ASTM B366 Alloy 20 Pipe Fitting |
| Size Range | ½” NB to 24″ NB in Sch 10s, 40s, 80s, 160s, XXS. (DN6~DN100) ASTM B366 20 Buttweld Fitting |
| ASTM B366 20 Buttweld Fittings Manufacturing process | Push, Press, Forge, Cast, etc. |
| Alloy 20 Buttweld Pipe Fittings Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| SA 366 20 Pipe Fittings Origin & Mills | Japanese, Indian, USA, Korean, European, Ukraine, Russian |
| Specialized manufacturer of | Alloy UNS N08020, 90º Elbows, 45º Elbows, Tees, Cross, Reducer, Pipe Cap, Stub End, Pipe Bend |
The chemical makeup of Alloy 20 consists of about 32–38% nickel, 19–21% chromium, 2–3% molybdenum, 3–4% copper, and niobium for intergranular corrosion stabilization. These fittings have a tensile strength of approximately 620 MPa, yield strength of 275 MPa, and good ductility with elongation of about 30–40%. The alloy is resistant to pitting, crevice corrosion, and stress corrosion cracking, particularly in hot concentrated acid and chloride environments. Its austenitic character provides good mechanical properties and good weldability without danger of sensitization.
| Grade | C | Mn | Si | S | Cu | Ni | Cr | Fe | Mo | P |
| Alloy 20 | 0.07 max | 2.00 max | 1.00 max | 0.035 max | 3.00 – 4.00 | 32.00 – 38.00 | 19.00 – 21.00 | 29.85 min* | 2.00 – 3.00 | 0.045 max |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Alloy 20 | 8.1 g/cm3 | 1443 °C (2430 °F) | Psi -80,000, MPa -551 | Psi – 35,000, MPa – 241 | 30 % |
Heer Fittings is a leading supplier of Alloy 20 Buttweld Fittings in Delhi, India. We offer an extensive range of Monel 400 fittings, renowned for their excellent corrosion resistance and high strength, which makes them perfect for demanding industrial applications like chemical processing, marine environments, and high-temperature systems. With a commitment to quality and reliable delivery, we ensure our clients receive top-tier products tailored to meet the specific needs of various industries.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| STANDARD | WERKSTOFF NR. | UNS | EN | AFNOR |
| Alloy 20 | 2.4660 | N08020 | NiCr20CuMo | Z2NCUD31-20AZ |
Alloy 20 Buttweld Fittings from Heer Fittings offer exceptional corrosion resistance, especially in seawater and harsh environments. They are known for their high strength, durability, and resistance to pitting and crevice corrosion, ensuring long-lasting performance. We provide precise manufacturing, quality control, and reliable service for diverse industrial applications.
| Standard Code | Standard Name |
| ANSI ASME SA-366 | Forged Durimet pipe fittings |
| ANSI ASME B16.9 | Factory-Made wrought steel pipe fittings |
| ANSI ASME B16.28 | Wrought steel butt-welding short radius elbows and returns |
| ISO 5251 | Alloy butt-welding fittings |
| MSS SP-43 | Wrought Alloy butt-welding fittings |
| MSS SP-75 | Forging butt-welding fittings |
| German Steel Pipe Fittings Standard | |
| DIN 2605 | Steel butt-welding pipe fittings.elbows and bends |
| DIN 2615 | Steel butt-welding pipe fittings.tees |
| DIN 2616 | Steel butt-welding pipe fittings.reducers |
| DIN 2617 | Steel butt-welding pipe fittings.caps |
| Japanese Steel Pipe Fittings Standard | |
| JIS B2311 | Universal steel butt-welding pipe fittings |
| JIS B2312 | Steel butt-welding pipe fittings |
| JIS B2313 | Steel plate butt-welding pipe fittings |
| Other Steel Pipe Fittings Standard | |
| EN 1025 | 3 Butt-welding pipe fittings |
Yes, custom sizes for Alloy 20 Buttweld Fittings are available at Heer Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@heerfittings.com.
Alloy 20 Buttweld Fittings find extensive application in chemical processing, pharmaceutical production, food and beverage processing, marine technology, and power generation equipment. The fittings are well-suited for exposure to sulfuric, nitric, and phosphoric acids and chloride-rich solutions where normal stainless steels can fail. Alloy 20, with superior corrosion resistance, mechanical properties, and formability, is the first choice for piping systems demanding consistent reliability under highly corrosive and demanding industrial conditions.
