In Delhi, India, Heer Fittings is a well-known producer and supplier of Alloy 20 Forged Fittings, providing corrosion-resistant solutions especially made for the chemical and pharmaceutical industries. The nickel-iron-chromium alloy Alloy 20 is very effective against aggressive media like sulphuric acid. Heer Fittings offers an extensive selection of precisely engineered forged elbows, tees, couplings, and plugs that satisfy ASTM and ASME requirements. The business is renowned for its client-focused service, rapid turnaround, and constant quality. These fittings are perfect for demanding industrial settings because of their remarkable resistance to pitting and chloride stress corrosion.
| Forged Fittings Specifications | ASTM B462/ ASME SB462 |
|---|---|
| Alloy 20 Forged Fittings size | 1/8” NB to 4” NB (Socketweld & Screwed-Threaded) |
| Alloy 20 Forged Fittings Dimensions | ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799 |
| Alloy 20 Forged Fittings Types | Socketweld Fittings, Screwed-Threaded Fittings |
| ASTM B462 Alloy 20 Forged Fittings Pressure Rating | Threaded End-2000lb/ 3000lb/ 6000lbs Socket-weld End-3000/ 6000/ 9000lbs |
| Alloy 20 Forged Fittings Thread | NPT, BSPT, BSPP |
| Alloy 20 Forged Fittings Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Nickel Alloy 20 Forged Fittings Origin & Mills | Japanese, Indian, USA, Korean, European, Ukraine, Russian |
| Specialized manufacturer of | 90º Elbows, 45º Elbows, Tees, Cross, Couplings, Reducers, Inserts, Caps, Nipples, and Unions, Forged Pipe Fittings, Socket Weld & Threaded, Equal Tees & Reducing Tees, 90° & 45° Elbows, Plugs |
Nickel (32–38%), chromium (19–21%), iron, copper (3–4%), and molybdenum make up Alloy 20 Forged Fittings. With a tensile strength of about 620 MPa and a yield strength of about 275 MPa, these fittings have exceptional mechanical strength. Superior resistance to intergranular corrosion, sulphuric acid, and chlorides is provided by alloy 20. Their mechanical stability, toughness, and grain uniformity are all enhanced by forging. These fittings, which adhere to ASTM B462 standards, continue to function at both room temperature and higher temperatures. They are perfect for demanding chemical process environments because of their strength, resistance to corrosion, and weldability.
| Grade | C | Mn | Si | S | Cu | Ni | Cr | Fe | Mo | P |
| Alloy 20 | 0.07 max | 2.00 max | 1.00 max | 0.035 max | 3.00 – 4.00 | 32.00 – 38.00 | 19.00 – 21.00 | 29.85 min* | 2.00 – 3.00 | 0.045 max |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Alloy 20 | 8.1 g/cm3 | 1443 °C (2430 °F) | Psi -80,000, MPa -551 | Psi – 35,000, MPa – 241 | 30 % |
Heer Fittings is a leading supplier of Alloy 20 Forged Fittings in Delhi, India. We offer an extensive range of Monel 400 fittings, renowned for their excellent corrosion resistance and high strength, which makes them perfect for demanding industrial applications like chemical processing, marine environments, and high-temperature systems. With a commitment to quality and reliable delivery, we ensure our clients receive top-tier products tailored to meet the specific needs of various industries.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| STANDARD | WERKSTOFF NR. | UNS | EN | AFNOR |
| Alloy 20 | 2.4660 | N08020 | NiCr20CuMo | Z2NCUD31-20AZ |
Alloy 20 Forged Fittings from Heer Fittings offer exceptional corrosion resistance, especially in seawater and harsh environments. They are known for their high strength, durability, and resistance to pitting and crevice corrosion, ensuring long-lasting performance. We provide precise manufacturing, quality control, and reliable service for diverse industrial applications.
| ASTM B462 / B462M | Forged Fittings and valves and parts for high temperature service. Standard Specification for Wrought Austenitic Alloy 20 Forged Fittings |
| BS21 | Threading. |
| BS3799 | Specification for Steel pipe fittings, screwed and Socket-welding for the petroleum industry |
| ANSI B16.11 | Forged steel fittings socket-welding and threaded. Socket Welding and Threaded Forged Fittings |
| ANSI/ASME B1.20.1 | Pipe threads, general purpose (inch). |
| ISO 4144 | Alloy 20 fittings threaded to ISO 7-1. |
| MSS SP-95 | Swage(d) Nipples and Bull Plugs |
| Products | Size | |
|---|---|---|
| ASTM B462 Alloy 20 90° Elbow | ASTM B462 Alloy 20 45° Elbow | Sizes 1/8″– 4″ Pressure Ratings – 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS |
| ASTM B462 Alloy 20 Forged Tee | ASTM B462 Alloy 20 Union | |

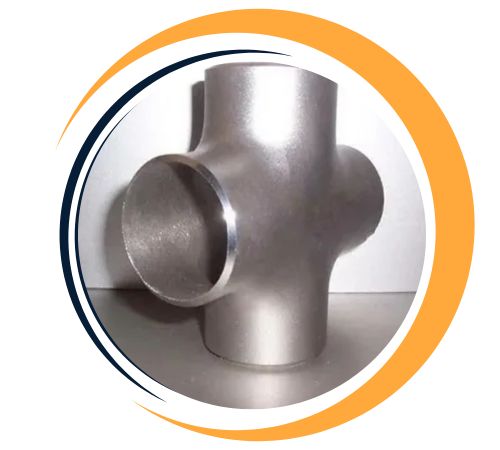

| ASTM B462 Alloy 20 Forged Cross | ASTM B462 Alloy 20 Insert | |
| ASTM B462 Alloy 20 Screwed Bushing | ASTM B462 Alloy 20 Threaded Pipe Nipple | |
| ASTM B462 Alloy 20 Forged Socket weld Cap | ASTM B462 Alloy 20 Screwed Coupling | |
| ASTM B462 Alloy 20 Forged Plug | ASTM B462 Alloy 20 Street Elbow | |
Yes, custom sizes for Alloy 20 Forged Fittings are available at Heer Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@heerfittings.co.in
The petrochemical, food processing, pharmaceutical, and chemical industries all make extensive use of Alloy 20 Forged Fittings. These fittings are perfect for use in storage tanks, heat exchangers, reactors, and piping systems handling acidic or chloride-containing fluids because of their well-known resistance to sulphuric acid. They are appropriate for both oxidising and reducing environments due to their strength and resistance to corrosion. Flue gas scrubbers, pickling equipment and pollution control equipment also use these fittings. In demanding, corrosive service environments where conventional stainless steels may fail, alloy 20 forged components guarantee long-term performance and operational safety.
Get in touch with one of our Technical Sales Representatives to request a quote or get answers to any questions you may have.
