Stainless Steel 321 / 321H Buttweld Fittings

Heer Fittings is a prominent manufacturer and supplier of Stainless Steel 321 / 321H Buttweld Fittings, situated in Delhi, India. These stainless steels stabilized with titanium are for high-temperature uses and show maximum resistance to corrosion after welding. SS 321 is suited for general high-temperature applications, whereas 321H, containing more carbon, is fit for elevated creep resistance. At Heer Fittings, our buttweld fittings are designed and manufactured with precision to international standards to ensure their reliability and durability in harsh environments. We cater to industries such as petrochemical, thermal processing, power generation, and aerospace, providing reliable solutions to India and overseas markets.

Stainless Steel 321 Pipe Elbow In India, Stainless Steel 321H Pipe Fittings United kingdom, SS 321 Buttweld Elbow Delhi, Stainless Steel S32100 Seamless Fittings Exporter Delhi, Stainless Steel 1.4541 Butt Weld Pipe Fittings in India, Stainless Steel 321H Two Joint Pipe Fittings Delhi, 321 Stainless Steel Welded Fittings Manufacturers in India, Stainless Steel 321H Buttweld Fittings In India, ASTM A403 WP3 321 Stainless Steel Buttweld Fittings Supplier in Delhi, India.

Stainless Steel 321 / 321H Buttweld Fittings Specification

Specifications	ASME SA403 / ASTM A403
Dimension Standard	ASME/ANSI B16.9, MSS-SP-43/SP-79, ASME B16.28, ASME B16.25, ASME B16.49
Standard Size Range	1/2” NB TO 48” NB. (Fabricated, Seamless and 100% X-Ray Welded)
Manufacturing Type	Fabricated / Seamless / Welded / ERW
Bending Radius	R=1D, 2D, 3D, 5D, 6D, 8D, 10D, or Custom
Wall Thickness / Schedule	SCH5, SCH10, SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS / 3mm – 40mm
End Connection	Butt Weld
Melting Point	1400-1450°C for (WP321)
Outside Diameter (OD)	Seamless / Buttweld Fitting ( 1/2″～48″), ERW / Welded / Fabricated Buttweld Fitting (1/2″～48″)
Value Added Services	Hot Dipped Galvanizing, Electro Polish, Sand Blasting, Epoxy & FBE Coating, Threading, Soldering
Other Standards	MSS SP-75, ISO, SNSI, JIS, DIN, GB, DIN2617, JISB2311, JISB2312, JISB2313 / T12459GB / T13401, SH3408, SH3409HG / T21635HG / T21631SY / T05010
Material Test Certificates (MTC)	As per EN 10204 3.2 and EN 10204 3.1, Certifying NACE MR0175, NACE MR0103
Materials	AISI 321
Two Halve / Two Joint Buttweld Fittings Size	6″ to 48″
Manufacturing Specification	ASME: ANSI B16.9, ANSI B16.28, ASME B16.25, MSS-SP-43, DIN: DIN2605, DIN2615, DIN2616, DIN2617, DIN28011, EN: EN10253-1, EN10253-2
A403 SS Seamless Fittings	Size: 15 NB to 300 NB \| Sch.& Swg: Sch.5 to Sch.XXs
A403 SS Welded Fittings	Size: 15 NB to 600 NB \| Sch.& Swg: Sch.5 to Sch.80s

321 / 321H Stainless Steel Buttweld Fittings consist of chromium (17–19%), nickel (9–12%), and titanium (at least 5 times the percentage of carbon). SS 321H has higher carbon (0.04–0.10%) for enhanced high-temperature strength and creep resistance. These alloys exhibit a tensile strength of about 515 MPa, yield strength of 205 MPa, and elongation of about 40%. Both grades exhibit excellent resistance to oxidation and scaling at high temperatures up to 900°C. The titanium stabilization avoids carbide precipitation on welding, maintaining corrosion resistance and structural integrity in high-heat applications.

Stainless Steel 321 / 321H Buttweld Fittings Chemical Composition

Grade	C	Mn	Si	P	S	Cr	N	Ni	Ti
SS 321	0.08 max	2.0 max	1.0 max	0.045 max	0.030 max	17.00 – 19.00	0.10 max	9.00 – 12.00	5(C+N) – 0.70 max
SS 321H	0.04 – 0.10	2.0 max	1.0 max	0.045 max	0.030 max	17.00 – 19.00	0.10 max	9.00 – 12.00	4(C+N) – 0.70 max

Stainless Steel 321 / 321H Buttweld Fittings Mechanical Properties

Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
8.0 g/cm3	1457 °C (2650 °F)	Psi – 75000 , MPa – 515	Psi – 30000 , MPa – 205	35 %

ASTM A403 Stainless Steel 321 Buttweld Fittings Cross in India, Stainless Steel 1.4449 Buttweld Pipe Fittings United kingdom, SS 321H Butt Weld Pipe Cap Delhi, Stainless Steel 321 Eccentric Reducer Delhi, Stainless Steel 321H Equal Tee India, 321 Stainless Steel Reducer in Delhi, Stainless Steel 321H SR Elbow Exporter in India,

Largest Stainless Steel 321 / 321H Buttweld Fittings Supplier in Delhi, India

Heer Fittings is a leading supplier of Stainless Steel 321 Buttweld Fittings in Delhi, India. We offer an extensive range of Stainless Steel 321H Buttweld Fittings, renowned for their excellent corrosion resistance and high strength, which makes them perfect for demanding industrial applications like chemical processing, marine environments, and high-temperature systems. With a commitment to quality and reliable delivery, we ensure our clients receive top-tier products tailored to meet the specific needs of various industries.

We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.

If You Are Looking To Buy High Quality

Stainless Steel 321 / 321H Buttweld Fittings Equivalent Grade

STANDARD	WERKSTOFF NR.	UNS	JIS	EN
SS 321	1.4541	S32100	SUS 321	X6CrNiTi18-10
SS 321H	1.4878	S32109	SUS 321H	X12CrNiTi18-9

Why Choose Stainless Steel 321 / 321H Buttweld Fittings from Heer Fittings?

Stainless Steel 321 Buttweld Fittings from Heer Fittings offer exceptional corrosion resistance, especially in seawater and harsh environments. They are known for their high strength, durability, and resistance to pitting and crevice corrosion, ensuring long-lasting performance. We provide precise manufacturing, quality control, and reliable service for diverse industrial applications.

UNS S32109 Stub End Uk, ANSI B16.9 Stainless Steel 321 Pipe Fittings United kingdom, Stainless Steel 321H Pipe Bend Stockist in Delhi, Stainless Steel 321 Pipe Nipple Manufacturer & Exporter in Delhi, Stainless Steel 1.4878 Butt Weld Pipe Fittings in India, Stainless Steel 321H Pipe Two Joint Pipe Fittings Delhi, 321 Stainless Steel Pipe Welded Fittings Manufacturers in India, Stainless Steel 321 Pipe Butt weld Fittings In India, ASTM A403 Stainless Steel 321H Pipe Butt Weld Fittings Supplier in Delhi, India.

Customer Support

Largest Inventory

On Time Deliveries

ISO Certified

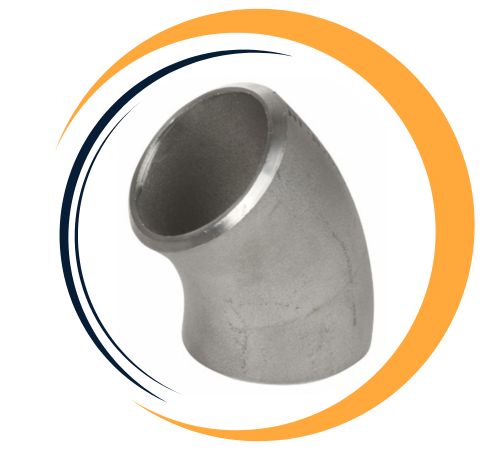

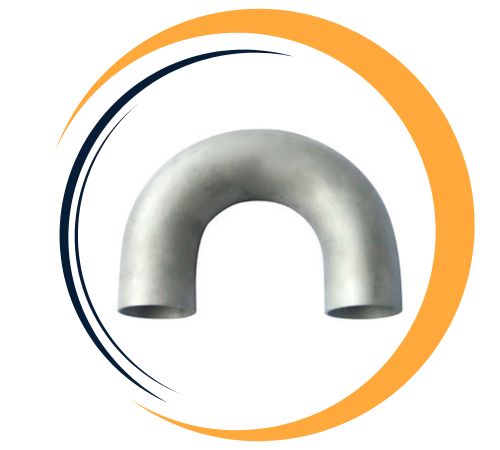

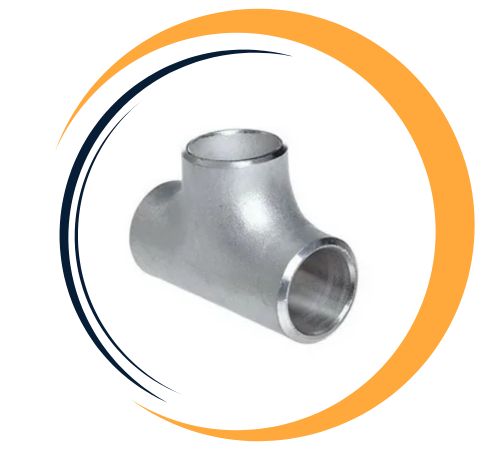

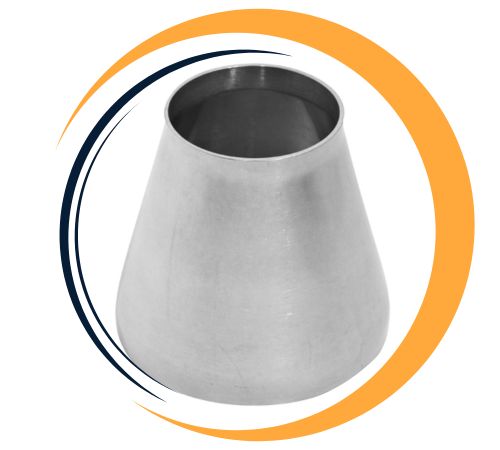

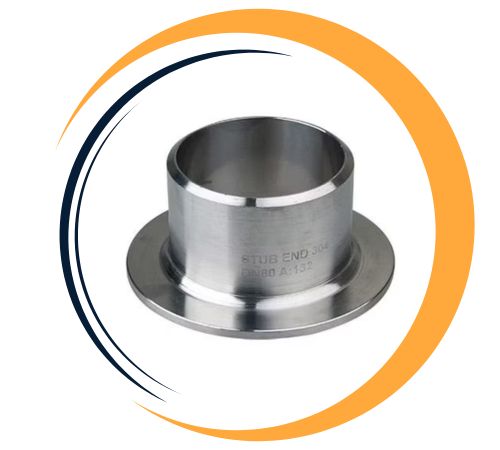

Types of Stainless Steel 321 / 321H Buttweld Fittings

Stainless Steel 321 / 321H Buttweld Fittings Dimensions Chart

Nominal Pipe Size (inches)	Outside Diameter		45°Elbows		90° Elbows		180° Returns
	Outside Diameter		Long Radius		Long Radius	Short Radius	Long Radius
	(mm)	(inches)	Center to Face (inches)	Radius (inches)	Center to Face (inches)	Center to Face (inches)	Center to Center (inches)	Back to face (inches)
1	33.4	1.315	7/8		1 1/2	1	3	2 3/16
1/2	21.3	0.840	5/8		1 1/2	–	2	1 7/8
3/4	26.7	1.050	7/16		1 1/8	–	2 1/4	1 11/16
1 1/4	42.2	1.660	1		1 7/8	1 1/4	3 3/4	2 3/4
1 1/2	48.3	1.900	1 1/8	3	2 1/4	1 1/2	4 1/2	3 1/4
2	60.3	2.375	1 3/8	4	3	2	6	4 3/16
2 1/2	73.0	2.875	1 3/4	5	3 3/4	2 1/2	7 1/2	5 3/16
3	88.9	3.500	2	6	4 1/2	3	9	6 1/4
3 1/2	101.6	4.000	2 1/4	7	5 1/4	3 1/2	10 1/2	7 1/4
4	114.3	4.500	2 1/2	8	6	4	12	8 1/4
5	141.3	5.563	3 1/8	10	7 1/2	5	15	10 5/16
6	168.3	6.625	3 3/4	12	9	6	18	12 5/16
8	219.1	8.625	5	12	12	8	24	16 5/16
10	273.1	10.750	6 1/4	15	15	10	30	20 3/8
12	323.9	12.750	7 1/2	18	18	12	36	24 3/8

Are Custom Sizes Available for Stainless Steel 321 / 321H Buttweld Fittings?

Yes, custom sizes for Stainless Steel 321 / 321H Buttweld Fittings are available at Heer Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@heerfittings.com.

ASTM A403 Stainless Steel 321 Butt Weld Cross in India, Stainless Steel 1.4878 Buttweld Pipe Fittings United kingdom, SS 321H Butt Weld Pipe Cap Delhi, Stainless Steel 321 Eccentric Reducer Delhi, Stainless Steel 321H Equal Tee India, 321 Stainless Steel Reducer in Delhi, SS 321H SR Elbow Exporter in India,

Application Industry of Stainless Steel 321 / 321H Buttweld Fittings

321 / 321H Stainless Steel Buttweld Fittings are extensively employed in applications where intergranular corrosion resistance and high-temperature strength are critical. Uses are as follows: heat exchangers, parts of furnaces, superheater tubes, exhaust systems, refinery equipment. In power plants and thermal processing plants, 321H is utilized for its greater creep strength under prolonged service. These fittings also exist in chemical processing, aerospace, and marine conditions where exposure to heat and corrosive media is prevalent. They are such that their great weldability and oxidation resistance make them well adapted for welded piping systems repeatedly subjected to thermal cycling and high operating temperatures.
