Heer Fittings is a trusted factory and exporter of straight tees, located in Delhi, India, and providing high-quality forged fittings suitable for complex piping systems. Our straight tees are designed for power, precision, and strength, ensuring fine flow distribution and leak-tight connections. Made of high-quality materials like stainless steel, carbon steel, alloy steel, and titanium, our tees meet global standards and are ideal for high-temperature and high-pressure applications. Ensuring strict quality checks and adhering to excellence, Heer Fittings provides reliable solutions to diverse industries.
Standard – ANSI/ASME :ASTM A403 / ASME SA403, ANSI B16.9, ASME B16.25, ASME B16.28, MSS SP-43.
DIN : DIN2605, DIN2615, DIN2616, DIN2617, DIN28011
EN : EN10253-1, EN10253-2
Schedule : SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS
Type : Seamless / ERW / Welded / Fabricated
Size: 1/2″ to 36″
Form: Butt weld Straight Tees, Fitting Butt weld Straight Crosses
Straight tees are T-shaped pipe fittings with three openings—two aligned and one at a 90-degree angle—used to divide or combine fluids or gases in a piping system. They are usually manufactured using materials such as stainless steel, carbon steel, or titanium, depending on the intended use. Straight tees have durable mechanical properties like high tensile strength, corrosion resistance, and pressure tolerance. Straight tees, which come in socket weld, threaded, and buttweld forms, are critical pipeline components used for smooth bending and even distribution of flow in pipelines, particularly in industrial and process piping networks.

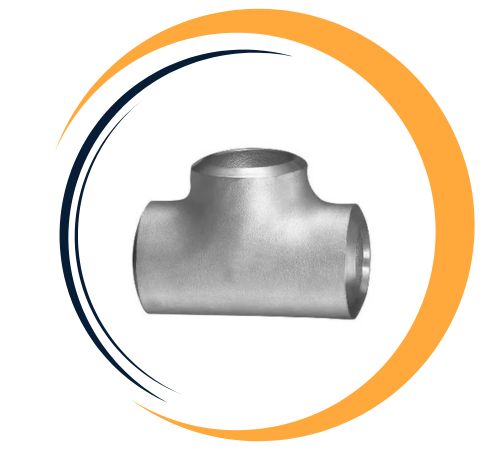

Stainless Steel Butt weld Straight Tees & Crosses: ASTM A403 WP316/316L, ASTM A403 WP304/304L, ASTM A182 F316L, 304L, DIN 1.4301, DIN1.4306, DIN 1.4401, DIN 1.4404, 304H, 309, 310, 316, 316L, 317L, 321, 347, 904L

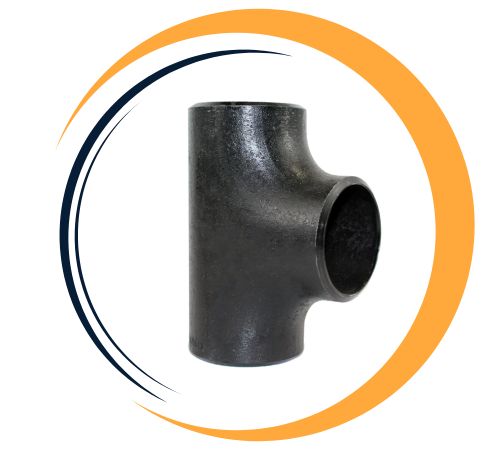

Carbon Steel Butt weld Straight Tees & Crosses : ASTM A234, ASME SA234 WPB , WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70.

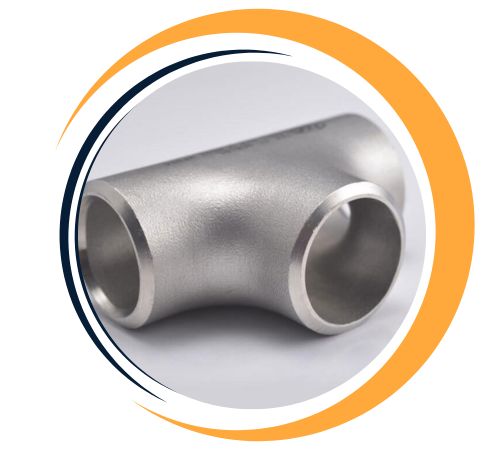

Alloy Steel Butt weld Straight Tees & Crosses : ASTM A234, ASME SA234 WP1 / WP5 / WP9 / WP11 / WP22 / WP91

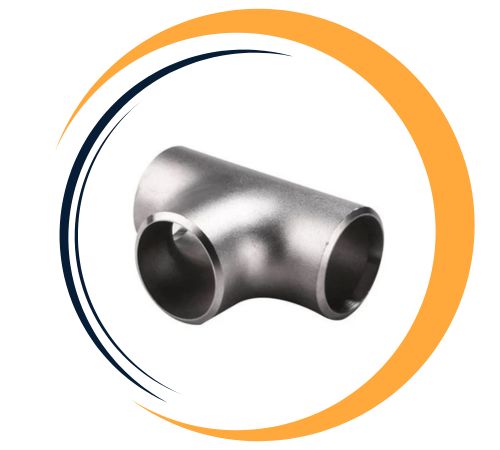

Duplex Steel Butt weld Straight Tees & Crosses : ASTM A815, ASME SA815 UNS No S31803, S32205

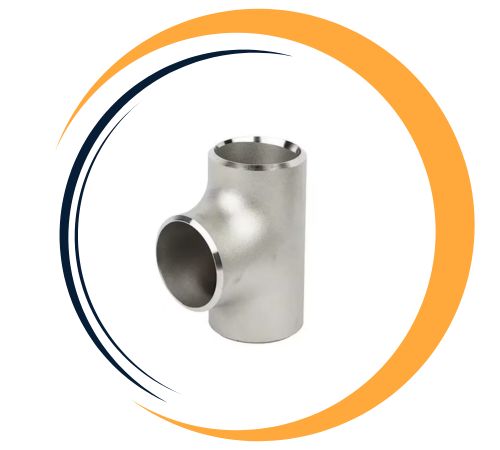

Super Duplex Butt weld Straight Tees & Crosses : ASTM A815, ASME SA815 UNS No S32750, S32950

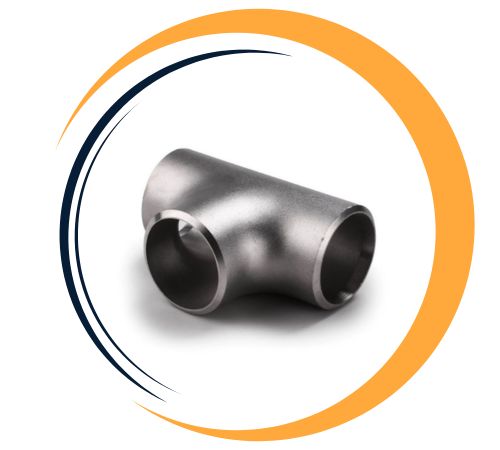

Nickel Alloy Butt weld Straight Tees & Crosses : ASTM B336, ASME SB336, Nickel 200 (UNS No. No2200), Nickel 201 (UNS No. N02201), Monel 400 (UNS No. N04400), Monel 500 (UNS No. N05500), Inconel 800 (UNS No. N08800), Inconel 825 (UNS No. N08825), Inconel 600 (UNS No. N06600), Inconel 625 (UNS No. N06625), Inconel 601 (UNS No. N06601), Hastelloy C 276 (UNS No. N10276), Alloy 20 (UNS No. N08020), Titanium (Grade I & II), Cupro-Nickel 70/30, CuNi10Fe1Mn, CuNi30Mn1Fe.
Low Temperature Carbon Steel Butt weld Straight Tees & Crosses : ASTM A420 WPL3, A420 WPL6
Heer Fittings is a leading supplier of Straight Tees in Delhi, India. We offer an extensive range of Straight Tees, renowned for their excellent corrosion resistance and high strength, which makes them perfect for demanding industrial applications like chemical processing, marine environments, and high-temperature systems. With a commitment to quality and reliable delivery, we ensure our clients receive top-tier products tailored to meet the specific needs of various industries.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Choose Straight Tees from Heer Fittings for superior quality, exceptional corrosion resistance, and reliable performance in extreme conditions. We offer customized solutions backed by expert support and industry experience.
Yes, custom sizes for Straight Tees are available at Heer Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@heerfittings.com.
| NPS | O.D. D | Center-to-End C | Center-to-End M |
| 1/2 | 21.3 | 25 | 25 |
| 3/4 | 26.7 | 29 | 29 |
| 1 | 33.4 | 38 | 38 |
| 1¼ | 42.2 | 48 | 48 |
| 1½ | 48.3 | 57 | 57 |
| 2 | 60.3 | 64 | 64 |
| 2½ | 73 | 76 | 76 |
| 3 | 88.9 | 86 | 86 |
| 3½ | 101.6 | 95 | 95 |
| 4 | 114.3 | 105 | 105 |
| 5 | 141.3 | 124 | 124 |
| 6 | 168.3 | 143 | 143 |
| 8 | 219.1 | 178 | 178 |
| 10 | 273 | 216 | 216 |
| 12 | 323.8 | 254 | 254 |
| 14 | 355.6 | 279 | 279 |
| 16 | 406.4 | 305 | 305 |
| 18 | 457 | 343 | 343 |
| 20 | 508 | 381 | 381 |
| 22 | 559 | 419 | 419 |
| 24 | 610 | 432 | 432 |
| 26 | 660 | 495 | 495 |
| 28 | 711 | 521 | 521 |
| 30 | 762 | 559 | 559 |
| 32 | 813 | 597 | 597 |
| 34 | 864 | 635 | 635 |
| 36 | 914 | 673 | 673 |
| 38 | 965 | 711 | 711 |
| 40 | 1016 | 749 | 749 |
| 42 | 1067 | 762 | 711 |
| 44 | 1118 | 813 | 762 |
| 46 | 1168 | 851 | 800 |
| 48 | 1219 | 889 | 838 |
Straight tees are commonly applied across different industries to divide or merge fluid flow through a pipeline. They have major applications in oil and gas transmission pipelines, petrochemical processing, water treatment plants, and power generation plants. In the chemical process, they facilitate the handling of aggressive fluids safely, whereas in HVAC systems, they regulate heating or cooling fluids in an efficient manner. They’re also very important in food and beverage, pharmaceutical, and marine operations, where hygienic
Get in touch with one of our Technical Sales Representatives to request a quote or get answers to any questions you may have.
