Heer Fittings is a reliable manufacturer and exporter of straight crosses, established in Delhi, India, providing precision-engineered forged fittings that conform to high industrial standards. Our straight crosses are specifically designed for joining four pipe segments at a right angle, to ensure uniform distribution of flow in intricate piping systems. Made of premium materials including stainless steel, carbon steel, alloy steel, and titanium, our fittings are designed for resilience, high-pressure performance, and corrosion resistance. Supported by state-of-the-art manufacturing facilities and quality oriented, Heer Fittings offers dependable solutions for businesses that need to achieve efficient multi-directional flow control.
Standard – ANSI/ASME :ASTM A403 / ASME SA403, ANSI B16.9, ASME B16.25, ASME B16.28, MSS SP-43.
DIN : DIN2605, DIN2615, DIN2616, DIN2617, DIN28011
EN : EN10253-1, EN10253-2
Schedule : SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS
Type : Seamless / ERW / Welded / Fabricated
Size: 1/2″ to 36″
Form: Butt weld Straight Tees, Fitting Butt weld Straight Crosses
Straight crosses are four-way pipe fittings where all outlets are in line at 90 degrees to create a symmetrical cross shape. They are applied in connecting four pipes in a system where uniform flow distribution is achieved. They are usually made of corrosion-resistant and high-strength materials such as stainless steel or titanium, which have good mechanical properties such as good tensile strength and resistance to pressure. Economical in design and easy to install, straight crosses can be found in socket weld, threaded, and buttweld configurations. Ideal for high-performance pipeline systems and required wherever balanced multi-directional flow or intricate branching in restricted space is necessary.

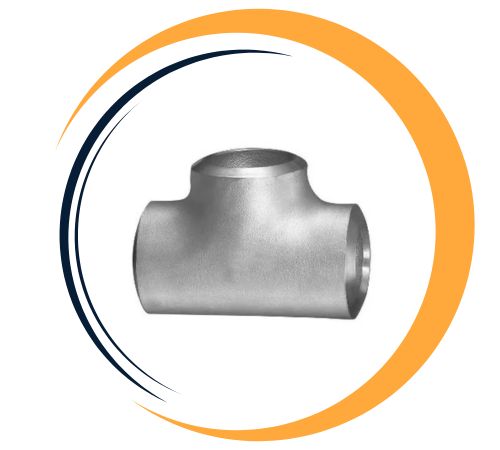

Stainless Steel Butt weld Straight Tees & Crosses: ASTM A403 WP316/316L, ASTM A403 WP304/304L, ASTM A182 F316L, 304L, DIN 1.4301, DIN1.4306, DIN 1.4401, DIN 1.4404, 304H, 309, 310, 316, 316L, 317L, 321, 347, 904L

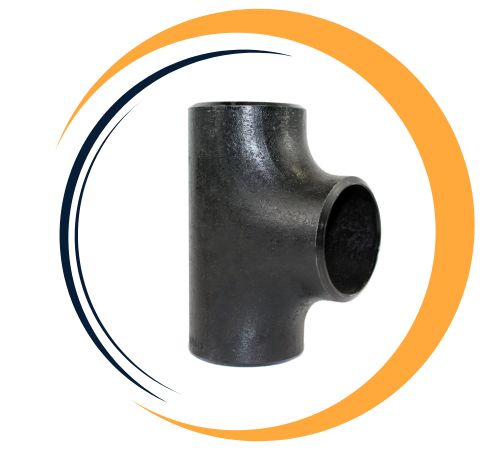

Carbon Steel Butt weld Straight Tees & Crosses : ASTM A234, ASME SA234 WPB , WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70.

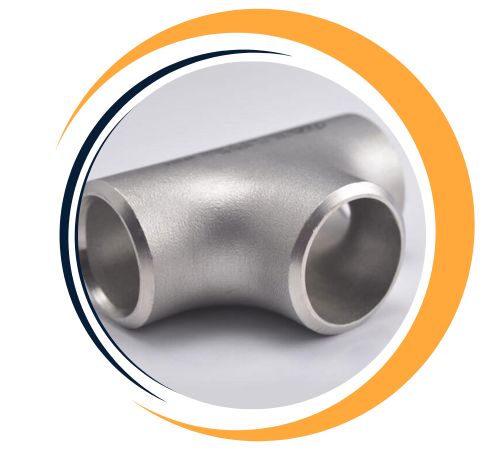

Alloy Steel Butt weld Straight Tees & Crosses : ASTM A234, ASME SA234 WP1 / WP5 / WP9 / WP11 / WP22 / WP91

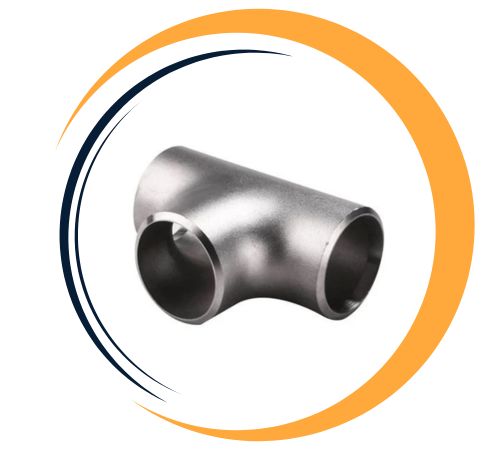

Duplex Steel Butt weld Straight Tees & Crosses : ASTM A815, ASME SA815 UNS No S31803, S32205

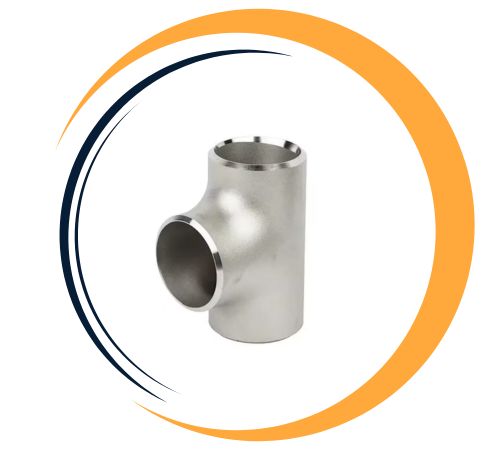

Super Duplex Butt weld Straight Tees & Crosses : ASTM A815, ASME SA815 UNS No S32750, S32950

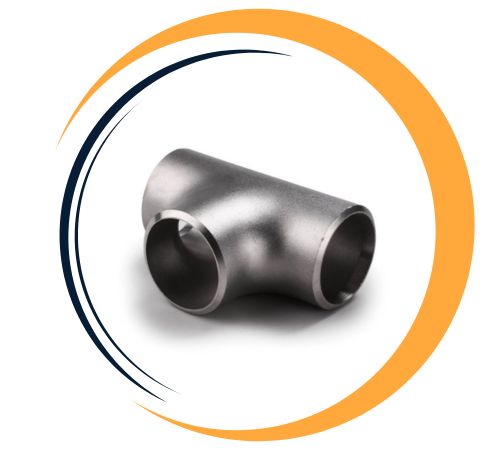

Nickel Alloy Butt weld Straight Tees & Crosses : ASTM B336, ASME SB336, Nickel 200 (UNS No. No2200), Nickel 201 (UNS No. N02201), Monel 400 (UNS No. N04400), Monel 500 (UNS No. N05500), Inconel 800 (UNS No. N08800), Inconel 825 (UNS No. N08825), Inconel 600 (UNS No. N06600), Inconel 625 (UNS No. N06625), Inconel 601 (UNS No. N06601), Hastelloy C 276 (UNS No. N10276), Alloy 20 (UNS No. N08020), Titanium (Grade I & II), Cupro-Nickel 70/30, CuNi10Fe1Mn, CuNi30Mn1Fe.
Low Temperature Carbon Steel Butt weld Straight Tees & Crosses : ASTM A420 WPL3, A420 WPL6
Heer Fittings is a leading supplier of Straight Crosses in Delhi, India. We offer an extensive range of Straight Crosses, renowned for their excellent corrosion resistance and high strength, which makes them perfect for demanding industrial applications like chemical processing, marine environments, and high-temperature systems. With a commitment to quality and reliable delivery, we ensure our clients receive top-tier products tailored to meet the specific needs of various industries.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Choose Straight Crosses from Heer Fittings for superior quality, exceptional corrosion resistance, and reliable performance in extreme conditions. We offer customized solutions backed by expert support and industry experience.
Yes, custom sizes for Straight Crosses are available at Heer Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@heerfittings.com.
| NPS | O.D. D | Center-to-End C | Center-to-End M |
| 1/2 | 21.3 | 25 | 25 |
| 3/4 | 26.7 | 29 | 29 |
| 1 | 33.4 | 38 | 38 |
| 1¼ | 42.2 | 48 | 48 |
| 1½ | 48.3 | 57 | 57 |
| 2 | 60.3 | 64 | 64 |
| 2½ | 73 | 76 | 76 |
| 3 | 88.9 | 86 | 86 |
| 3½ | 101.6 | 95 | 95 |
| 4 | 114.3 | 105 | 105 |
| 5 | 141.3 | 124 | 124 |
| 6 | 168.3 | 143 | 143 |
| 8 | 219.1 | 178 | 178 |
| 10 | 273 | 216 | 216 |
| 12 | 323.8 | 254 | 254 |
| 14 | 355.6 | 279 | 279 |
| 16 | 406.4 | 305 | 305 |
| 18 | 457 | 343 | 343 |
| 20 | 508 | 381 | 381 |
| 22 | 559 | 419 | 419 |
| 24 | 610 | 432 | 432 |
| 26 | 660 | 495 | 495 |
| 28 | 711 | 521 | 521 |
| 30 | 762 | 559 | 559 |
| 32 | 813 | 597 | 597 |
| 34 | 864 | 635 | 635 |
| 36 | 914 | 673 | 673 |
| 38 | 965 | 711 | 711 |
| 40 | 1016 | 749 | 749 |
| 42 | 1067 | 762 | 711 |
| 44 | 1118 | 813 | 762 |
| 46 | 1168 | 851 | 800 |
| 48 | 1219 | 889 | 838 |
Straight crosses are employed across a range of industries to divide or combine fluid or gas flow in four intersecting pipelines. Straight crosses play a crucial role in high-pressure and high-temperature applications like oil and gas processing, petrochemical refineries, power plants, and chemical production. Straight crosses assist in the control of elaborate piping systems with multiple outlet and inlet points in water treatment plants and fire systems. They are also employed within HVAC systems, drug manufacturing, and food plants where sanitary and efficient flow of fluid is paramount. They have a sturdy design that delivers sustained performance in harsh and corrosive operating environments.
Get in touch with one of our Technical Sales Representatives to request a quote or get answers to any questions you may have.
