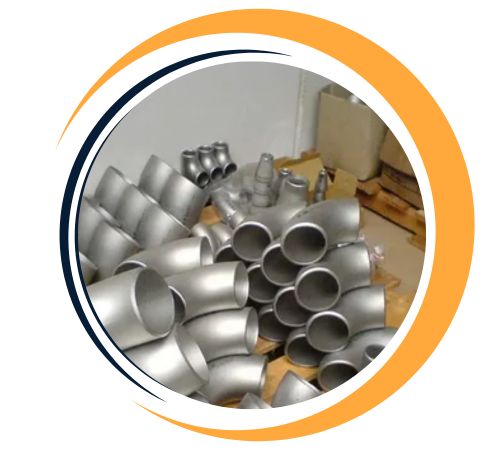

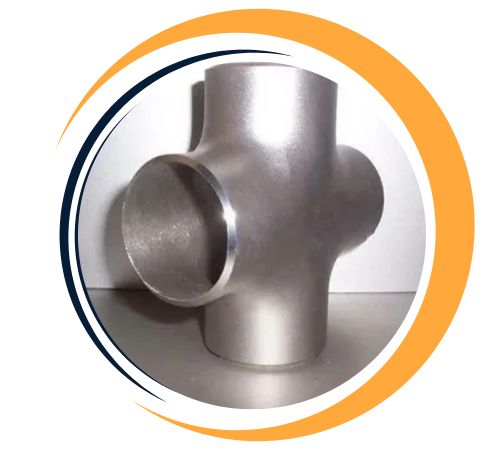

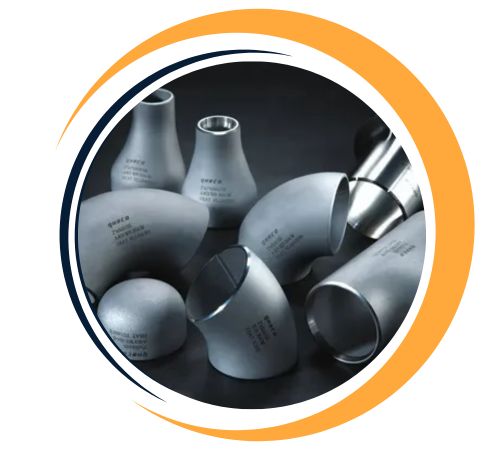

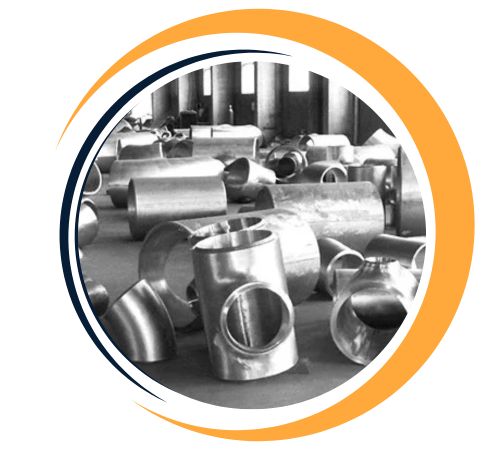

Offering a wide selection of Inconel Buttweld Fittings designed to withstand the demands of harsh heat, pressure, and chemical environments, Heer Fittings is a reputable brand in Delhi, India. These fittings, which are made from high-performance Inconel alloys (600, 625, 617, etc.), have excellent mechanical qualities and are resistant to corrosion. ASTM B366-compliant products, including elbows, tees, reducers, and caps, come in seamless or welded varieties. Heer Fittings is a dependable partner for sectors like oil and gas, chemical processing, marine, and aerospace engineering because it guarantees strict quality control and on-time delivery.
| Specifications | ASTM B 366 / ASME SB 366 |
| Standards | ANSI B 16.5, BS 1560. BS 10, IS 6392, B-2.1 NPT, API, DIN, JIS. MSS SP 44 |
| Size Range | Seamless 1/2″ – 10″ , Welded 1/2″ – 48″ |
| Type | Seamless & 100% X-Ray Welded, Fabricated |
| Schedule | Sch 5 TO Sch XXS. |
| Pipe Fittings Type | Reducer (Concentric & Eccentric), CAP, Stubend (Long &Short), Nipple (Barrel), Bend (Long & Short), Elbow (180 Deg., 90 Deg. & 45 Deg.), Tee (Equal & Unequal) |
Nickel (58–72%), chromium (14–24%), iron (up to 10%), and, depending on the grade, additional elements like molybdenum, cobalt, and niobium make up Inconel Buttweld Fittings. These alloys offer outstanding resistance to stress corrosion, oxidation, and high temperatures. Tensile strengths between 655 and 830 MPa are examples of mechanical properties. The fittings hold up well in high-pressure and cyclic thermal loading conditions. Long-lasting performance in corrosive and high-stress industrial piping systems is provided by Inconel fittings, which are engineered to meet ASTM B366 and related standards.
| Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr |
| Inconel 600 | 0.15 max | 1.00 max | 0.50 max | 0.015max | 0.50 max | 6.00 – 10.00 | 72.00 min | 14.00 – 17.00 |
| Inconel 601 | 0.10 max | 1.0 max | 0.5 max | 0.015 max | 1.0 max | Balance | 58.0 – 63.0 | 21.0 – 25.0 |
| Inconel 625 | 0.10 max | 0.50 max | 0.50 max | 0.015 max | – | 5.0 max | 58.0 min | 20.0 – 23.0 |
| Inconel 718 | 0.08 max | 0.35 max | 0.35 max | 0.015 max | 0.30 max | – | 50.00 – 55.00 | 17.00 – 21.00 |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Inconel 600 | 8.47 g/cm3 | 1413 °C (2580 °F) | Psi – 95,000 , MPa – 655 | Psi – 45,000 , MPa – 310 | 40 % |
| Inconel 601 | 8.1 g/cm3 | 1411 °C (2571 °F) | Psi – 80,000 , MPa – 550 | Psi – 30,000 , MPa – 205 | 30 % |
| Inconel 625 | 8.4 g/cm3 | 1350 °C (2460 °F) | Psi – 1,35,000 , MPa – 930 | Psi – 75,000 , MPa – 517 | 42.5 % |
| Inconel 718 | 8.2 g/cm3 | 1350 °C (2460 °F) | Psi – 1,35,000 , MPa – 930 | Psi – 75,000 , MPa – 482 | 45 % |
Heer Fittings is a leading supplier of Inconel Buttweld Fittings in Delhi, India. We offer an extensive range of Monel 400 fittings, renowned for their excellent corrosion resistance and high strength, which makes them perfect for demanding industrial applications like chemical processing, marine environments, and high-temperature systems. With a commitment to quality and reliable delivery, we ensure our clients receive top-tier products tailored to meet the specific needs of various industries.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| Inconel 600 | 2.4816 | N06600 | NCF 600 | NA 13 | МНЖМц 28-2,5-1,5 | NC15FE11M | NiCr15Fe |
| Inconel 601 | 2.4851 | N06601 | NCF 601 | NA 49 | XH60BT | NC23FeA | NiCr23Fe |
| Inconel 625 | 2.4856 | N06625 | NCF 625 | NA 21 | ХН75МБТЮ | NC22DNB4M | NiCr22Mo9Nb |
| Inconel 718 | 2.4668 | N07718 | – | – | – | – | – |
Inconel Buttweld Fittings from Heer Fittings offer exceptional corrosion resistance, especially in seawater and harsh environments. They are known for their high strength, durability, and resistance to pitting and crevice corrosion, ensuring long-lasting performance. We provide precise manufacturing, quality control, and reliable service for diverse industrial applications.
Yes, custom sizes for Inconel Buttweld Fittings are available at Heer Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@heerfittings.com.
Industries that require high strength and corrosion resistance in the face of extreme temperatures frequently use Inconel Buttweld Fittings. Heat exchangers, condensers, power plant parts, gas turbines, offshore oil platforms, and chemical processing lines are examples of common applications. These fittings are perfect for high-temperature reactors, furnace systems, and jet engines because of Inconel’s resistance to oxidation, carburisation, and thermal cycling. Because they are resistant to radiation embrittlement, they also function well in nuclear environments. Under demanding and dangerous service conditions, these fittings guarantee minimal maintenance and maximum uptime.
Get in touch with one of our Technical Sales Representatives to request a quote or get answers to any questions you may have.
