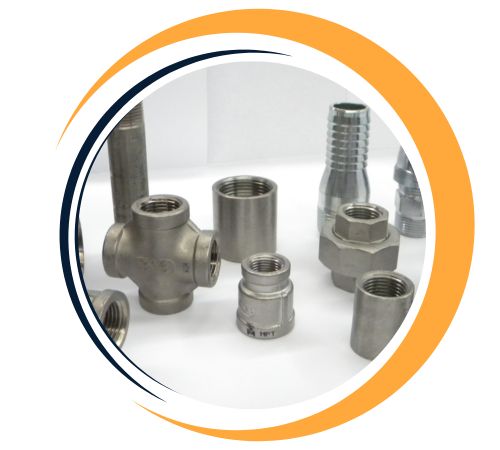

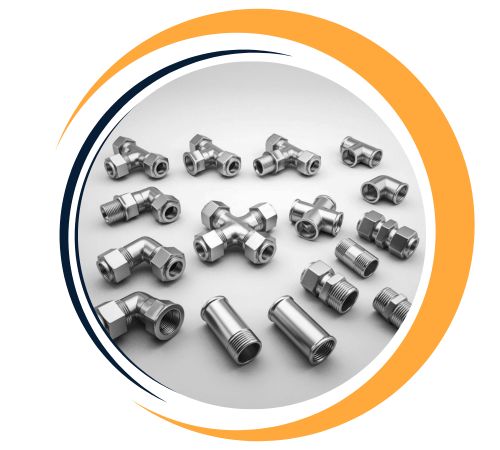

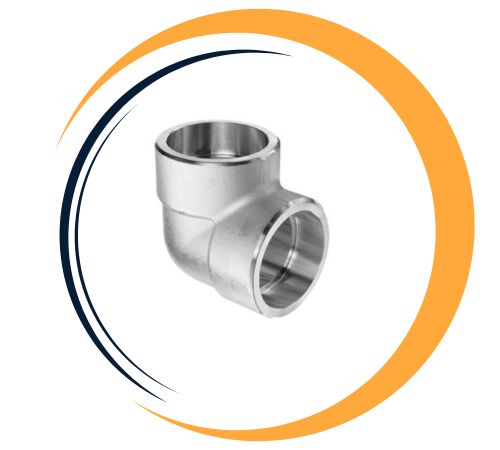

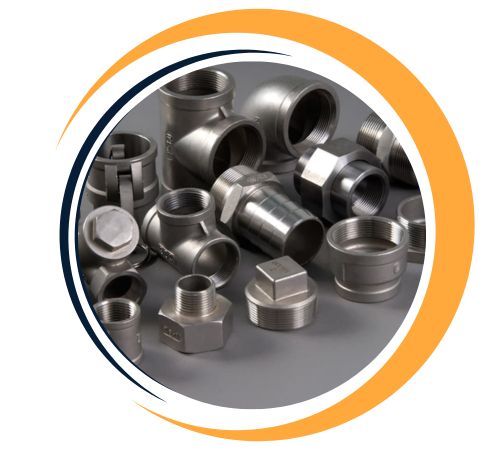

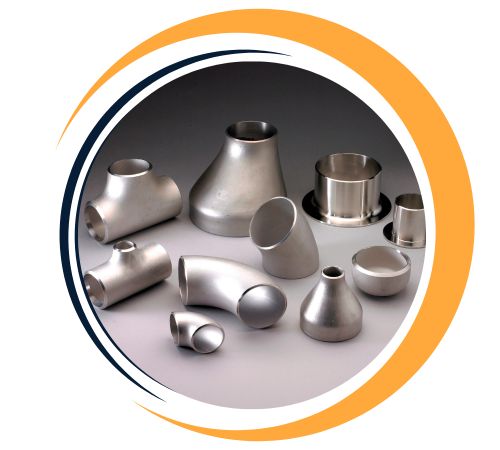

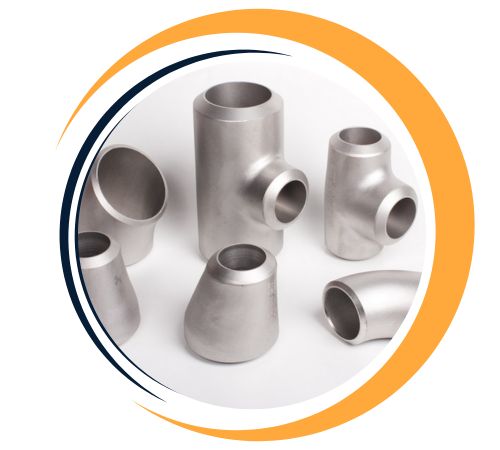

Heer Fittings is a reputable India-based manufacturer and supplier of Alloy Steel F1 Forged Fittings, providing high-performance fittings to be used in high-temperature and high-pressure applications. Its forged fittings of socket weld and threaded types like elbows, tees, couplings, unions, and plugs are produced according to ASTM A182 and ASME B16.11 specifications. Manufactured specifically for use in applications that necessitate high temperature resistance and minimal corrosion protection, Alloy Steel F1 fittings find extensive use in power plants, petrochemical processing units, and oil refineries. Heer Fittings promises quality, dimensional conformity, and material adherence to industry standards.
| Standards | ASTM A182 / ASME SA182 |
| Specifications | ASME B16.11, MSS SP-79, 83, 95, 97, BS 3799 |
| Size Range | NPS 1/8″- 4″ (DN 6~100) |
| Rating Pressure | Threaded End – 2000/3000/6000 LBS. Socket weld End – 3000/6000/9000 LBS. |
| Type | Socket Weld, Screwed, BSP Threaded & NPT Threaded |
Alloy Steel F1 is low-alloy steel with chromium and molybdenum, generally having a tensile strength of 415–585 MPa and yield strength of approximately 205 MPa. Molybdenum inclusion improves high-temperature deformation resistance and mechanical stability during stress. The fittings are generally normalized and tempered, exhibiting good ductility, impact performance, and weldability. Balancing its content, it can resist thermal cycling and pressure fluctuations, making it a reliable choice for demanding environments.
| Grade | C | Mn | Si | S | P | Cr | Mo |
| F1 | 0.15 max | 0.3-0.6 | 0.5 | 0.03 | 0.03 | 4-6 | 0.44-0.65 |
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min |
| F1 | 275 | 485 | 20 |
Heer Fittings is a leading supplier of Alloy Steel F1 Forged Fittings in Delhi, India. We offer an extensive range of Alloy Steel F1 Forged Fittings, renowned for their excellent corrosion resistance and high strength, which makes them perfect for demanding industrial applications like chemical processing, marine environments, and high-temperature systems. With a commitment to quality and reliable delivery, we ensure our clients receive top-tier products tailored to meet the specific needs of various industries.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Choose Alloy Steel F1 Forged Fittings from Heer Fittings for superior quality, exceptional corrosion resistance, and reliable performance in extreme conditions. We offer customized solutions backed by expert support and industry experience.
Yes, custom sizes for Alloy Steel F1 Forged Fittings are available at Heer Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@heerfittings.com
| DN-NPT | MAJOR DIAMETER MM | TAPPING /DRILL SIZE MM | TPI | PITCH MM |
|---|---|---|---|---|
| 1/16″ | 7.895 | 6.00 | 27 | 0.941 |
| 1/8″ | 10.242 | 8.25 | 27 | 0.941 |
| 1/4″ | 13.616 | 10.70 | 18 | 1.411 |
| 3/8″ | 17.055 | 14.10 | 18 | 1.411 |
| 1/2″ | 21.223 | 17.40 | 14 | 1.814 |
| 3/4″ | 26.568 | 22.60 | 14 | 1.814 |
| 1″ | 33.228 | 28.50 | 11.5 | 2.209 |
| 1¼” | 41.985 | 37.00 | 11.5 | 2.209 |
| 1½” | 48.054 | 43.50 | 11.5 | 2.209 |
| 2″ | 60.092 | 55.00 | 11.5 | 2.209 |
| 2½” | 72.699 | 65.50 | 8 | 3.175 |
| 3″ | 88.608 | 81.50 | 8 | 3.175 |
| 3½” | 101.316 | 94.30 | 8 | 3.175 |
| 4″ | 113.973 | 107.00 | 8 | 3.175 |
| 5″ | 141.300 | 134.384 | 8 | 3.175 |
| 6″ | 168.275 | 161.191 | 8 | 3.175 |
| 8″ | 219.075 | 211.673 | 8 | 3.175 |
| 10″ | 273.050 | 265.311 | 8 | 3.175 |
| 12″ | 323.850 | 315.793 | 8 | 3.175 |
| Description | Class Designation | ||
|---|---|---|---|
| 3000 | 6000 | 9000 | |
| Elbows 45 and 90 degrees, Tees, Crosses, Couplings, Half-Couplings, End or Pipe Caps | 1/2 – 4 | 1/2 – 2 | 1/2 – 2 |
| 1/2 – 4 | 1/2 – 2 | 1/2 – 2 | |
| 1/2 – 4 | 1/2 – 2 | 1/2 – 2 | |
| Pipe Size by Wall Thickness | SCH 80 / XS | SCH 160 | XXS |
Alloy Steel F1 Forged Fittings are generally employed in boiler plants, steam piping, heat exchangers, and pressure vessels where oxidation and thermal fatigue resistance is very significant. Their strength at high temperatures and strong construction make them suitable for systems that carry steam, superheated water, and other process fluids under high pressure. Compatible for threaded and socket weld connections, these fittings provide secure sealing, minimum leakage risk, and increased service life. Their longevity and low cost make them a worthwhile part of critical infrastructure and energy-intensive sectors.
