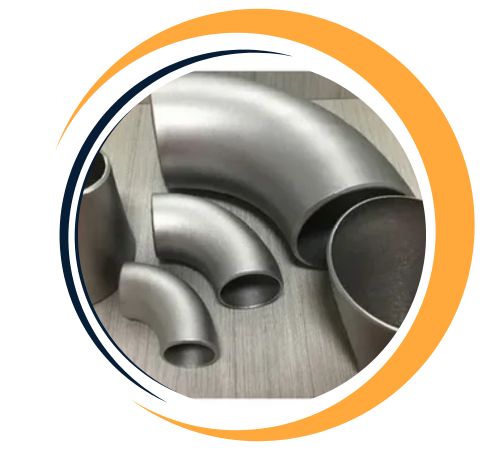

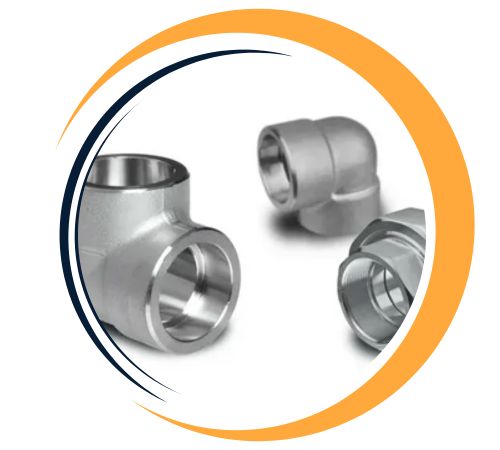

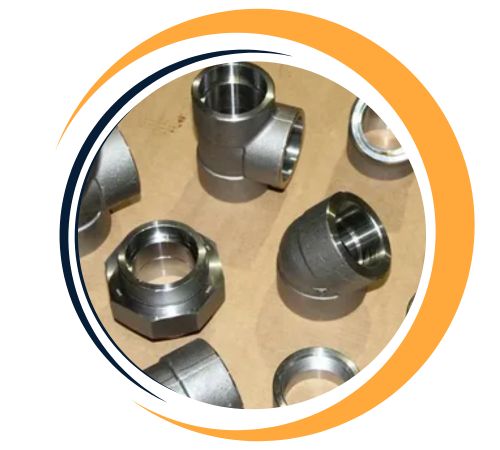

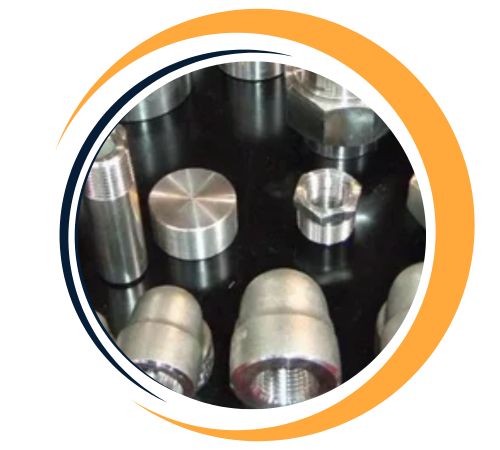

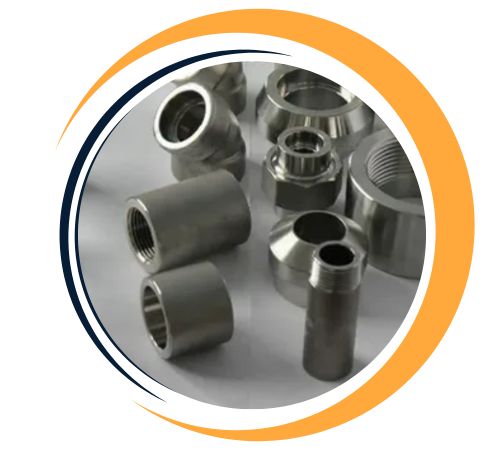

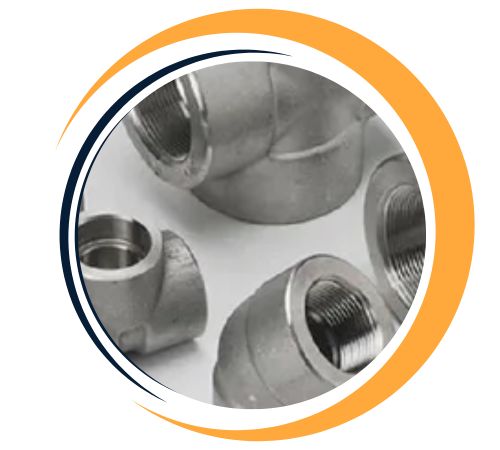

Heer Fittings is a principal producer and supplier of Incoloy 825 Forged Fittings in Delhi, India, providing top-grade components designed to perform better in corrosive and high-stress applications. These forged fittings in elbows, tees, couplings, unions, plugs, caps, and bushings are produced as per ASTM B564 and ASME B16.11 specifications. Incoloy 825, a nickel-chromium-iron alloy with molybdenum, copper, and titanium additions, provides superior resistance to reducing and oxidizing acids, stress corrosion cracking, and crevice corrosion. Heer Fittings maintains accuracy, longevity, and timely delivery in a variety of vital industries.
| ASTM B564 Incoloy Alloy 825 Forged Fittings Specification | |
|---|---|
| Specifications | ASTM B564 / ASME SB564 |
| Standards | ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799 |
| Size | 1/8″ NB to 4″ NB (Socketweld & Screwed-Threaded) |
| Class | 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS |
| Type | Socket Weld (S/W) & SCREWED (SCRD) – NPT, BSP, BSPT |
| Gr.825 Incoloy Alloy Forged Pipe Fittings Chemical Composition | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Grade | Ni | C | Fe | Si | Mn | S | Al | Ti | Cu | Cr | Mb |
| Incoloy 825 | 38.0 – 46.0 | 0.05 max | 22.0 min | 0.5 max | 1.0 max | 0.03 max | 0.2 max | 0.6 – 1.2 | 1.5 – 3.0 | 19.5 – 23.5 | 2.5 – 3.5 |
| Incoloy 825 Forged Fittings Mechanical Properties | |||||
|---|---|---|---|---|---|
| Grade | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 825 | 8.14 g/cm3 | 1400 °C (2550 °F) | Psi – 80,000, MPa -550 | Psi – 32,000, MPa – 220 | 30 % |
| Incoloy ASTM B564 Forged Fittings Equivalent Grades | ||||||||
|---|---|---|---|---|---|---|---|---|
| STANDARD | UNS | WNR NO. | AFNOR | EN | JIS | BS | GOST | OR |
| Incoloy 825 | N08825 | 2.4858 | NFE30C20DUM | NiCr21Mo | NCF 825 | NA 16 | ЭП703 | XH38BT |
Incoloy 825 has an approximate composition of 38–46% nickel, 19.5–23.5% chromium, 22% iron, 2.5–3.5% molybdenum, 1.5–3% copper, and 0.6–1.2% titanium. This composition in balance provides good resistance to sulfuric and phosphoric acid conditions and exhibits structural integrity to up to about 540°C. The alloy is characterized by a tensile strength of about 585 MPa, yield strength of about 220 MPa, and elongation of 30–45%, depending on condition and form. The alloy shows particular resistance to intergranular corrosion and chloride-stress cracking, and it is trustworthy in severe chemical and marine environments.
Heer Fittings is a leading supplier of Incoloy 825 Forged Fittings in Delhi, India. We offer an extensive range of Monel 400 fittings, renowned for their excellent corrosion resistance and high strength, which makes them perfect for demanding industrial applications like chemical processing, marine environments, and high-temperature systems. With a commitment to quality and reliable delivery, we ensure our clients receive top-tier products tailored to meet the specific needs of various industries.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Incoloy 825 Forged Fittings from Heer Fittings offer exceptional corrosion resistance, especially in seawater and harsh environments. They are known for their high strength, durability, and resistance to pitting and crevice corrosion, ensuring long-lasting performance. We provide precise manufacturing, quality control, and reliable service for diverse industrial applications.
Yes, custom sizes for Incoloy 825 Forged Fittings are available at Heer Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@heerfittings.com
Incoloy 825 Forged Fittings find extensive application in chemical processing, acid plants, marine applications, pollution control, nuclear fuel reprocessing, and offshore gas and oil production. They are perfectly suitable for applications in heat exchangers, pressure vessels, tank linings, and piping systems that handle highly corrosive fluids. Their outstanding corrosion resistance, particularly in environments with sulfuric, nitric, and hydrochloric acids, offers long life in service and safety. Incoloy 825 finds special utility where structural strength along with corrosion resistance is needed over long periods of time in aggressive service environments.
Get in touch with one of our Technical Sales Representatives to request a quote or get answers to any questions you may have.
