Nickel Alloy 200 Forged Fittings

Heer Fittings offers Nickel Alloy 200 Forged Fittings in Delhi, India, for application in high-purity, chemically aggressive, and high-temperature conditions. These forged fittings, offered in shapes like elbows, tees, couplings, unions, bushings, caps, plugs, and nipples, are produced in accordance with ASTM B564, ASME B16.11, and MSS-SP-79/83/95. Nickel 200 is commercially pure wrought nickel (UNS N02200) with superior resistance to dry gases, caustic alkalis, and neutral salts and finds extensive usage in chemical, electrical, and marine industries.

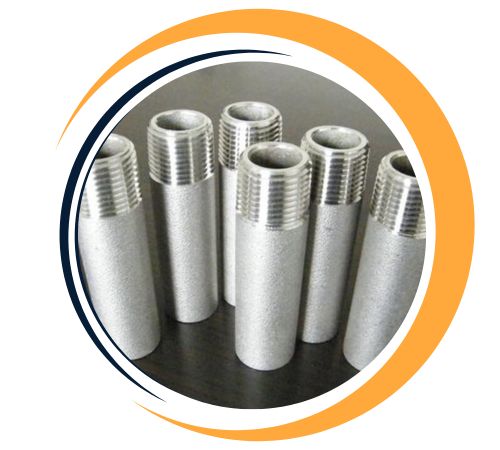

Nickel 200 Forged Fittings Dealer in Delhi, Nickel 200 Threaded Forged Fittings Supplier in Delhi, Nickel 200 Equal Cross Exporter in Delhi, Nickel Alloy UNS N02200 Welding Outlet Size Chart, 200 Nickel Alloy Nipple Outlet Forged Fittings Price in India, Nickel Alloy 200 ASME 16.11 Forged Elbow, Nickel 200 Couplings Supplier in Delhi, 200 Nickel Alloy End Pipe Cap Stockist in India, Alloy UNS N02200 Forged Pipe Fittings Exporter in India, Alloy 200 90 deg Socket weld Elbow Stockist in Delhi, DIN 2.4066 Street Elbow Supplier in India

Nickel Alloy 200 Forged Fittings Specification

ASTM B564 – ASME SB564	Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings
ASME B16.9	Factory-Made Wrought Buttwelding Fittings
ASME B16.11	Socket Welding and Threaded Forged Fittings
MSS SP-43	Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications
MSS SP-95	Swage(d) Nipples and Bull Plugs
BS3799	Specification for Steel pipe fittings, screwed and Socket-welding for the petroleum industry

Nickel Alloy 200 is normally composed of 99.6% nickel and trace amounts of manganese, copper, and iron. It has a tensile strength of ~380 MPa, yield strength of ~103 MPa, and elongation of ~45%, with high thermal and electrical conductivity, low gas content, and magnetic permeability. Its low carbon content minimizes carbide precipitation on welding or heat exposure, making the alloy suitable for exposure at elevated temperatures up to approximately 315°C. It is also highly resistant to corrosive conditions such as caustic soda, fluorine, and anhydrous ammonia.

Nickel Alloy 200 Forged Fittings Chemical Composition

Grade	C	Mn	Si	S	Cu	Fe	Ni
Nickel 200	0.15 max	0.35 max	0.35 max	0.01 max	0.25 max	0.40 max	99.0 min

Nickel Alloy 200 Forged Fittings Mechanical Properties

Grade	Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
Nickel 200	8.9 g/cm3	1446 °C (2635 °F)	Psi – 67000 , MPa – 462	Psi – 21500 , MPa – 148	45 %

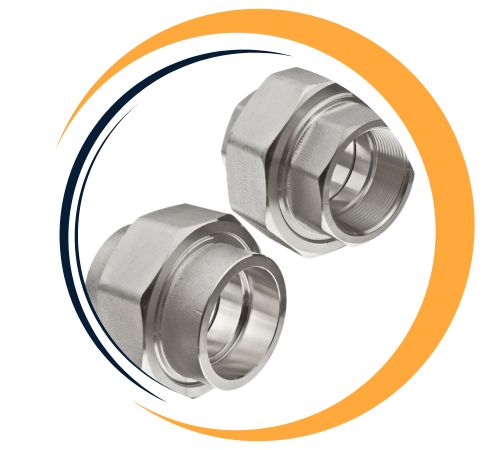

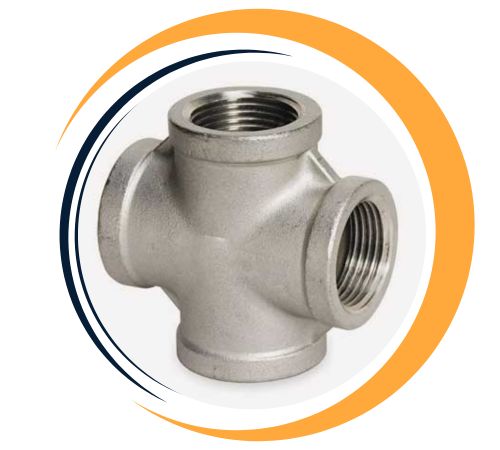

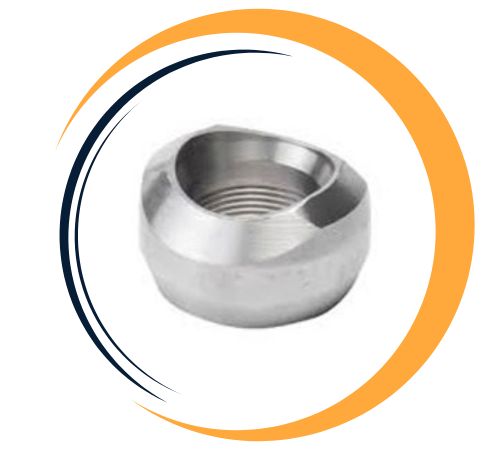

Nickel UNS N02200 Equal Tees Price in India, Nickel 200 Forged Tee Weight Chart, Nickel 200 Cross Forged Fittings Supplier in Delhi, Nickel 200 Socket Weld Outlet Forged Fittings Stockist in India, Nickel 200 Reducing Tee Supplier in India, Nickel 2.4066 Reducing Insert Price List in Delhi, MSS SP-79 Threaded Bushing Supplier in India, Nickel ASTM B564 Pipe Nipple Forged Fittings Exporter in Delhi, Nickel Alloy Threaded Pipe Fittings Exporter in India, Nickel 200 High Pressure Forged Fittings Exporter in Delhi, 200 Nickel Alloy Union Forged Fittings in India, Nickel Werkstoff Nr. 2.4066 Forged Fittings Size Chart

Largest Nickel Alloy 200 Forged Fittings Supplier in Delhi, India

Heer Fittings is a leading supplier of Nickel Alloy 200 Forged Fittings in Delhi, India. We offer an extensive range of Nickel Alloy 200 Forged Fittings, renowned for their excellent corrosion resistance and high strength, which makes them perfect for demanding industrial applications like chemical processing, marine environments, and high-temperature systems. With a commitment to quality and reliable delivery, we ensure our clients receive top-tier products tailored to meet the specific needs of various industries.

We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.

If You Are Looking To Buy High Quality

Nickel Alloy 200 Forged Fittings Physical Properties

Density (Kg.m-1)	84.3
Magnetic Permeability (20°C)	<1.005
Curie Temperature (°C)	-90
Young’s Modulus (N/mm2)	179 x 103
Specific Heat, 20°C (J.Kg-1.°K-1)	418
Specific Electrical Resistance, 20°C (?O.m)	0.62
Thermal conductivity,20°C (W.m-1.°K-1)	17.5
Mean coefficient of thermal expansion, 20-100°C (°K-1)	13.4 x 10-6

Equivalent of Nickel 200 Forged Fittings

STANDARD	WERKSTOFF NR.	UNS	JIS	BS	GOST	AFNOR	EN
Nickel 200	2.4066	N02200	NW 2200	NA 11	НП-2	N-100M	Ni 99.2

Why Choose Nickel Alloy 200 Forged Fittings from Heer Fittings?

Nickel Alloy 200 Forged Fittings from Heer Fittings offer exceptional corrosion resistance, especially in seawater and harsh environments. They are known for their high strength, durability, and resistance to pitting and crevice corrosion, ensuring long-lasting performance. We provide precise manufacturing, quality control, and reliable service for diverse industrial applications.

Alloy 200 Coupling Distributor in India, ASME B16.11 Nickel UNS N02200 Street Elbow Supplier in Delhi, Nickel Alloy 200 Equal Tee Weight Chart, Nickel 200 Cross Exporter in India, Nickel DIN 2.4066 Socket Weld Tee Manufacturer in Delhi, ASTM B564 Alloy 200 Pipe Nipple Price List in Delhi, Nickel N02200 90 Deg. Threaded Elbow Sizes in mm, Nickel 200 MSS SP-95 Swage Nipple Forged Fittings Distributor in Delhi, Nickel Alloy 200 High Pressure Forged Pipe Cap in India

Customer Support

Largest Inventory

On Time Deliveries

ISO Certified

Types of Nickel Alloy 200 Forged Fittings

Are Custom Sizes Available for Nickel Alloy 200 Forged Fittings?

Yes, custom sizes for Nickel Alloy 200 Forged Fittings are available at Heer Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@heerfittings.com.

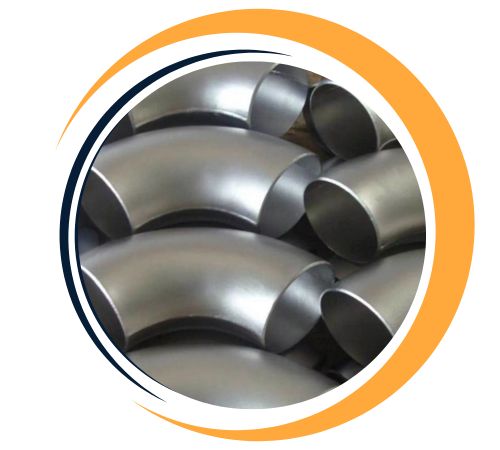

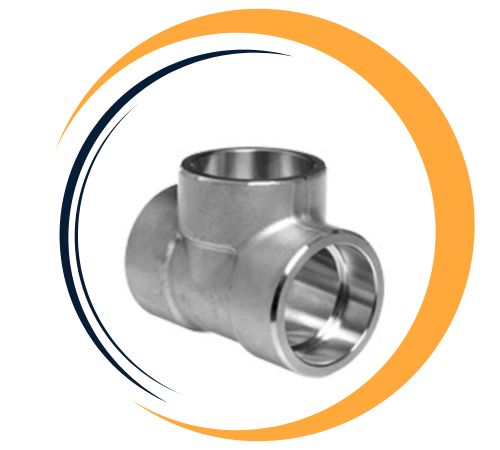

Alloy 200 Forged Socket Weld Equal Tee Manufacturer in Delhi, Alloy 200 Socket Weld Fittings Delhi, DIN 2.4066 Nickel Forged Threaded 90° Elbow Supplier in Delhi, Nickel 200 High Pressure Forged Pipe Fittings Exporter in India, Alloy 200 Hex Bushing Price List in Delhi, ASTM B564 Alloy 200 Threaded Union Forged Fittings Distributor in Delhi, UNS N02200 Nickel Socketweld 45 Degree Elbow Supplier in Delhi, Nickel Alloy DIN 2.4066 Forged Elbow Distributor in India, Nickel Alloy 200 Forged Nipples Sizes in mm

Application Industry of Nickel Alloy 200 Forged Fittings

Nickel Alloy 200 Forged Fittings find application in chemical processing facilities, caustic solution-handling piping systems, battery production, synthetic fiber manufacturing, and electronic device production. They suit high-purity gas systems, alkaline tank storage, marine uses, and evaporator and condenser piping. They are the best choice for applications requiring resistance against corrosion, thermal shock, and mechanical stress under pressure and are appropriate for severe service under both low-temperature and moderately high-temperature conditions.
