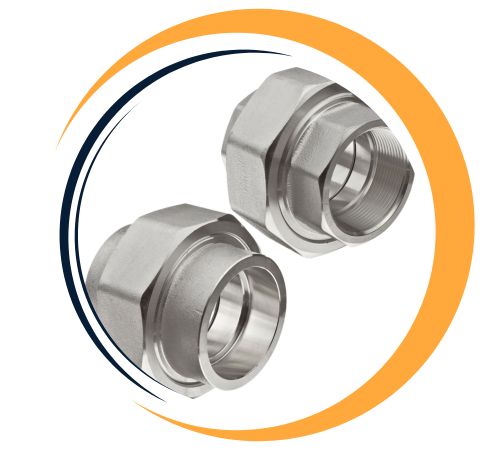

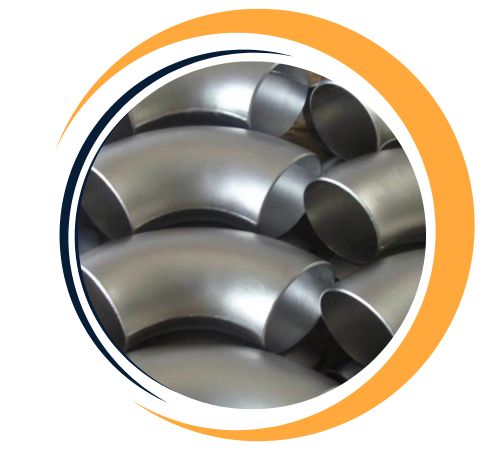

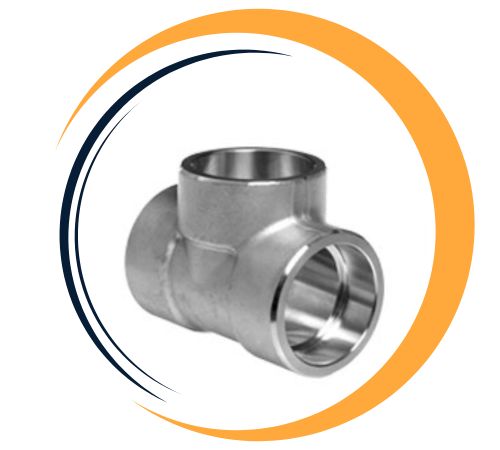

Heer Fittings provides Nickel Alloy 201 Forged Fittings in Delhi, India, to be used in high-purity and corrosive service conditions. These forged fittings—of standard types including elbows, tees, couplings, bushings, plugs, caps, and unions—are made as per ASTM B564, ASME B16.11, and MSS-SP-79/83/95. Nickel 201 (UNS N02201) is a low-carbon variation of Nickel 200 and is intended for better resistance against intergranular corrosion at higher temperatures and improved thermal stability during forming or welding processes.
Specifications : ASTM B564 / ASTM SB 564
Type : Socketweld Fittings, Screwed-Threaded Fittings
Size : ⅛” to 4”
Class :2000 LBS, 3000 LBS, 6250 LBS, 9000 LBS
Standards : ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799
Nickel Alloy 201 is usually composed of ≥99.6% nickel with ≤0.02% carbon content and is the best to use when service is required above 315°C where Nickel 200 is likely to undergo graphitization. It possesses a tensile strength of ~380 MPa, yield strength of ~103 MPa, and elongation of ~45%, as well as superior thermal and electrical conductivity. The alloy is resistant to corrosion in alkaline, neutral, and reducing environments such as caustic soda, anhydrous ammonia, and high-purity process gases. It does not exhibit magnetism and retains mechanical properties over a broad temperature spectrum.
| Nickel 201 | Ni | C | Mo | Mn | Si | Fe | P | S | Cu | Cr |
| Balance | 0.15 max | – | 0.35 max | 0.35 max | 0.40 max | – | 0.01 max | 0.25 max | – |
| Density | Melting Point | Yield Strength (0.2%Offset) | Tensile Strength | Elongation |
| 8.9 g/cm3 | 1446 °C (2635 °F) | Psi – 21500 , MPa – 148 | Psi – 67000 , MPa – 462 | 45 % |
Heer Fittings is a leading supplier of Nickel Alloy 201 Forged Fittings in Delhi, India. We offer an extensive range of Nickel Alloy 201 Forged Fittings, renowned for their excellent corrosion resistance and high strength, which makes them perfect for demanding industrial applications like chemical processing, marine environments, and high-temperature systems. With a commitment to quality and reliable delivery, we ensure our clients receive top-tier products tailored to meet the specific needs of various industries.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| Density (Kg.m-1) | 84.3 |
|---|---|
| Magnetic Permeability (20°C) | <1.005 |
| Curie Temperature (°C) | -90 |
| Young’s Modulus (N/mm2) | 179 x 103 |
| Specific Heat, 20°C (J.Kg-1.°K-1) | 418 |
| Specific Electrical Resistance, 20°C (?O.m) | 0.62 |
| Thermal conductivity,20°C (W.m-1.°K-1) | 17.5 |
| Mean coefficient of thermal expansion, 20-100°C (°K-1) | 13.4 x 10-6 |
| STANDARD | WERKSTOFF NR. | UNS | AFNOR | GOST | JIS | BS | EN | OR |
| Nickel 201 | 2.4068 | N02201 | – | НП-2 | NW 2201 | NA 12 | LC-Ni 99 | – |
Nickel Alloy 201 Forged Fittings from Heer Fittings offer exceptional corrosion resistance, especially in seawater and harsh environments. They are known for their high strength, durability, and resistance to pitting and crevice corrosion, ensuring long-lasting performance. We provide precise manufacturing, quality control, and reliable service for diverse industrial applications.
Yes, custom sizes for Nickel Alloy 201 Forged Fittings are available at Heer Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@heerfittings.com.
Nickel Alloy 201 Forgings Fittings are generally utilized in chemical processing, pharmaceutical manufacturing, caustic solution use, semiconductor fabrication, and marine applications. These fittings are ideal for use in pressure piping, evaporators, heat exchangers, and electronic process lines where both purity and resistance to corrosion are essential. They have low carbon content due to which they can be used in welded systems and thermal cycling, along with giving long service life in low-temperature cryogenic conditions as well as moderate high-temperature conditions.
Get in touch with one of our Technical Sales Representatives to request a quote or get answers to any questions you may have.
