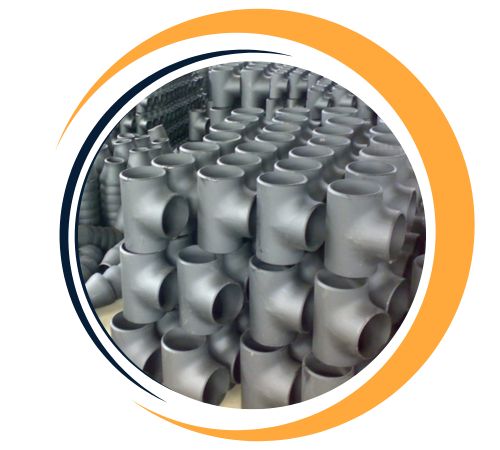

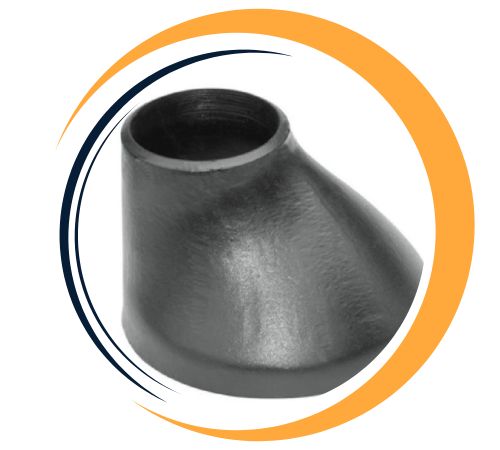

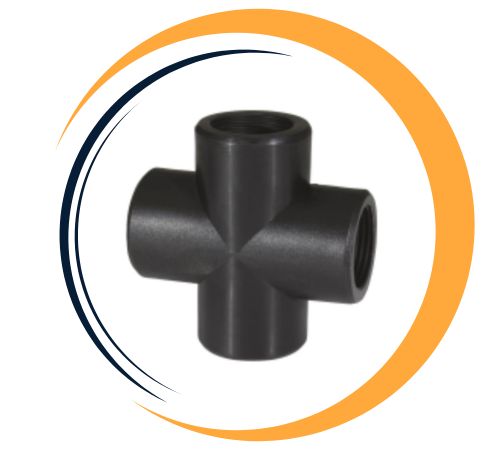

Heer Fittings is a trusted manufacturer and supplier of Alloy Steel WP5 Buttweld Fittings in Delhi, India, providing high-performance and durable piping components for high-pressure and high-temperature use. Such fittings, which come in conventional shapes like elbows, tees, reducers, caps, and crosses, are made according to ASTM A234 and ASME B16.9 standards. Alloy Steel WP5 is a chromium-molybdenum ferritic alloy steel that possesses superior strength, thermal stability, and corrosion resistance, especially in systems subjected to high temperatures and aggressive media. Heer Fittings offers precision-designed products with uniform quality for demanding applications.
| Specifications | : | ASTM A234 / ASME SA234 |
| Size | : | 1/8” NB TO 48” NB. (Seamless & 100% X-Ray Welded, Fabricated) |
| Standards | : | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43 |
| Thickness | : | Sch 5s, Sch 10s, Sch 40s, Sch 80s, Sch 160s, Sch XXS |
| Type | : | Seamless / Welded / Fabricated |
Alloy Steel WP5 is commonly found to have 5% chromium and 0.5% molybdenum with the rest iron and controlled quantities of carbon, manganese, phosphorus, sulfur, and silicon. It offers a minimum yield strength of 205 MPa, tensile strength between 415 and 585 MPa, and elongation of 20% or greater based on dimensions and heat treatment. The chemical composition of the alloy ensures high resistance to oxidation, thermal fatigue, and creep deformation, which makes it a prime candidate for utilization in high-temperature applications in harsh environments. It also has good weldability and formability upon fabrication.
| Grade | C | Mn | Si | S | P | Cr | Mo |
| A234 WP5 | ≤0.15 | ≤0.6 | ≤0.5 | ≤0.04 | ≤0.03 | 4-6 | 0.44-0.65 |
| Grade | Tensile Strength (Mpa) | Yield Strength (Mpa) | Elongation % |
| A234 WP5 | 415 – 585 | ≥205 | ≥20 |
Heer Fittings one of the largest suppliers of Alloy Steel WP5 Buttweld Fittings in Delhi, India. We specialize in providing a wide range of high-quality, durable fittings for various industrial applications. Our inventory includes elbows, tees, reducers, couplings, and other essential fittings designed to offer exceptional corrosion resistance and strength. Alloy Steel WP5 is known for its cost-effectiveness and excellent mechanical properties, making it ideal for industries such as construction, chemical processing, and food processing. With a commitment to customer satisfaction, timely delivery, and competitive pricing, we are the trusted choice for Alloy Steel WP5 Buttweld Fittings in the India.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Alloy Steel WP5 Buttweld Fittings from Heer Fittings offer exceptional corrosion resistance, especially in seawater and harsh environments. They are known for their high strength, durability, and resistance to pitting and crevice corrosion, ensuring long-lasting performance. We provide precise manufacturing, quality control, and reliable service for diverse industrial applications.
| O.D. or I.D. Diameter | Equivalent Decimal | Nominal Diameter | Typical Threads In Inch |
| 5/16 | 0.313 | 1/16 | 27 |
| 13/32 | 0.405 | 1/8 | 27 |
| 35/64 | 0.540 | 1/4 | 18 |
| 43/64 | 0.675 | 3/8 | 18 |
| 27/32 | 0.840 | 1/2 | 14 |
| 1-3/64 | 1.050 | 3/4 | 14 |
| 1-5/16 | 1.315 | 1 | 11-1/2 |
| 1-21/32 | 1.660 | 1-1/4 | 11-1/2 |
| 1-29/32 | 1.900 | 1-1/2 | 11-1/2 |
| 2-3/8 | 2.375 | 2 | 11-1/2 |
| 2-7/8 | 2.875 | 2-1/2 | 8 |
| 3-1/2 | 3.500 | 3 | 8 |
| 4 | 4.000 | 3-1/2 | 8 |
| 4-1/2 | 4.500 | 4 | 8 |
| ASTM A234 WP5 Pipe Fittings (Grade WP5 To WP91) Tolerance | 90 Deg And 45 Deg Elbows And Pipe Tee | Reducer (Concentric/ Eccentric) & Lap Joint Stub End (Long / Short) | Pipe End Caps | |||
| Normal Pipe Size (NPS) Of ASME B16.9 | O. (Outside) D. (Daimeter) at Bevel | I. (Inside) D.(Daimeter) at End | Wall Thickness Of T | Center-to-End Dimension A ,C ,B | Over-all Length Of H | Over-all Length Of F |
| 1/2 to 2-1/2 | +0.06 | Not less than 87.5% of nominal thickness | +/- 0.06 | +/- 0.06 | +/- 0.12 | |
| -0.03 | ||||||
| 3 to 3-1/2 | +/- 0.06 | +/- 0.06 | +/- 0.06 | +/- 0.06 | +/- 0.12 | |
| 4 | +/- 0.06 | +/- 0.06 | +/- 0.06 | +/- 0.06 | +/- 0.12 | |
| 5 to 8 | +/- 0.06 | +/- 0.06 | +/- 0.06 | +/- 0.06 | +/- 0.25 | |
| 10 to 18 | +0.16 | +/- 0.12 | +/- 0.09 | +/- 0.09 | +/- 0.25 | |
| -0.12 | ||||||
| 20 to 24 | +0.25 | +/- 0.19 | +/- 0.09 | +/- 0.09 | +/- 0.25 | |
| -0.19 | ||||||
| 26 to 30 | +0.25 | +/- 0.19 | +/- 0.12 | +/- 0.19 | +/- 0.38 | |
| -0.19 | ||||||
| 32 to 48 | +0.25 | +/- 0.19 | +/- 0.19 | +/- 0.19 | +/- 0.38 | |
| -0.19 | ||||||
Yes, custom sizes are available for Alloy Steel WP5 Buttweld Fittings to meet specific requirements. We offer tailored solutions to ensure precise fit and performance for various applications. For more information, please contact us at sales@heerfittings.com.
| STANDARD | 348H Pipe Fittings |
| EN | X5CrNiMo17-12-2 / X3CrNiMo17-13-3 |
| JIS | SUS 316L |
| BS | 316S11 / 316S13 |
| UNS | S34809 |
| WERKSTOFF NO. | 1.4546 |
| AFNOR | Z7CND17‐11‐02 |
| GOST | 03Ch17N14M3 / 03Ch17N14M2 |
Alloy Steel WP5 Buttweld Fittings find extensive application in power plants, petrochemical facilities, oil refineries, and high-pressure steam boiler systems. These fittings are typically installed in boiler tubes, superheaters, heat exchangers, and pressure vessels where performance reliability under thermal stress is critical. Mechanical strength and resilience against oxidation and scaling at high temperatures provide long life during service and system safety. WP5 fittings provide ideal solutions for engineers and plant operators in need of strong, efficient solutions for harsh service piping applications.
Get in touch with one of our Technical Sales Representatives to request a quote or get answers to any questions you may have.
