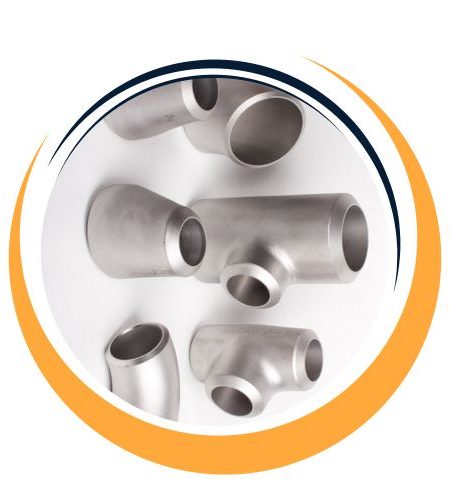

Heer Fittings is one of the reliable manufacturers and suppliers of Duplex Steel UNS S32205 Buttweld Fittings in Delhi, India, that provide corrosion-resistant and high-strength piping fittings for demanding industries. Produced to ASTM A815 and ASME B16.9 specifications, these fittings are designed to deliver superior performance in environments where mechanical stress and corrosion resistance are equally critical. Duplex S32205, or 2205 duplex, is a nitrogen-strengthened duplex stainless steel offering a balanced austenite and ferrite microstructure combining high strength with resistance to crevice corrosion, pitting, and stress corrosion cracking.
| Size | : | 1/2″NB TO 4″NB IN |
| Standard | : | ASTM A182 / ASME SA182 |
| Dimensions | : | ANSI/ASME B16.11 & BS3799, etc. |
| Grade | : | UNS S31803, S32205, S2205, S32550, S32750, S32760. |
| Class | : | 2000LBS, 3000LBS, 6000LBS, 9000LBS, etc. |
The chemistry of UNS S32205 contains about 22% chromium, 5–6.5% nickel, 3–3.5% molybdenum, and controlled nitrogen addition. It has a tensile strength of around 620–800 MPa, a yield strength almost double that of austenitic stainless steels at around 450 MPa, and elongation of 25–30%. It has superior mechanical strength over a broad range of temperatures and excellent resistance to chloride-rich environments. The duplex structure also enhances fatigue strength and weldability with low risk of thermal distortion or sensitization.
| UNS S31803 | Ni | Cr | Mo | Mn | Si | C | N | S | P | Fe |
| min | 4.5 | 22.0 | 3.0 | – | – | – | 0.14 | – | – | – |
| max | 6.5 | 23.0 | 3.5 | 2.0 | 1.0 | 0.03 | 0.2 | 0.02 | 0.03 | Balance |
| Grade | S31803 |
| Density (g/cm 3) | 7.805 |
| Density (lb/in 3) | 0.285 |
| Melting Point (°C) | 1420 – 1465 |
| Melting Point (°F) | 2588 – 2669; |
Heer Fittings is a leading supplier of Duplex Steel UNS S32205 Forged Fittings in Delhi, India. We offer an extensive range of Duplex Steel UNS S32205 Forged Fittings, renowned for their excellent corrosion resistance and high strength, which makes them perfect for demanding industrial applications like chemical processing, marine environments, and high-temperature systems. With a commitment to quality and reliable delivery, we ensure our clients receive top-tier products tailored to meet the specific needs of various industries.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Choose Duplex Steel UNS S32205 Forged Fittings from Heer Fittings for superior quality, exceptional corrosion resistance, and reliable performance in extreme conditions. We offer customized solutions backed by expert support and industry experience.
Yes, custom sizes for Duplex Steel UNS S32205 Forged Fittings are available at Heer Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@heerfittings.com.
| STANDARD | UNS | |
| Duplex Steel Forged Fittings | S31803 / S32205 |
| DN-NPT | MAJOR DIAMETER MM | TAPPING /DRILL SIZE MM | TPI | PITCH MM |
|---|---|---|---|---|
| 1/16″ | 7.895 | 6.00 | 27 | 0.941 |
| 1/8″ | 10.242 | 8.25 | 27 | 0.941 |
| 1/4″ | 13.616 | 10.70 | 18 | 1.411 |
| 3/8″ | 17.055 | 14.10 | 18 | 1.411 |
| 1/2″ | 21.223 | 17.40 | 14 | 1.814 |
| 3/4″ | 26.568 | 22.60 | 14 | 1.814 |
| 1″ | 33.228 | 28.50 | 11.5 | 2.209 |
| 1¼” | 41.985 | 37.00 | 11.5 | 2.209 |
| 1½” | 48.054 | 43.50 | 11.5 | 2.209 |
| 2″ | 60.092 | 55.00 | 11.5 | 2.209 |
| 2½” | 72.699 | 65.50 | 8 | 3.175 |
| 3″ | 88.608 | 81.50 | 8 | 3.175 |
| 3½” | 101.316 | 94.30 | 8 | 3.175 |
| 4″ | 113.973 | 107.00 | 8 | 3.175 |
| 5″ | 141.300 | 134.384 | 8 | 3.175 |
| 6″ | 168.275 | 161.191 | 8 | 3.175 |
| 8″ | 219.075 | 211.673 | 8 | 3.175 |
| 10″ | 273.050 | 265.311 | 8 | 3.175 |
| 12″ | 323.850 | 315.793 | 8 | 3.175 |
| Description | Class Designation | ||
|---|---|---|---|
| 3000 | 6000 | 9000 | |
| Elbows 45 and 90 degrees, Tees, Crosses, Couplings, Half-Couplings, End or Pipe Caps | 1/2 – 4 | 1/2 – 2 | 1/2 – 2 |
| 1/2 – 4 | 1/2 – 2 | 1/2 – 2 | |
| 1/2 – 4 | 1/2 – 2 | 1/2 – 2 | |
| Pipe Size by Wall Thickness | SCH 80 / XS | SCH 160 | XXS |
Duplex Steel UNS S32205 Buttweld Fittings have extensive applications in chemical processing, desalination plants, oil and gas, pulp and paper, marine engineering, and wastewater treatment. They are best suited for application in pipelines, pressure vessels, heat exchangers, and structural components subject to aggressive environments involving chlorides, sulfides, or acidic compounds. Their superior balance of mechanical integrity and corrosion protection renders them ideal for service applications where longevity, reliability, and lower maintenance are critical.
Get in touch with one of our Technical Sales Representatives to request a quote or get answers to any questions you may have.
