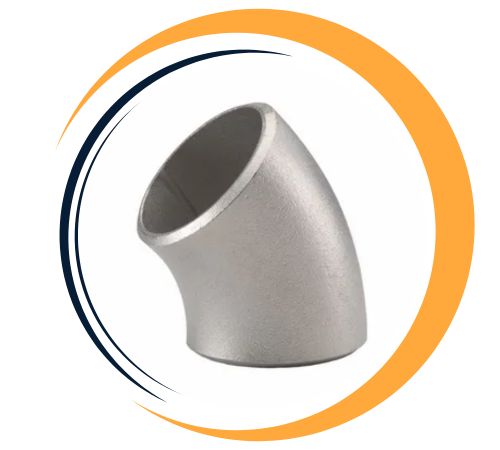

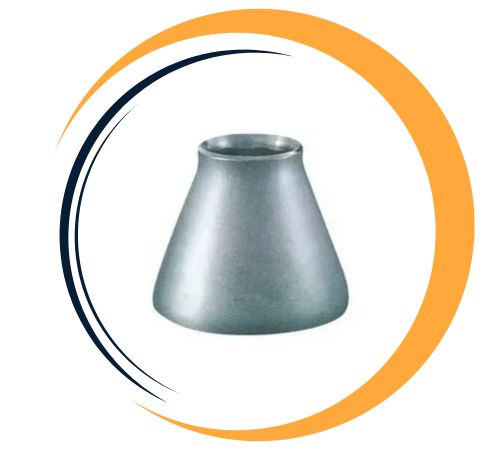

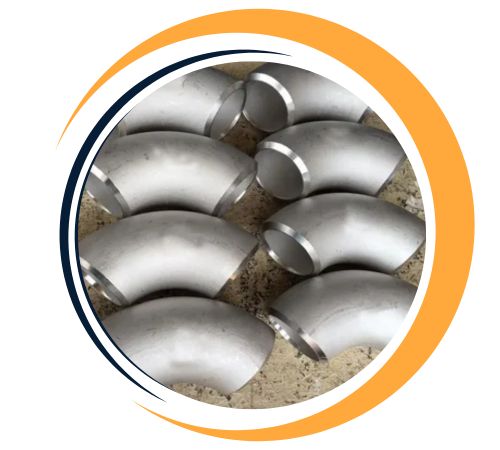

Heer Fittings, a Delhi, India-based company, is a reliable producer and exporter of high-quality Super Duplex Steel S32760 pipe fittings renowned for their durability, strength, and resistance to corrosion. Dedicated to quality and accuracy, Heer Fittings offers an extensive variety of fittings such as elbows, tees, reducers, and flanges that are in accordance with international standards. Suppling critical industries like oil & gas, petrochemical, marine, and energy, the company provides consistent performance in harsh conditions. Utilizing advanced manufacturing techniques and rigorous quality control, Heer Fittings supplies high-performance solutions based on customer specifications.
| Specification | ASTM A815/ ASME SA815 |
| Standard | EN, ISO, DIN, JIS, NPT |
| Dimension Standard | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43 |
| Size | 1/8” NB TO 48” NB. (Seamless & 100% X-Ray Welded, Fabricated) |
| Thickness | SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75 |
| Bending Radius | R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom |
| Type Of Dimension | BS1640, EN 10253 – 4, DIN 2605, JIS B2312, ANSI B16.9, MSS SP-75, ANSI B16.28, MSS-SP-43 Type A, MSS-SP-43 Type B, JIS B2313 |
| Type | Seamless / Welded / Fabricated |
| Pressure-Temperature Class | 150LB, 300LB, 600LB, 1500LB, 2500LB. |
| Schedule | Schedule 5 TO Schedule XXS. |
Super Duplex Steel S32760 pipe fittings consist of 24–26% chromium, 6–8% nickel, 3–4% molybdenum, and nitrogen, along with tungsten for enhancement of pitting resistance. It has an austenitic-ferritic balance of structure, providing high toughness and strength. Mechanical properties consist of yield strength of approximately 550 MPa, tensile strength of up to 800 MPa, and elongation of 25%. The high PREN of the alloy (generally in excess of 40) provides superior pitting, crevice corrosion, and stress corrosion cracking resistance, particularly in chloride-bearing and aggressive media.
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | Fe |
| S32760 | 0.05 max | 1.00 max | 1.00 max | 0.030 max | 0.010 max | 24.00 – 26.00 | 3.00 – 4.00 | 6.00 – 8.00 | 0.20 – 0.30 | 57.61 min |
| Grades | Density (g/cm 3) | Density (lb/in 3) | Melting Point (°C) | Melting Point (°F) |
| S32760 | 7.8 | 0.281 | 1350 | 2460 |
Heer Fittings is a leading supplier of Super Duplex Steel S32760 Pipe Fittings in Delhi, India. We offer an extensive range of Super Duplex Steel S32760 Pipe Fittings, renowned for their excellent corrosion resistance and high strength, which makes them perfect for demanding industrial applications like chemical processing, marine environments, and high-temperature systems. With a commitment to quality and reliable delivery, we ensure our clients receive top-tier products tailored to meet the specific needs of various industries.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| STANDARD | WERKSTOFF NR. | UNS |
| Super Duplex S32760 | 1.4410 | S32760 |
Super Duplex Steel S32760 Pipe Fittings from Heer Fittings offer exceptional corrosion resistance, especially in seawater and harsh environments. They are known for their high strength, durability, and resistance to pitting and crevice corrosion, ensuring long-lasting performance. We provide precise manufacturing, quality control, and reliable service for diverse industrial applications.

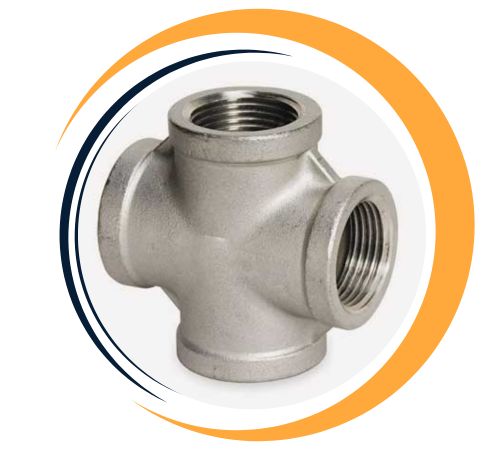

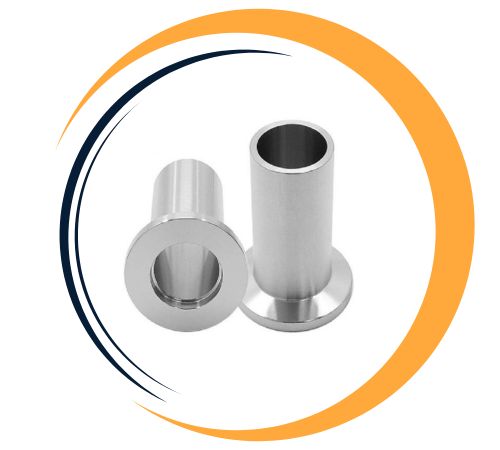

| Nominal Pipe Size | Outside Diameter | Caps | Straight Tees | Straight Crosses | Stub Ends | |||
| inch | mm | inch | Length (inch) | Center to End (inch) | Center to End (inch) | Lap Diameter (inch) | Long Length (inch) | Short Length (inch) |
| 1/2 | 21.3 | 0.840 | 1 | 1 | – | 1 3/8 | 3 | 2 |
| 3/4 | 26.7 | 1.050 | 1 | 1 1/8 | – | 1 11/16 | 3 | 2 |
| 1 | 33.4 | 1.315 | 1 1/2 | 1 1/2 | 1 1/2 | 2 | 4 | 2 |
| 1 1/4 | 42.2 | 1.660 | 1 1/2 | 1 7/8 | 1 7/8 | 2 1/2 | 4 | 2 |
| 1 1/2 | 48.3 | 1.900 | 1 1/2 | 2 1/4 | 2 1/4 | 2 7/8 | 4 | 2 |
| 2 | 60.3 | 2.375 | 1 1/2 | 2 1/2 | 2 1/2 | 3 5/8 | 6 | 2 1/2 |
| 2 1/2 | 73.0 | 2.875 | 1 1/2 | 3 | 3 | 4 1/8 | 6 | 2 1/2 |
| 3 | 88.9 | 3.500 | 2 | 3 3/8 | 3 3/8 | 5 | 6 | 2 1/2 |
| 3 1/2 | 101.6 | 4.000 | 2 1/2 | 3 3/4 | 3 3/4 | 5 1/2 | 6 | 3 |
| 4 | 114.3 | 4.500 | 2 1/2 | 4 1/8 | 4 1/8 | 6 3/16 | 6 | 3 |
| 5 | 141.3 | 5.563 | 3 | 4 7/8 | 4 7/8 | 7 5/16 | 8 | 3 |
| 6 | 168.3 | 6.625 | 3 1/2 | 5 5/8 | 5 5/8 | 8 1/2 | 8 | 3 1/2 |
| 8 | 219.1 | 8.625 | 4 | 7 | 7 | 10 5/8 | 8 | 4 |
| 10 | 273.1 | 10.750 | 5 | 8 1/2 | 8 1/2 | 12 3/4 | 10 | 5 |
| 12 | 323.9 | 12.750 | 6 | 10 | 10 | 15 | 10 | 6 |
Yes, custom sizes for Super Duplex Steel S32760 Pipe Fittings are available at Heer Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@heerfittings.com.
Super Duplex Steel S32760 pipe fittings find extensive application in harsh environments where there is a need for superior corrosion resistance and mechanical strength. They are generally used in offshore oil and gas platforms, subsea equipment, chemical processing, desalination plants, and marine structures. Due to their ability to resist chloride stress corrosion cracking, pitting, and erosion, they are suitable for high-pressure and corrosive systems. Further, S32760 fittings are long-lasting and low-maintenance with their cost-effectiveness making them a reliable option for industries that prioritize performance under severe conditions and reliability.
Get in touch with one of our Technical Sales Representatives to request a quote or get answers to any questions you may have.
