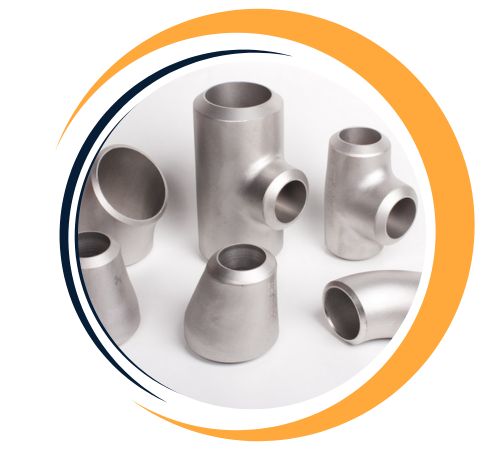

Heer Fittings, based in Delhi, India, is a trusted manufacturer and supplier of Super Duplex Steel UNS S32750 Buttweld Fittings, designed for superior strength and exceptional corrosion resistance in critical piping systems. These fittings include elbows, tees, reducers, and caps, manufactured with precision to meet global standards. Heer Fittings’ S32750 buttweld fittings are ideal for harsh industrial environments, offering excellent durability, leak-proof performance, and reliability. Serving sectors like offshore oil & gas, petrochemicals, and marine industries, the company ensures every product supports long service life and high performance in aggressive and high-pressure operating conditions.
| Specification | ASTM A815/ ASME SA815 |
| Standard | EN, ISO, DIN, JIS, NPT |
| Dimension Standard | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43 |
| Size | 1/8” NB TO 48” NB. (Seamless & 100% X-Ray Welded, Fabricated) |
| Thickness | SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75 |
| Bending Radius | R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom |
| Type Of Dimension | BS1640, EN 10253 – 4, DIN 2605, JIS B2312, ANSI B16.9, MSS SP-75, ANSI B16.28, MSS-SP-43 Type A, MSS-SP-43 Type B, JIS B2313 |
| Type | Seamless / Welded / Fabricated |
| Pressure-Temperature Class | 150LB, 300LB, 600LB, 1500LB, 2500LB. |
| Schedule | Schedule 5 TO Schedule XXS. |
Super Duplex Steel UNS S32750 Buttweld Fittings are made from an advanced alloy containing approximately 25% chromium, 7% nickel, 3–4% molybdenum, and nitrogen. This composition gives them excellent resistance to chloride-induced stress corrosion, pitting, and crevice corrosion. Mechanically, they offer outstanding tensile strength (minimum 800 MPa) and yield strength (minimum 550 MPa), along with excellent impact resistance and fatigue strength. The duplex (ferritic-austenitic) structure ensures a balance of toughness and strength, making these fittings suitable for high-load, corrosive environments where long-term reliability is crucial.
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | Fe |
| S32760 | 0.05 max | 1.00 max | 1.00 max | 0.030 max | 0.010 max | 24.00 – 26.00 | 3.00 – 4.00 | 6.00 – 8.00 | 0.20 – 0.30 | 57.61 min |
| Grades | Density (g/cm 3) | Density (lb/in 3) | Melting Point (°C) | Melting Point (°F) |
| S32760 | 7.8 | 0.281 | 1350 | 2460 |
Heer Fittings is a leading supplier of Super Duplex Steel UNS S32760 Buttweld Fittings in Delhi, India. We offer an extensive range of Super Duplex Steel UNS S32760 Buttweld Fittings, renowned for their excellent corrosion resistance and high strength, which makes them perfect for demanding industrial applications like chemical processing, marine environments, and high-temperature systems. With a commitment to quality and reliable delivery, we ensure our clients receive top-tier products tailored to meet the specific needs of various industries.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| STANDARD | WERKSTOFF NR. | UNS |
| Super Duplex S32760 | 1.4410 | S32760 |
Choose Super Duplex Steel UNS S32760 Buttweld Fittings from Heer Fittings for superior quality, exceptional corrosion resistance, and reliable performance in extreme conditions. We offer customized solutions backed by expert support and industry experience.
Super Duplex Steel UNS S32760 Buttweld Fittings offer numerous advantages, including superior resistance to corrosion, especially pitting and crevice corrosion, making them ideal for harsh environments. They provide high strength and excellent durability, ensuring reliability even under extreme conditions. The alloy also exhibits excellent resistance to stress corrosion cracking, which enhances its longevity. Additionally, these fittings have great weldability and formability, making them easy to fabricate. With their high toughness and resistance to high-temperature environments, they are a trusted choice for industries like chemical processing, marine, and oil & gas.
Yes, custom sizes for Super Duplex Steel UNS S32760 Buttweld Fittings are available at Heer Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@heerfittings.com
| Nominal Pipe Size | Outside Diameter | Caps | Straight Tees | Straight Crosses | Stub Ends | |||
| inch | mm | inch | Length (inch) | Center to End (inch) | Center to End (inch) | Lap Diameter (inch) | Long Length (inch) | Short Length (inch) |
| 1/2 | 21.3 | 0.840 | 1 | 1 | – | 1 3/8 | 3 | 2 |
| 3/4 | 26.7 | 1.050 | 1 | 1 1/8 | – | 1 11/16 | 3 | 2 |
| 1 | 33.4 | 1.315 | 1 1/2 | 1 1/2 | 1 1/2 | 2 | 4 | 2 |
| 1 1/4 | 42.2 | 1.660 | 1 1/2 | 1 7/8 | 1 7/8 | 2 1/2 | 4 | 2 |
| 1 1/2 | 48.3 | 1.900 | 1 1/2 | 2 1/4 | 2 1/4 | 2 7/8 | 4 | 2 |
| 2 | 60.3 | 2.375 | 1 1/2 | 2 1/2 | 2 1/2 | 3 5/8 | 6 | 2 1/2 |
| 2 1/2 | 73.0 | 2.875 | 1 1/2 | 3 | 3 | 4 1/8 | 6 | 2 1/2 |
| 3 | 88.9 | 3.500 | 2 | 3 3/8 | 3 3/8 | 5 | 6 | 2 1/2 |
| 3 1/2 | 101.6 | 4.000 | 2 1/2 | 3 3/4 | 3 3/4 | 5 1/2 | 6 | 3 |
| 4 | 114.3 | 4.500 | 2 1/2 | 4 1/8 | 4 1/8 | 6 3/16 | 6 | 3 |
| 5 | 141.3 | 5.563 | 3 | 4 7/8 | 4 7/8 | 7 5/16 | 8 | 3 |
| 6 | 168.3 | 6.625 | 3 1/2 | 5 5/8 | 5 5/8 | 8 1/2 | 8 | 3 1/2 |
| 8 | 219.1 | 8.625 | 4 | 7 | 7 | 10 5/8 | 8 | 4 |
| 10 | 273.1 | 10.750 | 5 | 8 1/2 | 8 1/2 | 12 3/4 | 10 | 5 |
| 12 | 323.9 | 12.750 | 6 | 10 | 10 | 15 | 10 | 6 |
| DN | Schedule 10S | Schedule 40S | Schedule 80S | ||||||
| 900 Elbow | 450 Elbow | Equal tee | 900 Elbow | 450 Elbow | Equal tee | 900 Elbow | 450 Elbow | Equal tee | |
| 8 | 0.02 | 0.01 | 0.03 | 0.03 | 0.02 | 0.06 | 0.04 | 0.03 | 0.07 |
| 10 | 0.03 | 0.02 | 0.05 | 0.03 | 0.02 | 0.03 | 0.06 | 0.04 | 0.09 |
| 15 | 0.06 | 0.03 | 0.09 | 0.08 | 0.04 | 0.10 | 0.10 | 0.05 | 0.14 |
| 20 | 0.07 | 0.03 | 0.13 | 0.08 | 0.04 | 0.17 | 0.11 | 0.05 | 0.20 |
| 25 | 0.14 | 0.08 | 0.28 | 0.15 | 0.11 | 0.29 | 0.22 | 0.14 | 0.38 |
| 32 | 0.23 | 0.11 | 0.49 | 0.26 | 0.17 | 0.59 | 0.40 | 0.23 | 0.68 |
| 40 | 0.30 | 0.17 | 0.68 | 0.40 | 0.23 | 0.86 | 0.51 | 0.29 | 1.02 |
| 50 | 0.50 | 0.25 | 0.85 | 0.70 | 0.4 | 1.28 | 0.91 | 0.59 | 1.59 |
| 65 | 0.85 | 0.48 | 1.41 | 1.40 | 0.77 | 2.19 | 1.81 | 0.99 | 3.13 |
| 80 | 1.25 | 0.63 | 1.77 | 2.20 | 1.08 | 3.31 | 2.97 | 1.50 | 4.45 |
| 90 | 1.70 | 0.75 | 2.67 | 2.83 | 1.42 | 4.08 | 4.00 | 2.00 | 5.44 |
| 100 | 2.10 | 1.08 | 3.46 | 4.47 | 2.09 | 5.27 | 6.18 | 2.81 | 7.71 |
| 150 | 5.45 | 2.72 | 8.07 | 10.89 | 5.44 | 10.99 | 16.32 | 8.16 | 13.61 |
| 200 | 10.20 | 5.33 | 15.65 | 21.54 | 10.77 | 20.91 | 33.11 | 16.56 | 28.12 |
| 250 | 18.15 | 9.75 | 26.46 | 38.56 | 19.27 | 35.38 | 51.71 | 25.86 | 49.90 |
| 300 | 25.80 | 13.62 | 39.46 | 59.42 | 29.71 | 62.14 | 79.38 | 39.69 | 83.91 |
Super Duplex Steel UNS S32750 Buttweld Fittings are widely used in industries that require both superior corrosion resistance and high mechanical strength. Key applications include subsea pipelines, offshore drilling platforms, heat exchangers, desalination plants, pressure vessels, and chemical process equipment. Their ability to withstand high pressure, extreme temperatures, and aggressive media makes them ideal for fluid transport systems in harsh environments. Additionally, their durability and low maintenance needs enhance operational efficiency, safety, and lifecycle value, making them a preferred choice for mission-critical infrastructure.
Get in touch with one of our Technical Sales Representatives to request a quote or get answers to any questions you may have.
