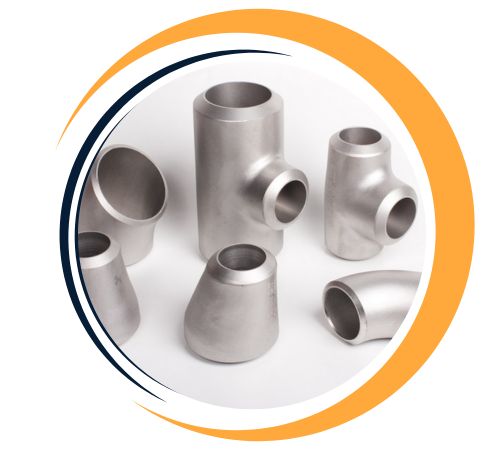

Heer Fittings, based in Delhi, India, stands out as a top manufacturer and supplier of Super Duplex Steel UNS S32760 Forged Fittings. These fittings are celebrated for their incredible strength and resistance to corrosion, even in the toughest industrial settings. Focusing on high-performance piping solutions, Heer Fittings offers a diverse array of forged fittings, including elbows, tees, couplings, and unions, all crafted with precision and adhering to international standards. These fittings are perfect for high-pressure, high-temperature, and aggressive media applications, making Heer Fittings a reliable partner for industries like oil & gas, chemicals, marine, and power.
Specifications : ASTM A182 / ASME SA182
Size: 1/2″NB TO 4″ NB IN
Class : 2000LBS, 3000LBS, 6000LBS, 9000LBS, etc.
Type: Socket Weld (S/W) and SCREWED (SCRD) – NPT, BSP, BSPT, Threaded Fittings.
Super Duplex Steel UNS S32760 Forged Fittings are made up of about 25% chromium, 7% nickel, 3.5% molybdenum, along with added tungsten and nitrogen to boost corrosion resistance. They boast impressive tensile strength (≥750 MPa), yield strength (≥550 MPa), and remarkable toughness, even in freezing conditions. The unique dual-phase microstructure of ferrite and austenite ensures excellent mechanical stability and resistance to stress corrosion cracking. These fittings hold their integrity under high pressure and harsh chemical exposure, making them a dependable choice for critical industrial applications.
| UNS | C | Si | Mn | P | S | Cr | Mo | Ni | N |
| S32760 | 0.030 | 0.80 | 1.20 | 0.035 | 0.020 | 24.0/26.0 | 3.0/5.0 | 6.00/8.00 | 0.24/0.32 |
| UNS | Grade | Proof Stress 0.2% (MPa) | Tensile Strength (MPa) | Elongation A5(%) | Hardness Max | |
| HB | HRB | |||||
| S32760 | 2760 | 550 | 795 | 15 | 310 | 32* |
Heer Fittings is a leading supplier of Super Duplex Steel UNS S32760 Fittings in Delhi, India. We offer an extensive range of Super Duplex Steel UNS S32760 Fittings, renowned for their excellent corrosion resistance and high strength, which makes them perfect for demanding industrial applications like chemical processing, marine environments, and high-temperature systems. With a commitment to quality and reliable delivery, we ensure our clients receive top-tier products tailored to meet the specific needs of various industries.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| Standard | Super Duplex S2760 |
| UNS | S32760 |
| WERKSTOFF NR. | 1.4410 |
Choose Super Duplex Steel UNS S32760 Forged Fittings from Heer Fittings for superior quality, exceptional corrosion resistance, and reliable performance in extreme conditions. We offer customized solutions backed by expert support and industry experience.
Super Duplex Steel UNS S32760 forged fittings offer several advantages, including exceptional corrosion resistance to chloride-induced stress corrosion cracking, pitting, and crevice corrosion. Their high tensile strength and excellent toughness make them ideal for use in harsh environments, such as offshore, marine, and chemical industries. These fittings are also highly resistant to erosion, ensuring durability and extended service life. Their ability to perform reliably in extreme temperatures and pressures makes them a preferred choice for critical applications, providing long-term performance and cost-efficiency in demanding industries.
Yes, custom sizes for Super Duplex Steel UNS S32760 Forged Fittings are available at Heer Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@heerfittings.com
| NPS (Normal Pipe Size) | O.D. (Outside Daimeter) | Elbow 90 Deg | Elbow 45 Deg | Return Elbow 180 Deg | ||||
|---|---|---|---|---|---|---|---|---|
| (inch) | Long Radius Elbow | Short Radius | Long Radius Elbow | Long Radius Elbow | ||||
| (millimeter/ MM) | (inch./ Inches) | Center to Face (Inches) | Center to Face (Inches) | Center to Face (Inches) | Radius (Inches) | Center to Center (Inches) | Back to face (Inches) | |
| 1/2 | 21.3 | 0.840 | 1 1/2 | – | 5/8 | 2 | 1 7/8 | |
| 3/4 | 26.7 | 1.050 | 1 1/8 | – | 7/16 | 2 1/4 | 1 11/16 | |
| 1 | 33.4 | 1.315 | 1 1/2 | 1 | 7/8 | 3 | 2 3/16 | |
| 1 1/4 | 42.2 | 1.660 | 1 7/8 | 1 1/4 | 1 | 3 3/4 | 2 3/4 | |
| 1 1/2 | 48.3 | 1.900 | 2 1/4 | 1 1/2 | 1 1/8 | 3 | 4 1/2 | 3 1/4 |
| 2 | 60.3 | 2.375 | 3 | 2 | 1 3/8 | 4 | 6 | 4 3/16 |
| 2 1/2 | 73.0 | 2.875 | 3 3/4 | 2 1/2 | 1 3/4 | 5 | 7 1/2 | 5 3/16 |
| 3 | 88.9 | 3.500 | 4 1/2 | 3 | 2 | 6 | 9 | 6 1/4 |
| 3 1/2 | 101.6 | 4.000 | 5 1/4 | 3 1/2 | 2 1/4 | 7 | 10 1/2 | 7 1/4 |
| 4 | 114.3 | 4.500 | 6 | 4 | 2 1/2 | 8 | 12 | 8 1/4 |
| 5 | 141.3 | 5.563 | 7 1/2 | 5 | 3 1/8 | 10 | 15 | 10 5/16 |
| 6 | 168.3 | 6.625 | 9 | 6 | 3 3/4 | 12 | 18 | 12 5/16 |
| 8 | 219.1 | 8.625 | 12 | 8 | 5 | 12 | 24 | 16 5/16 |
| 10 | 273.1 | 10.750 | 15 | 10 | 6 1/4 | 15 | 30 | 20 3/8 |
| 12 | 323.9 | 12.750 | 18 | 12 | 7 1/2 | 18 | 36 | 24 3/8 |
| DN (Normal Pipe Size) For ASME B16.9 | Schedule 10S | Schedule 40S | Schedule 80S | ||||||
| Elbow 90 Deg | Elbow 45 Deg | B16.9 Equal Tee | Elbow 90 Deg | Elbow 45 Deg | B16.9 Equal Tee | Elbow 90 Deg | Elbow 45 Deg | B16.9 Equal Tee | |
| 8 | 0.02 | 0.01 | 0.03 | 0.03 | 0.02 | 0.06 | 0.04 | 0.03 | 0.07 |
| 10 | 0.03 | 0.02 | 0.05 | 0.03 | 0.02 | 0.03 | 0.06 | 0.04 | 0.09 |
| 15 | 0.06 | 0.03 | 0.09 | 0.08 | 0.04 | 0.10 | 0.10 | 0.05 | 0.14 |
| 20 | 0.07 | 0.03 | 0.13 | 0.08 | 0.04 | 0.17 | 0.11 | 0.05 | 0.20 |
| 25 | 0.14 | 0.08 | 0.28 | 0.15 | 0.11 | 0.29 | 0.22 | 0.14 | 0.38 |
| 32 | 0.23 | 0.11 | 0.49 | 0.26 | 0.17 | 0.59 | 0.40 | 0.23 | 0.68 |
| 40 | 0.30 | 0.17 | 0.68 | 0.40 | 0.23 | 0.86 | 0.51 | 0.29 | 1.02 |
| 50 | 0.50 | 0.25 | 0.85 | 0.70 | 0.4 | 1.28 | 0.91 | 0.59 | 1.59 |
| 65 | 0.85 | 0.48 | 1.41 | 1.40 | 0.77 | 2.19 | 1.81 | 0.99 | 3.13 |
| 80 | 1.25 | 0.63 | 1.77 | 2.20 | 1.08 | 3.31 | 2.97 | 1.50 | 4.45 |
| 90 | 1.70 | 0.75 | 2.67 | 2.83 | 1.42 | 4.08 | 4.00 | 2.00 | 5.44 |
| 100 | 2.10 | 1.08 | 3.46 | 4.47 | 2.09 | 5.27 | 6.18 | 2.81 | 7.71 |
| 150 | 5.45 | 2.72 | 8.07 | 10.89 | 5.44 | 10.99 | 16.32 | 8.16 | 13.61 |
| 200 | 10.20 | 5.33 | 15.65 | 21.54 | 10.77 | 20.91 | 33.11 | 16.56 | 28.12 |
| 250 | 18.15 | 9.75 | 26.46 | 38.56 | 19.27 | 35.38 | 51.71 | 25.86 | 49.90 |
| 300 | 25.80 | 13.62 | 39.46 | 59.42 | 29.71 | 62.14 | 79.38 | 39.69 | 83.91 |
These Super Duplex Steel UNS S32760 Forged Fittings find extensive use in industries that demand strong resistance to harsh chemicals, chloride-rich environments, and heavy mechanical loads. You’ll commonly see them in subsea and offshore oil drilling systems, chemical processing units, heat exchangers, desalination plants, and power generation facilities. Their outstanding ability to resist pitting, crevice corrosion, and stress corrosion cracking makes them particularly suited for marine environments and fluid systems that operate under high pressure and temperature. With these fittings, you can expect long-lasting durability, lower maintenance needs, and enhanced operational safety, even in complex and aggressive service conditions.
