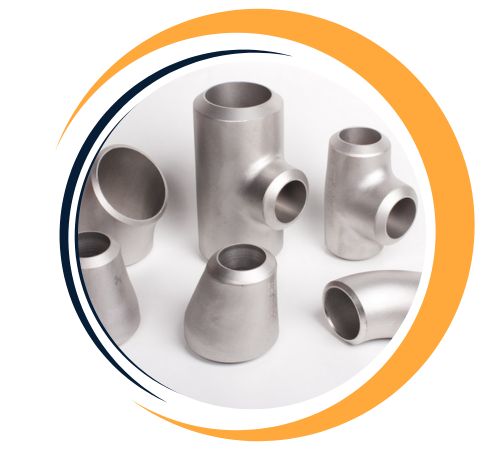

Heer Fittings is a well-known manufacturer and supplier of Inconel 617 Forged Fittings in Delhi, India, providing high-quality components suitable for severe temperature and corrosive applications. As per ASTM B564 and ASME B16.11 standards, these forged fittings in the form of elbows, tees, couplings, bushings, plugs, unions, and caps are designed for high-performance applications within thermal, petrochemical, and aerospace sectors. Inconel 617 is a nickel-chromium-cobalt-molybdenum alloy that has been particularly designed to possess outstanding resistance to oxidation and carburization at high temperatures, with excellent mechanical strength and metallurgical stability as well.
Specifications ASTM B366 / ASME SB366
Dimensions ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, MSS SP-79
Size 1/8” NB TO 48” NB. (Seamless & 100% X-Ray Welded, Fabricated)
Type Seamless / Welded / Fabricated
Bending Radius R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom
Thickness Sch 5s, Sch 10s, Sch 40s, Sch 80s, Sch 160s, Sch XXS
Grade Inconel 617 UNS (N06617), DIN (2.4663)
Inconel 617 has nearly 44.5–61% nickel, 20–24% chromium, 10–15% cobalt, and 8–10% molybdenum, along with traces of aluminum and carbon for improved high-temperature strength. The alloy has a tensile strength of approximately 690 MPa, yield strength of about 310 MPa, and elongation up to 35%. It shows excellent creep and rupture strength at temperatures above 980°C (1800°F). The alloy demonstrates excellent corrosion resistance in oxidizing and reducing environments and thus can be used for aggressive process conditions.
| C | Mn | S | Si | Cr | Mo | Ni | Cu | Ti | Al | B | Co | Fe |
| 0.05-0.15 | 1.0 Max | 0.015 Max | 1.0 Max | 20.0-24.0 | 8.0-10.0 | 44.5 Min | 0.5 Max | 0.6 Max | 0.8-1.5 | 0.006 Max | 10.0-15.0 | 3.0 Max |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.1 g/cm3 | 1411 °C (2571 °F) | Psi – 80,000 , MPa – 550 | Psi – 30,000 , MPa – 205 | 30 % |
Heer Fittings is a leading supplier of Inconel 617 Forged Fittings in Delhi, India. We offer an extensive range of Inconel 617 Forged Fittings, renowned for their excellent corrosion resistance and high strength, which makes them perfect for demanding industrial applications like chemical processing, marine environments, and high-temperature systems. With a commitment to quality and reliable delivery, we ensure our clients receive top-tier products tailored to meet the specific needs of various industries.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| STANDARD | UNS | WNR. |
| Alloy 617 | N06617 | 2.4663 |
Choose Inconel 617 Forged Fittings from Heer Fittings for superior quality, exceptional corrosion resistance, and reliable performance in extreme conditions. We offer customized solutions backed by expert support and industry experience.
Yes, custom sizes for Inconel 617 Forged Fittings are available at Heer Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@heerfittings.com
Inconel 617 Forged Fittings find broad applications in high-temperature process environments including gas turbines, heat recovery steam generators (HRSG), reformer outlet systems, and furnace components of the industrial furnace. They also have application in next-generation power plants, chemical reactors, and aerospace engine components where both heat and chemical resistance are of prime importance. These fittings guarantee long-term functionality within cyclic thermal loaded systems, erosive gas streams, and corrosive chemicals and compounds and constitute a reliable choice for severe service conditions requiring high metallurgical stability and mechanical strength.
Get in touch with one of our Technical Sales Representatives to request a quote or get answers to any questions you may have.
