Heer Fittings, a top-notch manufacturer and supplier located in Delhi, India, specializes in high-quality SMO 254 Forged Fittings that are built to endure the harshest corrosive and high-chloride environments. Renowned for their precision engineering and strict adherence to international standards, Heer Fittings delivers durable and dependable SMO 254 forged components for critical applications. These fittings are perfect for industries that demand exceptional resistance to pitting and crevice corrosion, such as offshore operations, desalination projects, and chemical processing. With cutting-edge infrastructure and a strong commitment to excellence, Heer Fittings guarantees consistent product performance, earning the trust of clients across various global industrial sectors.
| 254 Forged Fittings Specifications | ASTM A182/ ASME SA182 |
|---|---|
| 254 SMO Forged Fittings size | 1/8” NB to 4” NB (Socketweld & Screwed-Threaded) |
| 6 Moly Forged Fittings Dimensions | ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799 |
| SMO 254 Forged Fittings Types | Socketweld Fittings, Screwed-Threaded Fittings |
| ASTM A182 SMO 254 Forged Fittings Pressure Rating | Threaded End-2000lb/ 3000lb/ 6000lbs Socket-weld End-3000/ 6000/ 9000lbs |
| SMO 254 Forged Fittings Thread | NPT, BSPT, BSPP |
| SMO 254 Forged Fittings Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| SMO 254 Forged Fittings Origin & Mills | Japanese, Indian, USA, Korean, European, Ukraine, Russian |

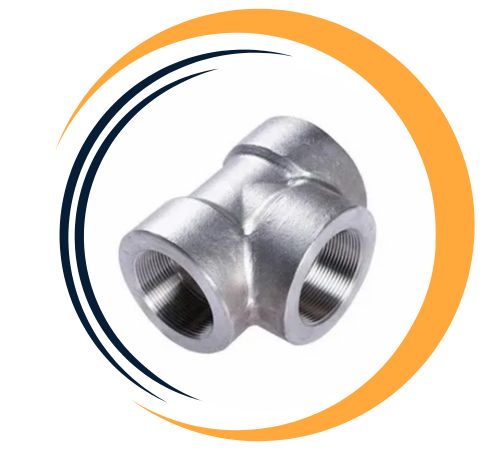

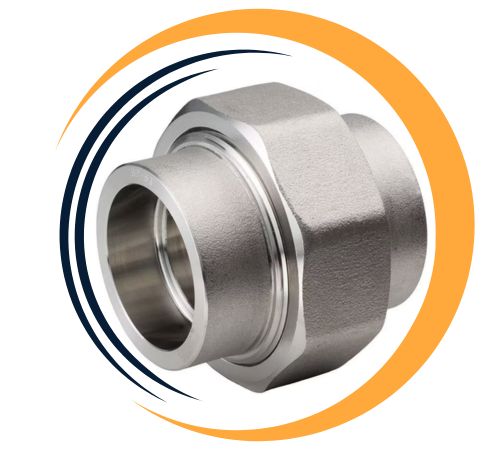

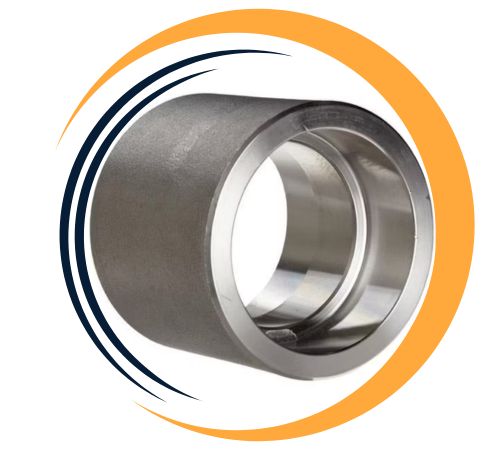

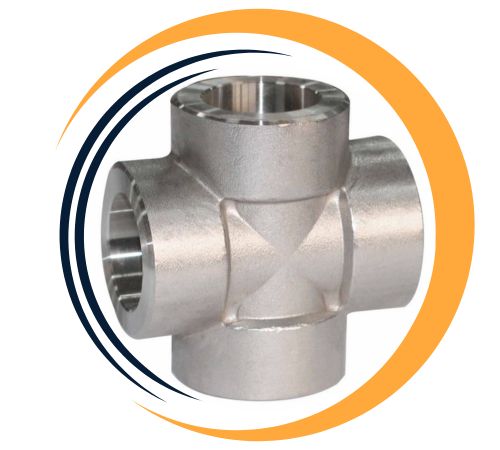

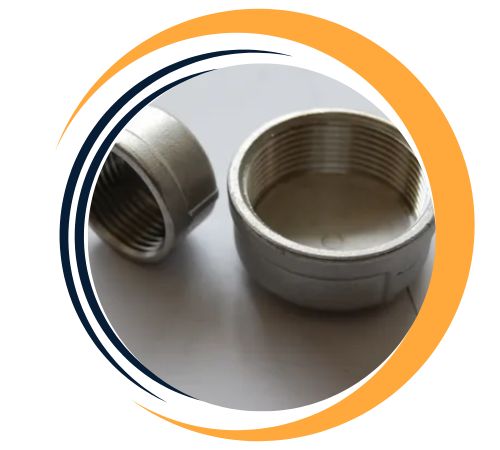

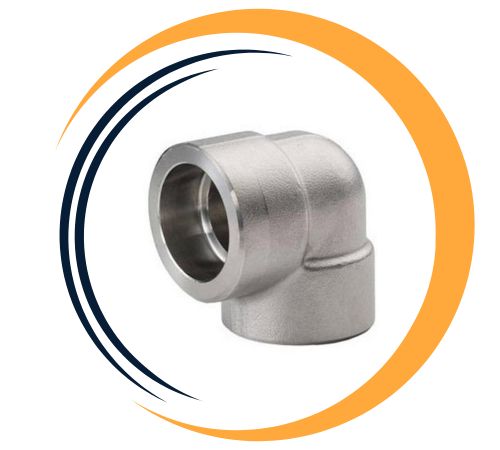

| Specialized manufacturer of | 90º Elbows, 45º Elbows, Tees, Cross, Couplings, Reducers, Inserts, Caps, Nipples, and Unions, Forged Pipe Fittings, Socket Weld & Threaded, Equal Tees & Reducing Tees, 90° & 45° Elbows, Plugs |
| Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175 | |
| Grade | Ni | Cr | Mo | Cu | N | C | Mn | Si | P | S |
| SMO 254 | 17.5 – 18.5 | 19.5 – 20.5 | 6 – 6.5 | 0.5 – 1 | 0.18 – 0.22 | 0.02 max | 1 max | 0.8 max | 0.03 max | 0.01 max |
| Density | Melting Point | Tensilee Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1320-1390 ℃ | 650 | 300 | 35 % |
SMO 254 Forged Fittings are made up of about 20% chromium, 18% nickel, 6% molybdenum, and 0.2% nitrogen, with the remainder being iron. This high-alloy austenitic stainless steel boasts impressive mechanical properties, including a tensile strength of up to 650 MPa and a yield strength of around 300 MPa. SMO 254 is particularly known for its outstanding resistance to pitting, crevice corrosion, and chloride stress corrosion cracking. The inclusion of nitrogen boosts its strength and corrosion resistance, making it an excellent choice for aggressive environments. Its remarkable mechanical and chemical stability makes it a go-to material for critical and high-performance applications.
Heer Fittings is a leading supplier of SMO 254 Forged Fittings in Delhi, India. We offer an extensive range of SMO 254 Forged Fittings, renowned for their excellent corrosion resistance and high strength, which makes them perfect for demanding industrial applications like chemical processing, marine environments, and high-temperature systems. With a commitment to quality and reliable delivery, we ensure our clients receive top-tier products tailored to meet the specific needs of various industries.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | KS | AFNOR | EN |
| SMO 254 | 1.4547 | S31254 | SIS 2378 | 904S13 | STS 317J5L | Z2 NCDU 25-20 | X1NiCrMoCu25-20-5 |
| ASTM A182 / A182M | Forged Fittings and valves and parts for high temperature service. Standard Specification for Wrought Austenitic SMO Forged Fittings |
| BS21 | Threading. |
| BS3799 | Specification for Steel pipe fittings, screwed and Socket-welding for the petroleum industry |
| ANSI B16.11 | Forged steel fittings socket-welding and threaded. Socket Welding and Threaded Forged Fittings |
| ANSI/ASME B1.20.1 | Pipe threads, general purpose (inch). |
| ISO 4144 | SMO fittings threaded to ISO 7-1. |
| MSS SP-95 | Swage(d) Nipples and Bull Plugs |
Choose SMO 254 Forged Fittings from Heer Fittings for superior quality, exceptional corrosion resistance, and reliable performance in extreme conditions. We offer customized solutions backed by expert support and industry experience.
SMO 254 Forged Fittings offer many advantages, including exceptional corrosion resistance, especially in high chloride environments, making them ideal for marine, chemical and petrochemical applications Their high molybdenum and chromium content pitting, cracking corrosion and stress corrosion cracks Provides excellent strength for . These fittings also exhibit good strength and durability, ensuring high tensile strength and yield strength, long-term performance in harsh conditions Furthermore, SMO 254 mesh fittings offer excellent weldability and formability, making them versatile for a wide range of industrial applications, providing reliability and cost – efficiency.
Yes, custom sizes for SMO 254 Forged Fittings are available at Heer Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@heerfittings.com
SMO 254 Forged Fittings find extensive use in industries that operate in extremely corrosive settings. In seawater and offshore applications, they are utilized for piping systems, heat exchangers, and ballast water systems thanks to their exceptional chloride resistance. The chemical and petrochemical sectors rely on these fittings in reactors, tanks, and processing lines that deal with acidic or chlorinated substances. In the pulp and paper industry, SMO 254 is used in bleach plants and digesters. Their high strength and corrosion resistance also make them ideal for desalination plants, power stations, and flue-gas cleaning systems.
