Heer Fittings is a trustworthy producer and exporter of Stainless Steel 321 / 321H Forged Fittings in Delhi, India. These stabilized stainless steels with titanium are engineered for use in high-temperature applications, providing superior resistance to intergranular corrosion following welding. SS 321 is suitable for most applications of continuous heating exposure, but 321H has a higher carbon composition, which offers improved creep strength for tougher applications. At Heer Fittings, we undertake precise manufacturing and international standards compliance to make our forged fittings compatible with critical applications in power plants, chemical plants, thermal processing, oil refineries, and aerospace industries in India and worldwide.
Specifications ASTM A182 & ASME SA182
Standard ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799
Size 1/8” NB to 4” NB (Socketweld & Screwed-Threaded)
Class 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS
Type Socketweld Fittings, Screwed-Threaded Fittings

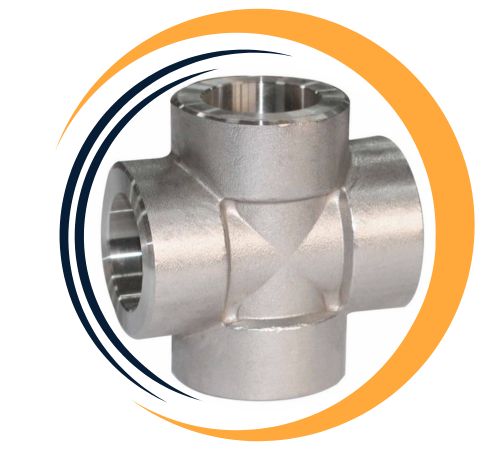

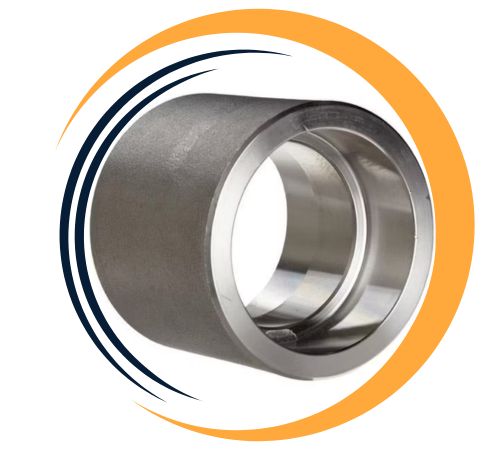

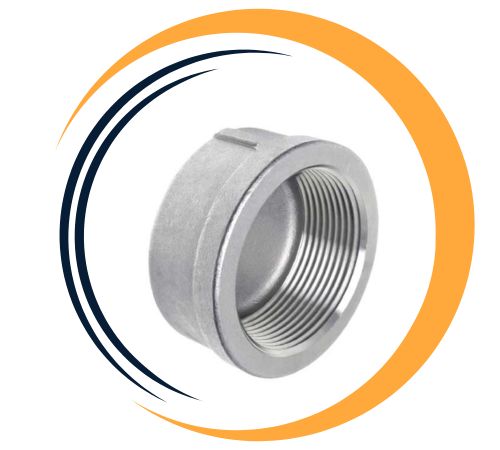

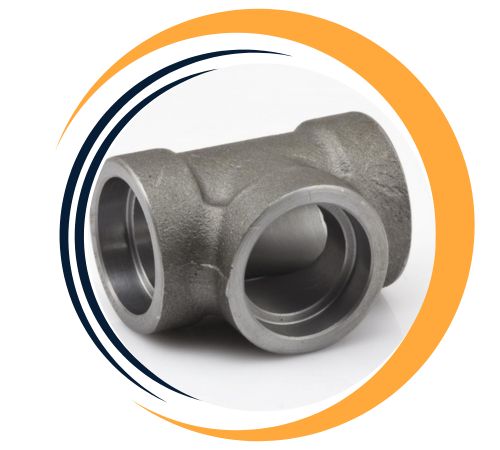

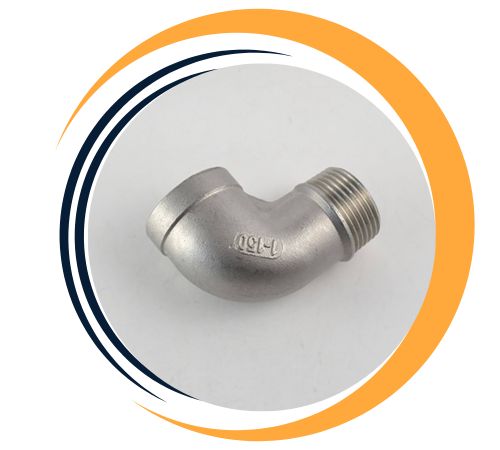

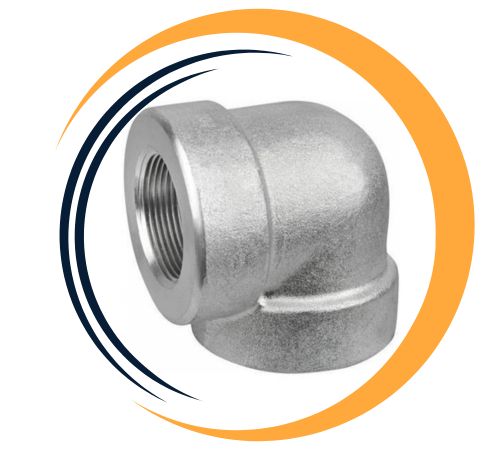

Forged Fittings Items : 45 Deg Elbow, 90 Deg Elbow, Forged Tee, Union, Full Coupling, Half Coupling, Cross, Cap, Swage Nipple, Plug, Bush, Welding Boss, Hexagonal Nipple etc.
Type Socketweld Fittings, Screwed-Threaded Fittings
Grade 321 / 321H UNS (S32100, S32109), DIN (1.4541, 1.4878)
Stainless Steel 321 / 321H Forged Fittings consist mainly of chromium (17–19%), nickel (9–12%), and titanium (min. 5 times carbon content). SS 321H contains more carbon (0.04–0.10%) than commercial 321, which provides a higher strength at high temperatures. They have a tensile strength of around 515 MPa, yield strength of 205 MPa, and elongation of about 40%. The presence of titanium inhibits carbide precipitation on welding to provide outstanding resistance to intergranular corrosion. Both grades have stable mechanical properties and oxidation resistance in high-temperature conditions and are thus favorable for long-term, high-temperature exposure applications.
| Grade | C | Mn | Si | P | S | Cr | N | Ni | Ti |
| SS 321 | 0.08 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 17.00 – 19.00 | 0.10 max | 9.00 – 12.00 | 5(C+N) – 0.70 max |
| SS 321H | 0.04 – 0.10 | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 17.00 – 19.00 | 0.10 max | 9.00 – 12.00 | 4(C+N) – 0.70 max |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1457 °C (2650 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
Heer Fittings is a leading supplier of Stainless Steel 321/321H Forged Fittings in Delhi, India. We offer an extensive range of Stainless Steel 321/321H Forged Fittings, renowned for their excellent corrosion resistance and high strength, which makes them perfect for demanding industrial applications like chemical processing, marine environments, and high-temperature systems. With a commitment to quality and reliable delivery, we ensure our clients receive top-tier products tailored to meet the specific needs of various industries.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| STANDARD | WERKSTOFF NR. | UNS | JIS | EN |
| SS 321 | 1.4541 | S32100 | SUS 321 | X6CrNiTi18-10 |
| SS 321H | 1.4878 | S32109 | SUS 321H | X12CrNiTi18-9 |
Choose Stainless Steel 321/321H Forged Fittings from Heer Fittings for superior quality, exceptional corrosion resistance, and reliable performance in extreme conditions. We offer customized solutions backed by expert support and industry experience.
Yes, custom sizes for Stainless Steel 321/321H Forged Fittings are available at Heer Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@heerfittings.com
| Fitting Schedule/Class | Pipe Size – Pipe Fitting | Fitting Connection Type | Pipe Fitting Material | Max. Pressure |
|---|---|---|---|---|
| Class 150 | 1/2″ | FNPT | Stainless Steel 321 | 150 psi |
| Class 150 | 1/2″ | FNPT | Stainless Steel 321 | 150 psi |
| Class 150 | 1/2″ | Forged | Forged Stainless Steel 321 | 275 psi |
| Class 150 | 1/2″ | Welded | Stainless Steel 321 | 150 psi |
| Class 150 | 3/4″ | FNPT | Stainless Steel 321 | 150 psi |
| Class 150 | 3/4″ | FNPT | Stainless Steel 321 | 150 psi |
| Class 150 | 3/4″ | Forged | Forged Stainless Steel 321 | 275 psi |
| Class 150 | 3/4″ | Welded | Stainless Steel 321 | 150 psi |
| Class 150 | 3/4″ | Welded | Stainless Steel 321 | 150 psi |
| Class 150 | 1″ | FNPT | Stainless Steel 321 | 150 psi |
| Class 150 | 1″ | FNPT | Stainless Steel 321 | 150 psi |
| Class 150 | 1″ | Forged | Forged Stainless Steel 321 | 275 psi |
| Class 150 | 1″ | Welded | Stainless Steel 321H | 150 psi |
| Class 150 | 1″ | Welded | Stainless Steel 321 | 150 psi |
| Class 150 | 1-1/4″ | FNPT | Stainless Steel 321 | 150 psi |
| Class 150 | 1-1/4″ | FNPT | Stainless Steel 321 | 150 psi |
| Class 150 | 1-1/4″ | Forged | Forged Stainless Steel 321 | 275 psi |
| Class 150 | 1-1/4″ | Welded | Stainless Steel 321H | 150 psi |
| Class 150 | 1-1/4″ | Welded | Stainless Steel 321H | 150 psi |
| Class 150 | 1-1/2″ | FNPT | Stainless Steel 321 | 150 psi |
| Class 150 | 1-1/2″ | FNPT | Stainless Steel 321 | 150 psi |
| Class 150 | 1-1/2″ | Forged | Forged Stainless Steel 321H | 275 psi |
| Class 150 | 1-1/2″ | Welded | Stainless Steel 321H | 150 psi |
| Class 150 | 1-1/2″ | Welded | Stainless Steel 321 | 150 psi |
| Class 150 | 2″ | FNPT | Stainless Steel 321 | 150 psi |
| Class 150 | 2″ | FNPT | Stainless Steel 321 | 150 psi |
| Class 150 | 2″ | Forged | Forged Stainless Steel 321H | 275 psi |
| Class 150 | 2″ | Welded | Stainless Steel 321 | 150 psi |
| Class 150 | 2″ | Welded | Stainless Steel 321 | 150 psi |
| Class 150 | 2-1/2″ | FNPT | Stainless Steel 321 | 150 psi |
| Class 150 | 2-1/2″ | FNPT | Stainless Steel 321 | 150 psi |
| Class 150 | 2-1/2″ | Forged | Forged Stainless Steel 321 | 275 psi |
| Class 150 | 2-1/2″ | Welded | Stainless Steel 321H | 150 psi |
| Class 150 | 2-1/2″ | Welded | Stainless Steel 321 | 150 psi |
| Class 150 | 3″ | FNPT | Stainless Steel 321 | 150 psi |
| Class 150 | 3″ | FNPT | Stainless Steel 321 | 150 psi |
| Class 150 | 3″ | Forged | Forged Stainless Steel 321H | 275 psi |
| Class 150 | 3″ | Welded | Stainless Steel 321 | 150 psi |
| Class 150 | 4″ | FNPT | Stainless Steel 321 | 150 psi |
| Class 150 | 4″ | FNPT | Stainless Steel 321 | 150 psi |
| Class 150 | 4″ | Forged | Forged Stainless Steel 321H | 275 psi |
| Class 150 | 4″ | Welded | Stainless Steel 321 | 150 psi |
| Class 150 | 4″ | Welded | Stainless Steel 321 | 150 psi |
| Class 150 | 6″ | FNPT | Stainless Steel 321 | 150 psi |
| Class 150 | 6″ | FNPT | Stainless Steel 321 | 150 psi |
| Class 150 | 6″ | Welded | Stainless Steel 321H | 150 psi |
| Class 150 | 6″ | Welded | Stainless Steel 321 | 150 psi |
| DN-NPT | MAJOR DIAMETER MM | TAPPING DRILL SIZE MM | TPI | PITCH MM |
|---|---|---|---|---|
| 1/16″ | 7.895 | 6.00 | 27 | 0.941 |
| 1/8″ | 10.242 | 8.25 | 27 | 0.941 |
| 1/4″ | 13.616 | 10.70 | 18 | 1.411 |
| 3/8″ | 17.055 | 14.10 | 18 | 1.411 |
| 1/2″ | 21.223 | 17.40 | 14 | 1.814 |
| 3/4″ | 26.568 | 22.60 | 14 | 1.814 |
| 1″ | 33.228 | 28.50 | 11.5 | 2.209 |
| 1¼” | 41.985 | 37.00 | 11.5 | 2.209 |
| 1½” | 48.054 | 43.50 | 11.5 | 2.209 |
| 2″ | 60.092 | 55.00 | 11.5 | 2.209 |
| 2½” | 72.699 | 65.50 | 8 | 3.175 |
| 3″ | 88.608 | 81.50 | 8 | 3.175 |
| 3½” | 101.316 | 94.30 | 8 | 3.175 |
| 4″ | 113.973 | 107.00 | 8 | 3.175 |
| 5″ | 141.300 | 134.384 | 8 | 3.175 |
| 6″ | 168.275 | 161.191 | 8 | 3.175 |
| 8″ | 219.075 | 211.673 | 8 | 3.175 |
| 10″ | 273.050 | 265.311 | 8 | 3.175 |
| 12″ | 323.850 | 315.793 | 8 | 3.175 |
321 / 321H Stainless Steel Forged Fittings are used extensively in applications where there is extended exposure to high temperatures and corrosive environments. Typical uses include heat exchangers, exhaust systems, boiler fittings, superheater tubes, and refinery processing equipment. SS 321 is normally found in welded constructions where sensitization should be eliminated, whereas 321H is chosen for increased strength and creep resistance under high-pressure and high-temperature applications. These fittings are also utilized in chemical plants for processing, thermal processing equipment, aerospace assemblies, and marine systems. Their superior weldability, resistance to oxidation, and strength reliability make them the first choice for high-demand industrial processes.
