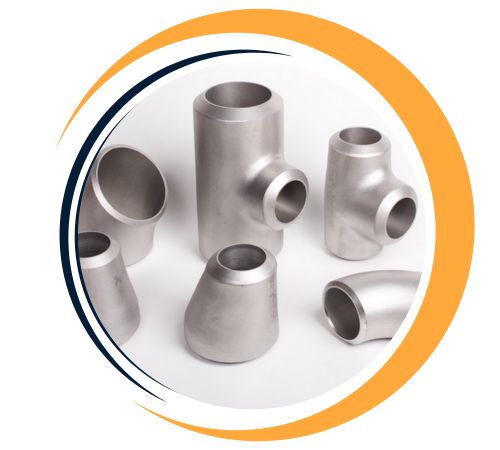

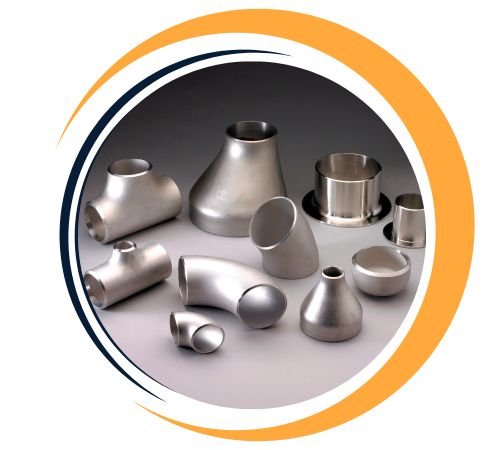

Heer Fittings is a trusted ASTM A860 WPHY 42 Pipe Fittings manufacturer and supplier from Delhi, India, providing high-strength and long-lasting components for high-pressure piping systems. These fittings in the form of elbows, tees, reducers, and caps are produced according to ASTM A860 and ASME B16.9 standards. WPHY 42, or “Wrought Pipe High Yield” grade 42, refers to a minimum yield strength of 42,000 psi, making these fittings appropriate for heavy-duty applications in oil and gas transmission, petrochemical plants, and infrastructure pipelines. Heer Fittings guarantees accurate fabrication and rigorous testing to satisfy stringent industry needs.
| Specifications | ASTM A860/ ASME SA860 |
|---|---|
| Grade | WPHY 42 |
| Dimension | ASME/ ANSI B16.9 | BS10 | ASME B16.28 | BS1560 | BS4504 | MSS-SP-43 |
| Thickness of Fittings | SCH 10, SCH20, SCH 30, STD SCH 40, SCH 60, XS, SCH80, SCH100, SCH 120, SCH 140, SCH160, XXS available with NACE MR 01-75 |
| Types | Seamless | Welded | Fabricated |
| Bending Radius | R= 1D, 8D, 3D, 2D, 6D, 5D, 10D |
| Size Range | ½” NB to 24″ NB in Sch 10s, 40s, 80s, 160s, XXS. (DN6~DN100) |
| Size Ranges | Seamless ButtWeld Fitting: From 1/2″ – 10″ Welded ButtWeld Fitting: From 1/2″ – 48″ |
| Process of Manufacturing | Push, Press, Cast, Forge. |
WPHY 42 fittings are constructed from carbon steel with tightly controlled materials like manganese, silicon, phosphorus, and sulfur. These fitting components are most often heat-treated using normalizing or quenching and tempering procedures to improve mechanical strength. The minimum yield point is 290 MPa, and the tensile strength is normally between 415 and 585 MPa. The material offers excellent impact resistance, weldability, and toughness under a variety of operational conditions, including ambient and moderately low temperatures.
| Grade | P | Mn | S | Si | Ni | Cr | Mo | Cu | Ti | Cb | V | Al |
| WPHY42 | 1.00-1.45 | 0.20 | 0.03 | 0.01 | 0.15-0.40 | 0.50 | 0.30 | 0.25 | 0.35 | 0.10 | 0.05 | 0.04 |
| Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 515-690 | 415 | 28 % |
Heer Fittings is a leading supplier of ASTM A860 WPHY 42 Pipe Fittings in Delhi, India. We offer an extensive range of ASTM A860 WPHY 42 Pipe Fittings, renowned for their excellent corrosion resistance and high strength, which makes them perfect for demanding industrial applications like chemical processing, marine environments, and high-temperature systems. With a commitment to quality and reliable delivery, we ensure our clients receive top-tier products tailored to meet the specific needs of various industries.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Choose ASTM A860 WPHY 42 Pipe Fittings from Heer Fittings for superior quality, exceptional corrosion resistance, and reliable performance in extreme conditions. We offer customized solutions backed by expert support and industry experience.
Yes, custom sizes for ASTM A860 WPHY 42 Pipe Fittings are available at Heer Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@heerfittings.com
| Nominal Pipe Size | Outside Diameter | Caps | Straight Tees | Straight Crosses | Stub Ends | |||
| inch | mm | inch | Length (inch) | Center to End (inch) | Center to End (inch) | Lap Diameter (inch) | Long Length (inch) | Short Length (inch) |
| 1/2 | 21.3 | 0.840 | 1 | 1 | – | 1 3/8 | 3 | 2 |
| 3/4 | 26.7 | 1.050 | 1 | 1 1/8 | – | 1 11/16 | 3 | 2 |
| 1 | 33.4 | 1.315 | 1 1/2 | 1 1/2 | 1 1/2 | 2 | 4 | 2 |
| 1 1/4 | 42.2 | 1.660 | 1 1/2 | 1 7/8 | 1 7/8 | 2 1/2 | 4 | 2 |
| 1 1/2 | 48.3 | 1.900 | 1 1/2 | 2 1/4 | 2 1/4 | 2 7/8 | 4 | 2 |
| 2 | 60.3 | 2.375 | 1 1/2 | 2 1/2 | 2 1/2 | 3 5/8 | 6 | 2 1/2 |
| 2 1/2 | 73.0 | 2.875 | 1 1/2 | 3 | 3 | 4 1/8 | 6 | 2 1/2 |
| 3 | 88.9 | 3.500 | 2 | 3 3/8 | 3 3/8 | 5 | 6 | 2 1/2 |
| 3 1/2 | 101.6 | 4.000 | 2 1/2 | 3 3/4 | 3 3/4 | 5 1/2 | 6 | 3 |
| 4 | 114.3 | 4.500 | 2 1/2 | 4 1/8 | 4 1/8 | 6 3/16 | 6 | 3 |
| 5 | 141.3 | 5.563 | 3 | 4 7/8 | 4 7/8 | 7 5/16 | 8 | 3 |
| 6 | 168.3 | 6.625 | 3 1/2 | 5 5/8 | 5 5/8 | 8 1/2 | 8 | 3 1/2 |
| 8 | 219.1 | 8.625 | 4 | 7 | 7 | 10 5/8 | 8 | 4 |
| 10 | 273.1 | 10.750 | 5 | 8 1/2 | 8 1/2 | 12 3/4 | 10 | 5 |
| 12 | 323.9 | 12.750 | 6 | 10 | 10 | 15 | 10 | 6 |
| DN | Schedule 10S | Schedule 40S | Schedule 80S | ||||||
| 900 Elbow | 450 Elbow | Equal tee | 900 Elbow | 450 Elbow | Equal tee | 900 Elbow | 450 Elbow | Equal tee | |
| 8 | 0.02 | 0.01 | 0.03 | 0.03 | 0.02 | 0.06 | 0.04 | 0.03 | 0.07 |
| 10 | 0.03 | 0.02 | 0.05 | 0.03 | 0.02 | 0.03 | 0.06 | 0.04 | 0.09 |
| 15 | 0.06 | 0.03 | 0.09 | 0.08 | 0.04 | 0.10 | 0.10 | 0.05 | 0.14 |
| 20 | 0.07 | 0.03 | 0.13 | 0.08 | 0.04 | 0.17 | 0.11 | 0.05 | 0.20 |
| 25 | 0.14 | 0.08 | 0.28 | 0.15 | 0.11 | 0.29 | 0.22 | 0.14 | 0.38 |
| 32 | 0.23 | 0.11 | 0.49 | 0.26 | 0.17 | 0.59 | 0.40 | 0.23 | 0.68 |
| 40 | 0.30 | 0.17 | 0.68 | 0.40 | 0.23 | 0.86 | 0.51 | 0.29 | 1.02 |
| 50 | 0.50 | 0.25 | 0.85 | 0.70 | 0.4 | 1.28 | 0.91 | 0.59 | 1.59 |
| 65 | 0.85 | 0.48 | 1.41 | 1.40 | 0.77 | 2.19 | 1.81 | 0.99 | 3.13 |
| 80 | 1.25 | 0.63 | 1.77 | 2.20 | 1.08 | 3.31 | 2.97 | 1.50 | 4.45 |
| 90 | 1.70 | 0.75 | 2.67 | 2.83 | 1.42 | 4.08 | 4.00 | 2.00 | 5.44 |
| 100 | 2.10 | 1.08 | 3.46 | 4.47 | 2.09 | 5.27 | 6.18 | 2.81 | 7.71 |
| 150 | 5.45 | 2.72 | 8.07 | 10.89 | 5.44 | 10.99 | 16.32 | 8.16 | 13.61 |
| 200 | 10.20 | 5.33 | 15.65 | 21.54 | 10.77 | 20.91 | 33.11 | 16.56 | 28.12 |
| 250 | 18.15 | 9.75 | 26.46 | 38.56 | 19.27 | 35.38 | 51.71 | 25.86 | 49.90 |
| 300 | 25.80 | 13.62 | 39.46 | 59.42 | 29.71 | 62.14 | 79.38 | 39.69 | 83.91 |
ASTM A860 WPHY 42 Pipe Fittings are commonly utilized in oil and gas pipelines, water transportation systems, and structural piping systems where strength, pressure retention, and reliability are crucial. These fittings are suitable for systems with moderate mechanical stress and constant pressure levels, offering a cost-effective alternative without compromising on safety or durability. Their high weldability, reliable performance, and flexibility in site installations make them a first pick for engineering contractors and pipeline operators globally.
Get in touch with one of our Technical Sales Representatives to request a quote or get answers to any questions you may have.
