ASTM A860 WPHY 65 Pipe Fittings

Heer Fittings is a reliable supplier and manufacturer of ASTM A860 WPHY 65 Pipe Fittings from Delhi, India, providing high-strength parts for demanding high-pressure piping networks. These fittings—elbows, tees, reducers, and caps—are produced in accordance with ASTM A860 and ASME B16.9 standards. WPHY 65 is “Wrought Pipe High Yield” with a minimum yield point of 65,000 psi and finds applications in high-profile uses in oil and gas pipelines, offshore drilling rigs, petrochemical facilities, and power generation plants. Heer Fittings guarantees accurate engineering, sturdy design, and safe operation under high-pressure conditions.

ASTM A860 WPHY 65 Pipe Fittings Price List in Delhi, ASTM A860 WPHY 65 Pipe Fittings Supplier in India, ASTM A860 WPHY 65 Pipe Fittings Exporter in Delhi, ASTM A860 WPHY 65 Pipe Fittings Supplier in Delhi, ASTM A860 WPHY 65 Pipe Fittings Exporter in Delhi, ASTM A860 WPHY 65 Pipe Fittings Size Chart, ASTM A860 WPHY 65 Pipe Fittings Price in India, ASTM A860 WPHY 65 Pipe Fittings in Delhi, ASTM A860 WPHY 65 Pipe Fittings Supplier in Delhi, ASTM A860 WPHY 65 Pipe Fittings Stockist in India, ASTM A860 WPHY 65 Pipe Fittings Exporter in India

ASTM A860 WPHY 65 Pipe Fittings Specification

Grade Specification	Carbon Steel: ASTM/ASME A234 WPB / A860 – MSS-SP-75 WPHY 65
Type	Seamless / Welded / Fabricated
Bending Radius	R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom
Range	½”NB to 48″NB in Sch 10s, 40s, 80s, 160s, XXS.
Dimensions	ANSI/ASME B16.9, B16.28, MSS-SP-43.

WPHY 65 fittings are primarily made from carbon steel with controlled compositions of manganese, silicon, sulfur, and phosphorus. These alloys are subjected to heat treatment—usually normalizing or quenching and tempering—to acquire the desired mechanical strength. The fittings provide a minimum yield strength of 450 MPa and tensile strength from 530 to 760 MPa, with satisfactory ductility and impact properties. The balanced mechanical properties of the alloy enable it to operate reliably under both ambient and subzero temperatures, and thus it can be applied to above-ground and underground pipeline installations.

ASTM A860 WPHY 65 Pipe Fittings Chemical Compostion

	C	Mn	P	S	Si	Ni	Cr	Mo	Cu	Ti	V	Cb	Al
A860	0.20	1.00-1.45	0.03	0.01	0.15-0.40	0.50	0.30	0.25	0.35	0.05	0.10	0.04	0.06

ASTM A860 WPHY 65 Pipe FittingsMechanical Properties

Mechanical Properties	Tensile (MPa)	Yield (MPa)	Elongation % 2in
WPHY65	530-705	450	28

ASTM A860 WPHY 65 Pipe Fittings Exporter in India, ASTM A860 WPHY 65 Pipe Fittings Price List in Delhi, ASTM A860 WPHY 65 Pipe Fittings Supplier in India, ASTM A860 WPHY 65 Pipe Fittings Exporter in Delhi, ASTM A860 WPHY 65 Pipe Fittings Exporter in Delhi, ASTM A860 WPHY 65 Pipe Fittings in India, ASTM A860 WPHY 65 Pipe Fittings Size Chart, ASTM A860 WPHY 65 Pipe Fittings Price in India, ASTM A860 WPHY 65 Pipe Fittings Weight Chart, ASTM A860 WPHY 65 Pipe Fittings Supplier in Delhi, ASTM A860 WPHY 65 Pipe Fittings Stockist in India

Largest ASTM A860 WPHY 65 Pipe Fittings Supplier in Delhi, India

Heer Fittings is a leading supplier of ASTM A860 WPHY 65 Pipe Fittings in Delhi, India. We offer an extensive range of ASTM A860 WPHY 65 Pipe Fittings, renowned for their excellent corrosion resistance and high strength, which makes them perfect for demanding industrial applications like chemical processing, marine environments, and high-temperature systems. With a commitment to quality and reliable delivery, we ensure our clients receive top-tier products tailored to meet the specific needs of various industries.

We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.

If You Are Looking To Buy High Quality

Why Choose ASTM A860 WPHY 65 Pipe Fittings from Heer Fittings?

Choose ASTM A860 WPHY 65 Pipe Fittings from Heer Fittings for superior quality, exceptional corrosion resistance, and reliable performance in extreme conditions. We offer customized solutions backed by expert support and industry experience.

ASTM A860 WPHY 65 Pipe Fittings Exporter in India, ASTM A860 WPHY 65 Pipe Fittings Sizes in mm, ASTM A860 WPHY 65 Pipe Fittings Manufacturer in Delhi, ASTM A860 WPHY 65 Pipe Fittings Thickne Alloy Steel Weld Neck, ASTM A860 WPHY 65 Pipe Fittings Supplier in Delhi, ASTM A860 WPHY 65 Pipe Fittings Price List in Delhi, ASTM A860 WPHY 65 Pipe Fittings Distributor in Delhi, ASTM A860 WPHY 65 Pipe Fittings Supplier in Delhi, ASTM A860 WPHY 65 Pipe Fittings Distributor in India

Customer Support

Largest Inventory

On Time Deliveries

ISO Certified

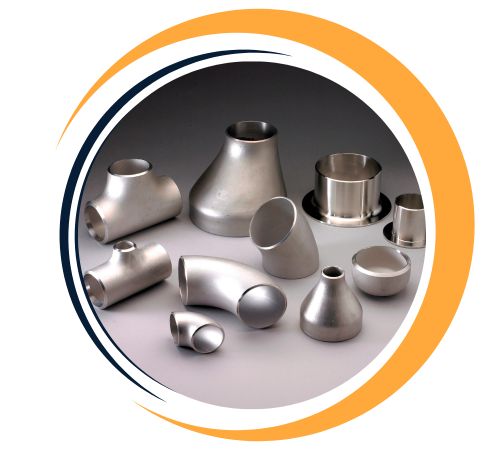

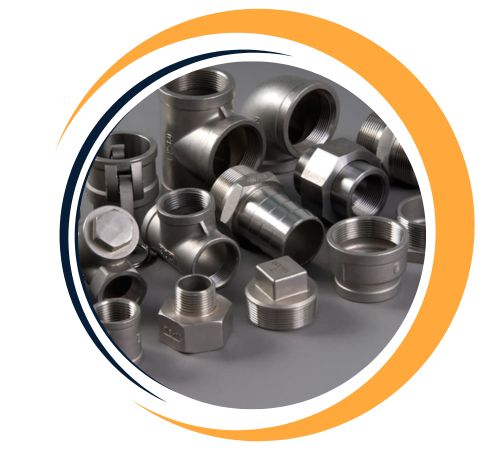

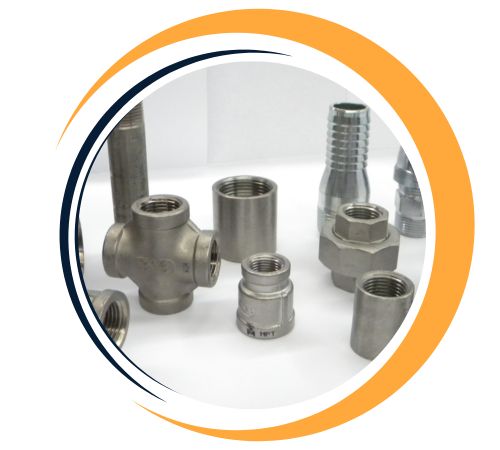

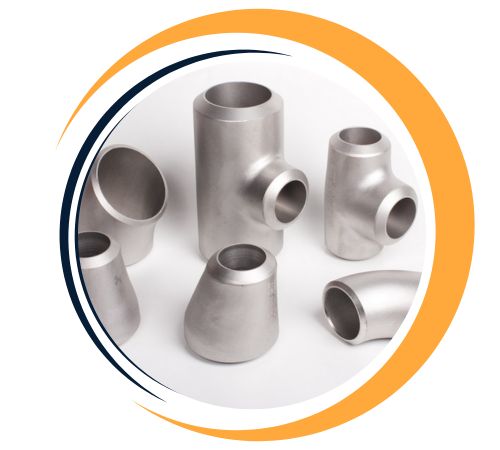

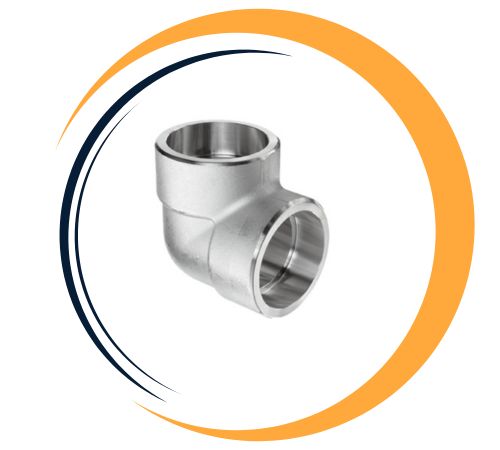

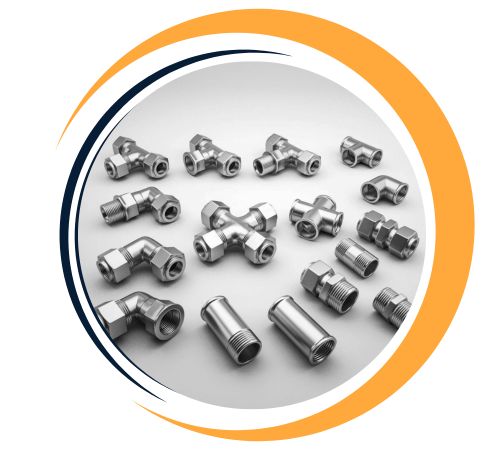

Types of ASTM A860 WPHY 65 Pipe Fittings

Are Custom Sizes Available for ASTM A860 WPHY 65 Pipe Fittings?

Yes, custom sizes for ASTM A860 WPHY 65 Pipe Fittings are available at Heer Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@heerfittings.com

ASTM A860 WPHY 65 Pipe Fittings Dimensions

Nominal Pipe Size	Outside Diameter		Caps	Straight Tees	Straight Crosses	Stub Ends
inch	mm	inch	Length (inch)	Center to End (inch)	Center to End (inch)	Lap Diameter (inch)	Long Length (inch)	Short Length (inch)
1/2	21.3	0.840	1	1	–	1 3/8	3	2
3/4	26.7	1.050	1	1 1/8	–	1 11/16	3	2
1	33.4	1.315	1 1/2	1 1/2	1 1/2	2	4	2
1 1/4	42.2	1.660	1 1/2	1 7/8	1 7/8	2 1/2	4	2
1 1/2	48.3	1.900	1 1/2	2 1/4	2 1/4	2 7/8	4	2
2	60.3	2.375	1 1/2	2 1/2	2 1/2	3 5/8	6	2 1/2
2 1/2	73.0	2.875	1 1/2	3	3	4 1/8	6	2 1/2
3	88.9	3.500	2	3 3/8	3 3/8	5	6	2 1/2
3 1/2	101.6	4.000	2 1/2	3 3/4	3 3/4	5 1/2	6	3
4	114.3	4.500	2 1/2	4 1/8	4 1/8	6 3/16	6	3
5	141.3	5.563	3	4 7/8	4 7/8	7 5/16	8	3
6	168.3	6.625	3 1/2	5 5/8	5 5/8	8 1/2	8	3 1/2
8	219.1	8.625	4	7	7	10 5/8	8	4
10	273.1	10.750	5	8 1/2	8 1/2	12 3/4	10	5
12	323.9	12.750	6	10	10	15	10	6

ASTM A860 WPHY 65 Pipe Fittings Weight Chart

DN	Schedule 10S			Schedule 40S			Schedule 80S
900 Elbow	450 Elbow	Equal tee	900 Elbow	450 Elbow	Equal tee	900 Elbow	450 Elbow	Equal tee
8	0.02	0.01	0.03	0.03	0.02	0.06	0.04	0.03	0.07
10	0.03	0.02	0.05	0.03	0.02	0.03	0.06	0.04	0.09
15	0.06	0.03	0.09	0.08	0.04	0.10	0.10	0.05	0.14
20	0.07	0.03	0.13	0.08	0.04	0.17	0.11	0.05	0.20
25	0.14	0.08	0.28	0.15	0.11	0.29	0.22	0.14	0.38
32	0.23	0.11	0.49	0.26	0.17	0.59	0.40	0.23	0.68
40	0.30	0.17	0.68	0.40	0.23	0.86	0.51	0.29	1.02
50	0.50	0.25	0.85	0.70	0.4	1.28	0.91	0.59	1.59
65	0.85	0.48	1.41	1.40	0.77	2.19	1.81	0.99	3.13
80	1.25	0.63	1.77	2.20	1.08	3.31	2.97	1.50	4.45
90	1.70	0.75	2.67	2.83	1.42	4.08	4.00	2.00	5.44
100	2.10	1.08	3.46	4.47	2.09	5.27	6.18	2.81	7.71
150	5.45	2.72	8.07	10.89	5.44	10.99	16.32	8.16	13.61
200	10.20	5.33	15.65	21.54	10.77	20.91	33.11	16.56	28.12
250	18.15	9.75	26.46	38.56	19.27	35.38	51.71	25.86	49.90
300	25.80	13.62	39.46	59.42	29.71	62.14	79.38	39.69	83.91

ASTM A860 WPHY 65 Pipe Fittings Supplier in Delhi, ASTM A860 WPHY 65 Pipe Fittings Weight Chart, ASTM A860 WPHY 65 Pipe Fittings Exporter in India, ASTM A860 WPHY 65 Pipe Fittings Manufacturer in Delhi, ASTM A860 WPHY 65 Pipe Fittings Price List in Delhi, ASTM A860 WPHY 65 Pipe Fittings Sizes in mm, ASTM A860 WPHY 65 Pipe Fittings Distributor in Delhi, ASTM A860 WPHY 65 Pipe Fittings in India, ASTM A860 WPHY 65 Pipe Fittings Distributor in India

Application Industry of ASTM A860 WPHY 65 Pipe Fittings

ASTM A860 WPHY 65 Pipe Fittings are commonly employed in oil, gas, water, and other fluid transmission and distribution systems under high pressure. They are particularly precious in systems subjected to dynamic loading, pressure fluctuation, and mechanical stress. They offer good weldability, toughness, and corrosion resistance when appropriately coated or treated, supporting long service life under extreme conditions. With greater strength and longevity, WPHY 65 fittings are an economical option for infrastructure applications demanding performance, safety, and code compliance.
