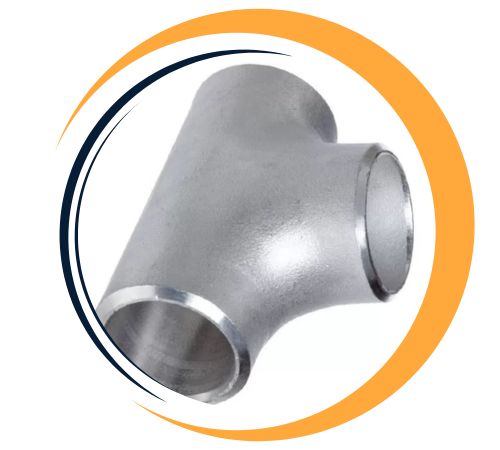

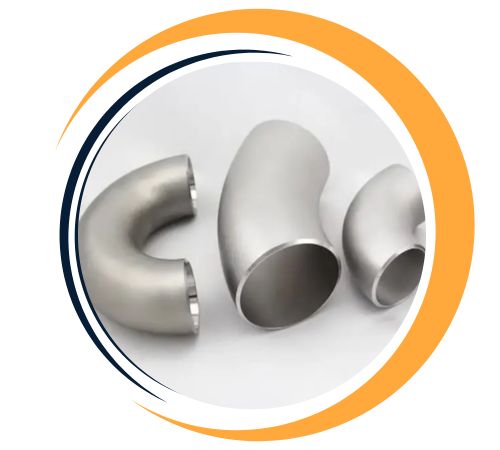

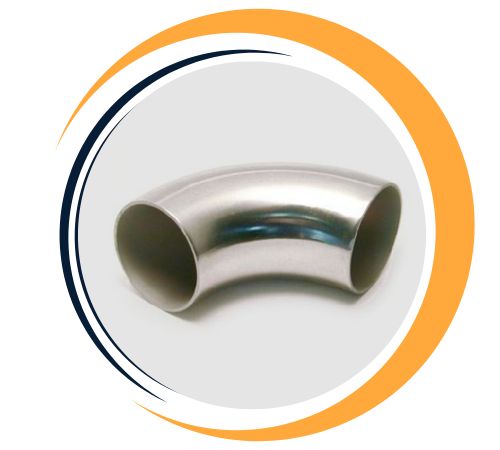

Heer Fittings makes and delivers Stainless Steel 17-4 PH Pipe Fittings in Delhi, India, for high-strength, moderate corrosion resistance, and excellent mechanical performance across a broad variety of environments in use. These pipe fittings in customary shapes like elbows, tees, reducers, caps, and crosses, conforming to specifications such as ASTM A403 and ASME B16.9, are used in high-temperature and high-pressure piping systems in aerospace, power generation, petrochemical, and general engineering industries.
| Specification | ASTM A403 / ASME SA403 |
| Standard | EN, ISO, DIN, JIS, NPT |
| Dimension Standard | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43 |
| Thickness | SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75 |
| Size | 1/8” NB TO 48” NB. (Seamless & 100% X-Ray Welded, Fabricated) |
| Bending Radius | R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom |
| Type | Seamless / Welded / Fabricated |
| Pressure-Temperature Class | 150LB, 300LB, 600LB, 1500LB, 2500LB. |
| Schedule | Schedule 5 TO Schedule XXS. |
| Type Of Dimension | BS1640, EN 10253 – 4, DIN 2605, JIS B2312, ANSI B16.9, MSS SP-75, ANSI B16.28, MSS-SP-43 Type A, MSS-SP-43 Type B, JIS B2313 |
Stainless Steel 17-4 PH (UNS S17400) is a martensitic precipitation-hardening stainless steel that contains about 17% chromium, 4% nickel, and small percentages of copper (3–5%) and niobium. It offers high strength, tensile up to 1310 MPa, yield up to 1180 MPa, and elongation about 10–20%, depending on the heat treatment condition (H900 to H1150). The alloy has good corrosion resistance, especially in atmospheric and slightly corrosive conditions, and maintains mechanical properties to 600°F (316°C).
| Grade | C | Cb+Ta | Cr | Cu | Fe | Mn | Ni | P | S | Si |
| SS 17-4 PH | 0.07 max | 0.15-0.45 | 15.00-17.50 | 3.00-5.00 | Bal | 1.0 max | 3.0-5.0 | 0.40 max | 0.03 max | 1.0 max |
| Grade | Tensile Strength ksi (MPa) | Yield Strength 0.2% ksi (min) | Elongation % | Hardness (Rockwell) MAX |
| SS 17-4 PH | 170000 psi | 140000 psi | 6% | 38 |
Heer Fittings one of the largest suppliers of Stainless Steel 17-4 PH Pipe Fittings in Delhi, India. We specialize in providing a wide range of high-quality, durable fittings for various industrial applications. Our inventory includes elbows, tees, reducers, couplings, and other essential fittings designed to offer exceptional corrosion resistance and strength. Stainless Steel 17-4 PH is known for its cost-effectiveness and excellent mechanical properties, making it ideal for industries such as construction, chemical processing, and food processing. With a commitment to customer satisfaction, timely delivery, and competitive pricing, we are the trusted choice for Stainless Steel 17-4 PH Pipe Fittings in the India.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Stainless Steel 17-4 PH Pipe Fittings from Heer Fittings offer exceptional corrosion resistance, especially in seawater and harsh environments. They are known for their high strength, durability, and resistance to pitting and crevice corrosion, ensuring long-lasting performance. We provide precise manufacturing, quality control, and reliable service for diverse industrial applications.
Stainless Steel 17-4 PH Pipe Fittings offer numerous advantages, including excellent corrosion resistance, even in harsh environments such as marine and chemical industries. Their high strength-to-weight ratio and superior mechanical properties ensure durability and reliability under high-pressure and high-temperature conditions. These fittings are easy to machine and weld, providing versatility in various applications. The alloy’s precipitation-hardening capability allows for adjustable strength levels through heat treatment, enhancing its adaptability. Additionally, they exhibit minimal distortion during heat processing, making them an ideal choice for precision-demanding applications like aerospace and petrochemical industries.
Yes, custom sizes are available for Stainless Steel 17-4 PH Pipe Fittings to meet specific requirements. We offer tailored solutions to ensure precise fit and performance for various applications. For more information, please contact us at sales@heerfittings.com.
| STANDARD | WERKSTOFF NR. | UNS |
| SS 17-4 PH | 1.4542 | S17400 |
17-4 PH Pipe Fittings are applied in aerospace components, nuclear reactor systems, turbine blades, chemical processing facilities, paper and pulp mills, and offshore equipment. With their ideal combination of weldability, machinability, and single heat treatment hardenability, the fittings are perfect for applications where strength, toughness, and corrosion resistance combined are needed. They find application in pressurized systems, high-load piping structures, and precision flow in harsh environments.
Get in touch with one of our Technical Sales Representatives to request a quote or get answers to any questions you may have.
