Heer Fittings, based in Delhi, India, has built a solid reputation as a manufacturer and supplier of Stainless Steel 316L Pipe Fittings. They specialize in providing top-notch piping solutions designed for industries that demand exceptional corrosion resistance and outstanding weldability. Their extensive lineup of 316L pipe fittings includes elbows, tees, reducers, and caps, all crafted in line with ASTM A403 standards. Heer Fittings is well-known for its dedication to product reliability, precise dimensions, and prompt delivery, catering to sectors like pharmaceuticals, chemical processing, marine, and food processing, both in India and around the globe.
| Dimensions | ASME B16.28, MSS-SP-43, ASME/ANSI B16.9, BS4504, BS10, BS4504, BS1560, |
|---|---|
| Thickness | SCH10, SCH 80, SCH 100, SCH20, SCH30, STD SCH40, SCH 160, XXS, SCH60, XS, SCH 120, SCH 140, available with NACE MR 01-75 |
| Type | DN15-DN1200 |
| Connection | Welding |
| Bending Radius | R=2D, 3D, 5D, 6D, 8D, 1D, 10D or Custom |
| Manufacturing process | Press, Forge, Push, Cast, etc. |

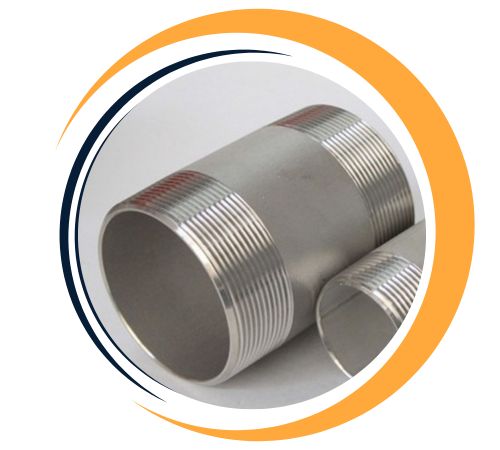

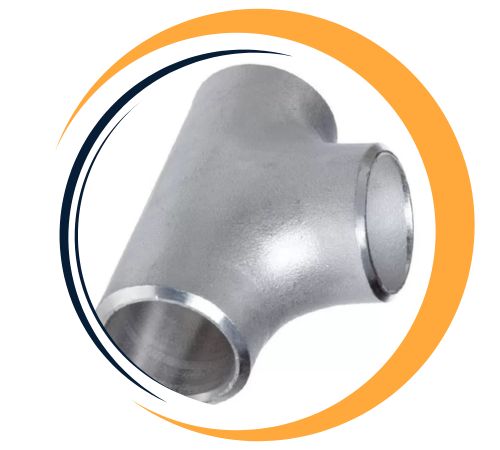

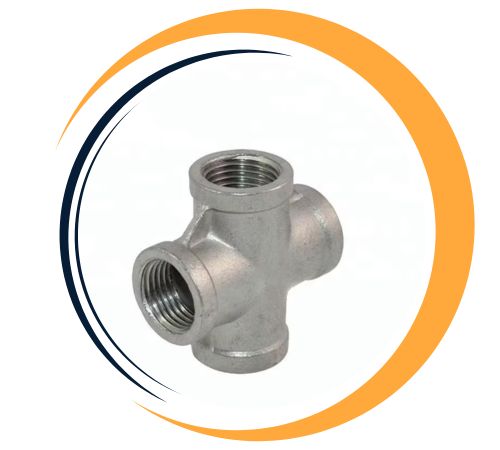

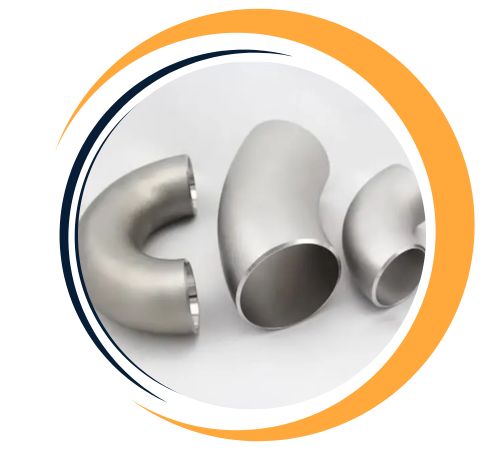

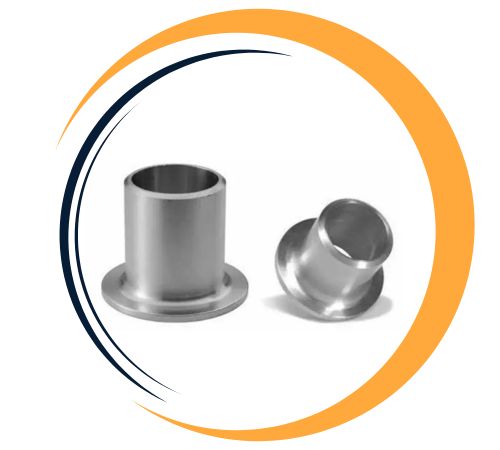

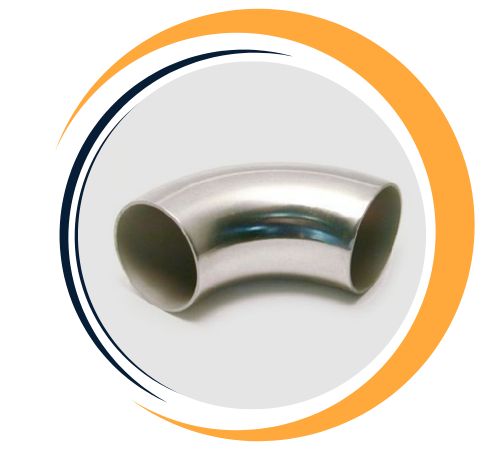

| Specialized manufacturer of | Tees, Crosses, Reducers, 90º Elbows, Stub End, Pipe Bend, 45º Elbows, Pipe Cap |
The Stainless Steel 316L Pipe Fittings are made up of chromium (16–18%), nickel (10–14%), and molybdenum (2–3%), featuring a low carbon content (maximum 0.03%) that boosts corrosion resistance and reduces carbide precipitation during welding. These fittings boast a tensile strength of about 485 MPa and a yield strength of roughly 170 MPa, along with good elongation and toughness. The inclusion of molybdenum enhances their resistance to pitting and crevice corrosion, particularly in environments rich in chloride, making them perfect for welded and high-purity applications.
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Fe |
| SS 316L | 0.035 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 16.00 – 18.00 | 2.00 – 3.00 | 10.00 – 14.00 | 68.89 min |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1399 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
Heer Fittings one of the largest suppliers of Stainless Steel 316L Pipe Fittings in Delhi, India. We specialize in providing a wide range of high-quality, durable fittings for various industrial applications. Our inventory includes elbows, tees, reducers, couplings, and other essential fittings designed to offer exceptional corrosion resistance and strength. Stainless Steel 316L is known for its cost-effectiveness and excellent mechanical properties, making it ideal for industries such as construction, chemical processing, and food processing. With a commitment to customer satisfaction, timely delivery, and competitive pricing, we are the trusted choice for Stainless Steel 316L Pipe Fittings in the India.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Stainless Steel 316L Pipe Fittings from Heer Fittings offer exceptional corrosion resistance, especially in seawater and harsh environments. They are known for their high strength, durability, and resistance to pitting and crevice corrosion, ensuring long-lasting performance. We provide precise manufacturing, quality control, and reliable service for diverse industrial applications.
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| SS 316L | 1.4404 / 1.4435 | S31603 | SUS 316L | 316S11 / 316S13 | 03Ch17N14M3 / 03Ch17N14M2 | Z3CND17-11-02 / Z3CND18-14-03 | X2CrNiMo17-12-2 / X2CrNiMo18-14-3 |
SS 316L Pipe Fittings offer exceptional corrosion resistance, particularly in chloride-rich environments, making them ideal for marine, chemical, and food processing industries. The low carbon content enhances weldability and reduces the risk of carbide precipitation, ensuring excellent performance in high-temperature applications. These fittings are highly durable, resistant to pitting, crevice corrosion, and stress corrosion cracking. They also maintain strength and integrity in aggressive environments, offering long-lasting reliability. Stainless Steel 316L fittings are easy to fabricate, install, and maintain, making them a trusted choice for demanding industrial applications.
| Nom. Pipe Size | 90° Elbows | 45° Elbows | 180° Return Bends | Tees | Lap Joint Stub Ends | Caps | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Long Rad. | Short Rad. | 3R | Long Rad. | 3R | Long Rad. | Short Rad. | C | M | F | G | R | E | |||
| A | A | A | B | B | O | K | O | K | |||||||
| ½ | 1.50 | – | – | 0.62 | – | 3.00 | 1.88 | – | – | 1.00 | 1.00 | 3.00 | 1.38 | 0.12 | 1.00 |
| ¾ | 1.50 | – | – | 0.75 | – | 3.00 | 2.00 | – | – | 1.12 | 1.12 | 3.00 | 1.69 | 0.12 | 1.00 |
| 1 | 1.50 | 1.00 | – | 0.88 | – | 3.00 | 2.19 | 2.00 | 1.62 | 1.50 | 1.50 | 4.00 | 2.00 | 0.12 | 1.50 |
| 1¼ | 1.88 | 1.25 | – | 1.00 | – | 3.75 | 2.75 | 2.50 | 2.06 | 1.88 | 1.88 | 4.00 | 2.50 | 0.19 | 1.50 |
| 1½ | 2.25 | 1.50 | – | 1.12 | – | 4.50 | 3.25 | 3.00 | 2.44 | 2.25 | 2.25 | 4.00 | 2.88 | 0.25 | 1.50 |
| 2 | 3.00 | 2.00 | 6.00 | 1.38 | 2.50 | 6.00 | 4.19 | 4.00 | 3.19 | 2.50 | 2.50 | 6.00 | 3.62 | 0.31 | 1.50 |
| 2½ | 3.75 | 2.50 | 7.50 | 1.75 | 3.12 | 7.50 | 5.19 | 5.00 | 3.94 | 3.00 | 3.00 | 6.00 | 4.12 | 0.31 | 1.50 |
| 3 | 4.50 | 3.00 | 9.00 | 2.00 | 3.75 | 9.00 | 6.25 | 6.00 | 4.75 | 3.38 | 3.38 | 6.00 | 5.00 | 0.38 | 2.00 |
| 3½ | 5.25 | 3.50 | 10.50 | 2.25 | – | 10.50 | 7.25 | 7.00 | 5.50 | 3.75 | 3.75 | 6.00 | 5.50 | 0.38 | 2.50 |
| 4 | 6.00 | 4.00 | 12.00 | 2.50 | 5.00 | 12.00 | 8.25 | 8.00 | 6.25 | 4.12 | 4.12 | 6.00 | 6.19 | 0.44 | 2.50 |
| 5 | 7.50 | 5.00 | 15.00 | 3.12 | – | 15.00 | 10.31 | 10.00 | 7.75 | 4.88 | 4.88 | 8.00 | 7.31 | 0.44 | 3.00 |
| 6 | 9.00 | 6.00 | 18.00 | 3.75 | 7.44 | 18.00 | 12.31 | 12.00 | 9.31 | 5.62 | 5.62 | 8.00 | 8.50 | 0.50 | 3.50 |
| 8 | 12.00 | 8.00 | 24.00 | 5.00 | 9.94 | 24.00 | 16.31 | 16.00 | 12.31 | 7.00 | 7.00 | 8.00 | 10.62 | 0.50 | 4.00 |
| 10 | 15.00 | 10.00 | 30.00 | 6.25 | 12.44 | 30.00 | 20.38 | 20.00 | 15.38 | 8.50 | 8.50 | 10.00 | 12.75 | 0.50 | 5.00 |
| 12 | 18.00 | 12.00 | 36.00 | 7.50 | 14.88 | 36.00 | 24.38 | 24.00 | 18.38 | 10.00 | 10.00 | 10.00 | 15.00 | 0.50 | 6.00 |
| 14 | 21.00 | 14.00 | 42.00 | 8.75 | 17.38 | 42.00 | 28.00 | 28.00 | 21.00 | 11.00 | 11.00 | 12.00 | 16.25 | 0.50 | 6.50 |
| 16 | 24.00 | 16.00 | 48.00 | 10.00 | 19.88 | 48.00 | 32.00 | 32.00 | 24.00 | 12.00 | 12.00 | 12.00 | 18.50 | 0.50 | 7.00 |
| 18 | 27.00 | 18.00 | 54.00 | 11.25 | 22.38 | 54.00 | 36.00 | 36.00 | 27.00 | 13.50 | 13.50 | 12.00 | 21.00 | 0.5 | 8.00 |
| 20 | 30.00 | 20.00 | 60.00 | 12.50 | 24.88 | 60.00 | 40.00 | 40.00 | 30.00 | 15.00 | 15.00 | 12.00 | 23.00 | 0.50 | 9.00 |
| 22 | 33.00 | 22.00 | 66.00 | 13.50 | 27.31 | 66.00 | 44.00 | 44.00 | 33.00 | 16.50 | 16.50 | 12.00 | 25.25 | 0.50 | 10.00 |
| 24 | 36.00 | 24.00 | 72.00 | 15.00 | 29.81 | 72.00 | 48.00 | 48.00 | 36.00 | 17.00 | 17.00 | 12.00 | 27.25 | 0.50 | 10.50 |
| 26 | 39.00 | – | 78.00 | 16.00 | 32.31 | – | – | – | – | 19.50 | 19.50 | – | – | – | 10.50 |
| 28 | 42.00 | – | 84.00 | 17.25 | 34.75 | – | – | – | – | 20.50 | 20.50 | – | – | – | 10.50 |
| 30 | 45.00 | – | 90.00 | 18.50 | 37.25 | – | – | – | – | 22.00 | 22.00 | – | – | – | 10.50 |
| 32 | 48.00 | – | – | 19.75 | – | – | – | – | – | 23.50 | 23.50 | – | – | – | 10.50 |
| 34 | 51.00 | – | 102.00 | 21.00 | 42.25 | – | – | – | – | 25.00 | 25.00 | – | – | – | 10.50 |
| 36 | 54.00 | – | 108.00 | 22.25 | 44.69 | – | – | – | – | 26.50 | 26.50 | – | – | – | 10.50 |
| 38 | 57.00 | – | 114.00 | 23.62 | 47.25 | – | – | – | – | 28.00 | 28.00 | – | – | – | 12.00 |
| 40 | 60.00 | – | 120.00 | 24.88 | 49.75 | – | – | – | – | 29.50 | 29.50 | – | – | – | 12.00 |
| 42 | 63.00 | – | 126.00 | 26.00 | 52.19 | – | – | – | – | 30.00 | 28.00 | – | – | – | 12.00 |
| 44 | 66.00 | – | 132.00 | 27.38 | 54.69 | – | – | – | – | 32.00 | 30.00 | – | – | – | 13.50 |
| 46 | 69.00 | – | 138.00 | 28.62 | 57.19 | – | – | – | – | 33.50 | 31.50 | – | – | – | 13.50 |
| 48 | 72.00 | – | 144.00 | 29.88 | 59.69 | – | – | – | – | 35.00 | 33.00 | – | – | – | 13.50 |
Yes, custom sizes are available for Stainless Steel 316L Pipe Fittings to meet specific requirements. We offer tailored solutions to ensure precise fit and performance for various applications. For more information, please contact us at sales@heerfittings.com.
| NPS (inch) | Pipe Sch. | Wall Thk. (in) | OD (inch) | Temperature | ||||
|---|---|---|---|---|---|---|---|---|
| 100 | 200 | 300 | 400 | 500 | ||||
| Allowable Stress (Pressure Rating) | ||||||||
| 16700 | 16700 | 16700 | 15500 | 14400 | ||||
| 1″ | 40 | 0.133 | 1.315 | 2205 | 2205 | 2205 | 2047 | 1902 |
| 80 | 0.179 | 1.315 | 3061 | 3061 | 3061 | 2841 | 2640 | |
| 160 | 0.250 | 1.315 | 4493 | 4493 | 4493 | 4170 | 3874 | |
| 1 1/2″ | 40 | 0.145 | 1.900 | 1629 | 1629 | 1629 | 1512 | 1404 |
| 80 | 0.200 | 1.900 | 2303 | 2303 | 2303 | 2138 | 1986 | |
| 160 | 0.281 | 1.900 | 3362 | 3362 | 3362 | 3120 | 2899 | |
| 2″ | 40 | 0.154 | 2.375 | 1371 | 1371 | 1371 | 1272 | 1182 |
| 80 | 0.218 | 2.375 | 1985 | 1985 | 1985 | 1843 | 1712 | |
| 160 | 0.344 | 2.375 | 3283 | 3283 | 3283 | 3047 | 2831 | |
| 3″ | 40 | 0.216 | 3.500 | 1301 | 1301 | 1301 | 1208 | 1122 |
| 80 | 0.300 | 3.500 | 1844 | 1844 | 1844 | 1712 | 1590 | |
| 160 | 0.438 | 3.500 | 2787 | 2787 | 2787 | 2587 | 2403 | |
| 4″ | 40 | 0.237 | 4.500 | 1102 | 1102 | 1102 | 1023 | 950 |
| 80 | 0.337 | 4.500 | 1596 | 1596 | 1596 | 1482 | 1377 | |
| 160 | 0.531 | 4.500 | 2611 | 2611 | 2611 | 2424 | 2552 | |
| 5″ | 40 | 0.258 | 5.563 | 965 | 965 | 965 | 896 | 832 |
| 80 | 0.375 | 5.563 | 1428 | 1428 | 1428 | 1325 | 1231 | |
| 160 | 0.625 | 5.563 | 2474 | 2474 | 2474 | 2296 | 2133 | |
| 6″ | 40 | 0.280 | 6.625 | 877 | 877 | 877 | 814 | 756 |
| 80 | 0.432 | 6.625 | 1379 | 1379 | 1379 | 1280 | 1189 | |
| 160 | 0.719 | 6.625 | 2382 | 2382 | 2382 | 2211 | 2054 | |
| 8″ | 40 | 0.322 | 8.625 | 771 | 771 | 771 | 716 | 665 |
| 80 | 0.500 | 8.625 | 1218 | 1218 | 1218 | 1131 | 1050 | |
| 160 | 0.906 | 8.625 | 2298 | 2298 | 2298 | 2133 | 1982 | |
| 10″ | 40 | 0.365 | 10.750 | 699 | 699 | 699 | 649 | 603 |
| 80 | 0.594 | 10.750 | 1159 | 1159 | 1159 | 1075 | 999 | |
| 160 | 1.125 | 10.750 | 2289 | 2289 | 2289 | 2124 | 1974 | |
You’ll find Stainless Steel 316L Pipe Fittings widely used in industries such as pharmaceuticals, chemical and food processing, marine engineering, and wastewater treatment. Their low carbon content minimizes the risk of sensitization and intergranular corrosion, making them ideal for applications that require frequent welding and sterilization. These fittings are reliable in chloride-containing environments and are well-suited for piping systems that encounter corrosive media. SS 316L pipe fittings ensure leak-proof, corrosion-resistant, and maintenance-free joints, providing long-term operational safety and efficiency in both high- and low-temperature service conditions.
