Heer Fittings, located in Delhi, India, has made a name for itself as a leading manufacturer and supplier of Stainless Steel 310H Pipe Fittings. These fittings are celebrated for their outstanding performance in high-temperature and corrosive settings. With a strong focus on quality and innovation, Heer Fittings provides a comprehensive selection of pipe fittings, including elbows, tees, reducers, and caps, all made from top-notch SS 310H. They adhere to international standards like ASTM A403, which guarantees their reliability and durability. Heer Fittings caters to essential industries such as petrochemicals, power plants, and refineries, ensuring consistent quality and timely delivery both domestically and internationally.
| Dimensions | ASME B16.28, MSS-SP-43, ASME/ANSI B16.9, BS4504, BS10, BS4504, BS1560, |
|---|---|
| Thickness | SCH10, SCH 80, SCH 100, SCH20, SCH30, STD SCH40, SCH 160, XXS, SCH60, XS, SCH 120, SCH 140, available with NACE MR 01-75 |
| Type | DN15-DN1200 |
| Connection | Welding |
| Bending Radius | R=2D, 3D, 5D, 6D, 8D, 1D, 10D or Custom |
| Manufacturing process | Press, Forge, Push, Cast, etc. |

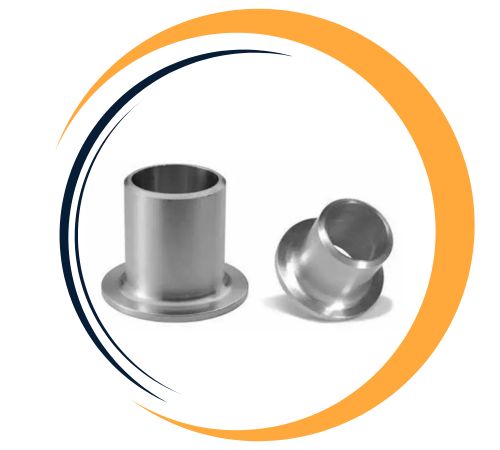

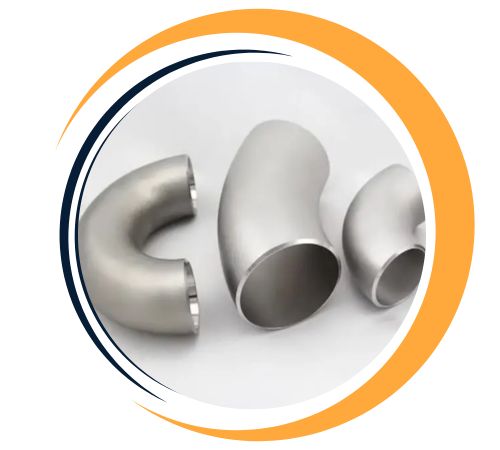

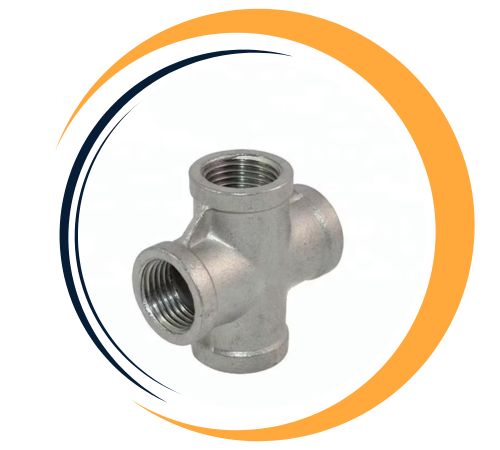

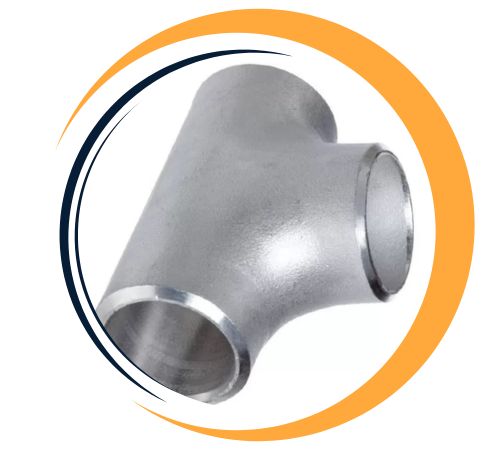

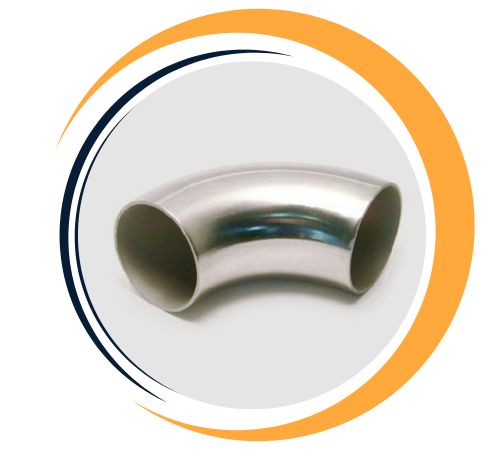

| Specialized manufacturer of | Tees, Crosses, Reducers, 90º Elbows, Stub End, Pipe Bend, 45º Elbows, Pipe Cap |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | |
| 310H | min. | 0.04 | – | – | – | – | 24.0 | – | 19.0 | – |
| max. | 0.10 | 2.0 | 1.0 | 0.045 | 0.030 | 26.0 | 21.0 | – | ||
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness | |
| Rockwell B (HR B) max | Brinell (HB) max | ||||
| 310H | 515 | 205 | 40 | 95 | 217 |
Heer Fittings one of the largest suppliers of Stainless Steel 310H Pipe Fittings in Delhi, India. We specialize in providing a wide range of high-quality, durable fittings for various industrial applications. Our inventory includes elbows, tees, reducers, couplings, and other essential fittings designed to offer exceptional corrosion resistance and strength. Stainless Steel 310H is known for its cost-effectiveness and excellent mechanical properties, making it ideal for industries such as construction, chemical processing, and food processing. With a commitment to customer satisfaction, timely delivery, and competitive pricing, we are the trusted choice for Stainless Steel 310H Pipe Fittings in the India.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Stainless Steel 310H Pipe Fittings from Heer Fittings offer exceptional corrosion resistance, especially in seawater and harsh environments. They are known for their high strength, durability, and resistance to pitting and crevice corrosion, ensuring long-lasting performance. We provide precise manufacturing, quality control, and reliable service for diverse industrial applications.
| Grade | UNS No | Old British | Euronorm | Swedish SS | Japanese JIS | ||
| BS | En | No | Name | ||||
| 310H | S31009 | – | X5CrNi18-10 | 2332 | SUS 310H | ||
Stainless Steel 310H Pipe Fittings offer exceptional heat resistance, making them ideal for high-temperature applications up to 1100°C. The higher carbon content enhances creep resistance and improves mechanical strength at elevated temperatures. These fittings provide excellent oxidation and corrosion resistance, especially in sulfurous and acidic environments. Stainless Steel 310H fittings maintain structural integrity in extreme conditions and offer superior durability under high-pressure and thermal cycling environments. They also exhibit good weldability and ease of fabrication, making them a reliable choice for industries like power generation, chemical processing, and petrochemical.
| Nominal PipeSize | Outside Diameter | 90° Elbows | 45° Elbows | 180° Returns | ||||
|---|---|---|---|---|---|---|---|---|
| (inches) | – | Long Radius | Short Radius | Long Radius | Long Radius | |||
| (mm) | (inches) | Center to Face (inches) | Center to Face (inches) | Center to Face (inches) | Radius (inches) | Center to Center (inches) | Back to face (inches) | |
| 1/2 | 21.3 | 0.840 | 1 1/2 | – | 5/8 | 2 | 1 7/8 | |
| 3/4 | 26.7 | 1.050 | 1 1/8 | 7/16 | 2 1/4 | 1 11/16 | ||
| 1 | 33.4 | 1.315 | 1 1/2 | 1 | 7/8 | 3 | 2 3/16 | |
| 1 1/4 | 42.2 | 1.660 | 1 7/8 | 1 1/4 | 1 | 3 3/4 | 2 3/4 | |
| 1 1/2 | 48.3 | 1.900 | 2 1/4 | 1 1/2 | 1 1/8 | 3 | 4 1/2 | 3 1/4 |
| 2 | 60.3 | 2.375 | 3 | 2 | 1 3/8 | 4 | 6 | 4 3/16 |
| 2 1/2 | 73.0 | 2.875 | 3 3/4 | 2 1/2 | 1 3/4 | 5 | 7 1/2 | 5 3/16 |
| 3 | 88.9 | 3.500 | 4 1/2 | 3 | 2 | 6 | 9 | 6 1/4 |
| 3 1/2 | 101.6 | 4.000 | 5 1/4 | 3 1/2 | 2 1/4 | 7 | 10 1/2 | 7 1/4 |
| 4 | 114.3 | 4.500 | 6 | 4 | 2 1/2 | 8 | 12 | 8 1/4 |
| 5 | 141.3 | 5.563 | 7 1/2 | 5 | 3 1/8 | 10 | 15 | 10 5/16 |
| 6 | 168.3 | 6.625 | 9 | 6 | 3 3/4 | 12 | 18 | 12 5/16 |
| 8 | 219.1 | 8.625 | 12 | 8 | 5 | 12 | 24 | 16 5/16 |
| 10 | 273.1 | 10.750 | 15 | 10 | 6 1/4 | 15 | 30 | 20 3/8 |
| 12 | 323.9 | 12.750 | 18 | 12 | 7 1/2 | 18 | 36 | 24 3/8 |
Yes, custom sizes are available for Stainless Steel 310H Pipe Fittings to meet specific requirements. We offer tailored solutions to ensure precise fit and performance for various applications. For more information, please contact us at sales@heerfittings.com.
| NPS (inch) | Pipe Sch. | Wall Thk. (in) | OD (inch) | Temperature | ||||
|---|---|---|---|---|---|---|---|---|
| 100 | 200 | 300 | 400 | 500 | ||||
| Allowable Stress (Pressure Rating) | ||||||||
| 16700 | 16700 | 16700 | 15500 | 14400 | ||||
| 1″ | 40 | 0.133 | 1.315 | 2205 | 2205 | 2205 | 2047 | 1902 |
| 80 | 0.179 | 1.315 | 3061 | 3061 | 3061 | 2841 | 2640 | |
| 160 | 0.250 | 1.315 | 4493 | 4493 | 4493 | 4170 | 3874 | |
| 1 1/2″ | 40 | 0.145 | 1.900 | 1629 | 1629 | 1629 | 1512 | 1404 |
| 80 | 0.200 | 1.900 | 2303 | 2303 | 2303 | 2138 | 1986 | |
| 160 | 0.281 | 1.900 | 3362 | 3362 | 3362 | 3120 | 2899 | |
| 2″ | 40 | 0.154 | 2.375 | 1371 | 1371 | 1371 | 1272 | 1182 |
| 80 | 0.218 | 2.375 | 1985 | 1985 | 1985 | 1843 | 1712 | |
| 160 | 0.344 | 2.375 | 3283 | 3283 | 3283 | 3047 | 2831 | |
| 3″ | 40 | 0.216 | 3.500 | 1301 | 1301 | 1301 | 1208 | 1122 |
| 80 | 0.300 | 3.500 | 1844 | 1844 | 1844 | 1712 | 1590 | |
| 160 | 0.438 | 3.500 | 2787 | 2787 | 2787 | 2587 | 2403 | |
| 4″ | 40 | 0.237 | 4.500 | 1102 | 1102 | 1102 | 1023 | 950 |
| 80 | 0.337 | 4.500 | 1596 | 1596 | 1596 | 1482 | 1377 | |
| 160 | 0.531 | 4.500 | 2611 | 2611 | 2611 | 2424 | 2552 | |
| 5″ | 40 | 0.258 | 5.563 | 965 | 965 | 965 | 896 | 832 |
| 80 | 0.375 | 5.563 | 1428 | 1428 | 1428 | 1325 | 1231 | |
| 160 | 0.625 | 5.563 | 2474 | 2474 | 2474 | 2296 | 2133 | |
| 6″ | 40 | 0.280 | 6.625 | 877 | 877 | 877 | 814 | 756 |
| 80 | 0.432 | 6.625 | 1379 | 1379 | 1379 | 1280 | 1189 | |
| 160 | 0.719 | 6.625 | 2382 | 2382 | 2382 | 2211 | 2054 | |
| 8″ | 40 | 0.322 | 8.625 | 771 | 771 | 771 | 716 | 665 |
| 80 | 0.500 | 8.625 | 1218 | 1218 | 1218 | 1131 | 1050 | |
| 160 | 0.906 | 8.625 | 2298 | 2298 | 2298 | 2133 | 1982 | |
| 10″ | 40 | 0.365 | 10.750 | 699 | 699 | 699 | 649 | 603 |
| 80 | 0.594 | 10.750 | 1159 | 1159 | 1159 | 1075 | 999 | |
| 160 | 1.125 | 10.750 | 2289 | 2289 | 2289 | 2124 | 1974 | |
These Stainless Steel 310H Pipe Fittings find extensive use in high-temperature applications across a variety of sectors, including power generation, petrochemical processing, heat treatment, and furnace manufacturing. They are perfect for boilers, superheaters, heat exchangers, and exhaust systems where heat and oxidation resistance is crucial. Their sturdy design and ability to withstand thermal stress make them dependable components for piping systems that face fluctuating temperatures and corrosive gases. SS 310H fittings guarantee leak-proof, durable connections that require minimal maintenance, even in challenging operating environments.
Get in touch with one of our Technical Sales Representatives to request a quote or get answers to any questions you may have.
