Heer Fittings is a trustworthy manufacturer and dealer of Stainless Steel 321 Pipe Fittings, established in Delhi, India. We offer top-notch fittings that are designed to withstand high-temperature conditions. SS 321 is titanium-stabilized austenitic stainless steel that exhibits superior resistance to intergranular corrosion following welding. We at Heer Fittings produce pipe fittings through modern methods and high-quality raw materials, making them strong, durable, and accurate. We cater to a broad spectrum of industries such as petrochemical, aerospace, chemical processing, and power generation and provide reliable and efficient piping solutions in domestic and global markets.
| Specifications | ASTM A403 / ASME SA403 |
| Dimensions | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43 |
| Size Range | 15 NB UP TO 1200 NB ; 1/8″ NB TO 48″ NB |
| Schedule | SCH 5S , 10S ,10, 20 , 40S , 40 , STD , 60 , 80S , 80 , XS , 100 , 120 , 140 , 160 & XXS. |
| Type | Seamless & 100% X-Ray Welded, Fabricated |
Stainless Steel 321 Pipe Fittings consist mainly of chromium (17–19%), nickel (9–12%), and titanium (min. five times the carbon content), and iron and trace elements. The presence of titanium stabilizes the material against the formation of chromium carbide and is thus suitable for high-temperature use. SS 321 has a tensile strength of about 515 MPa, yield strength of 205 MPa, and elongation of about 40%. These fittings are extremely strong mechanically, resistant to high temperatures, and have good oxidation resistance. SS 321 is most suitable for use where prolonged exposure to higher temperatures can cause sensitization in the unstabilized grades.
| Grade | C | Mn | Si | P | S | Cr | N | Ni | Ti |
| SS 321 | 0.08 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 17.00 – 19.00 | 0.10 max | 9.00 – 12.00 | 5(C+N) – 0.70 max |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1457 °C (2650 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
Heer Fittings one of the largest suppliers of Stainless Steel 321 Pipe Fittings in Delhi, India. We specialize in providing a wide range of high-quality, durable fittings for various industrial applications. Our inventory includes elbows, tees, reducers, couplings, and other essential fittings designed to offer exceptional corrosion resistance and strength. Stainless Steel 321 is known for its cost-effectiveness and excellent mechanical properties, making it ideal for industries such as construction, chemical processing, and food processing. With a commitment to customer satisfaction, timely delivery, and competitive pricing, we are the trusted choice for Stainless Steel 321 Pipe Fittings in the India.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Stainless Steel 321 Pipe Fittings from Heer Fittings offer exceptional corrosion resistance, especially in seawater and harsh environments. They are known for their high strength, durability, and resistance to pitting and crevice corrosion, ensuring long-lasting performance. We provide precise manufacturing, quality control, and reliable service for diverse industrial applications.
| STANDARD | WERKSTOFF NR. | UNS | JIS | EN |
| SS 321 | 1.4541 | S32100 | SUS 321 | X6CrNiTi18-10 |
| Grade | Specific Heat 0-100°C (J/kg.K) | Mean Co-eff of Thermal Expansion (µm/m/°C) | Elastic Modulus (GPa) | Thermal Conductivity (W/m.K) | Density (kg/m3) | Elec Resistivity (nΩ.m) | |||
| 0-315°C | 0-100°C | 0-538°C | At 500°C | At 100°C | |||||
| Stainless Steel 321 | 500 | 17.2 | 16.6 | 18.6 | 193 | 22.2 | 16.1 | 8027 | 720 |
Yes, custom sizes are available for Stainless Steel 321 Pipe Fittings to meet specific requirements. We offer tailored solutions to ensure precise fit and performance for various applications. For more information, please contact us at sales@heerfittings.com.
| Nominal Pipe Size | Inch | 3/4 | 1 1/4 | 2 | 3 | 4 | 6 | 10 | 12 | |
|---|---|---|---|---|---|---|---|---|---|---|
| OD. | Inch | 1.05 | 1.66 | 2.375 | 3.5 | 4.5 | 6.625 | 10.75 | 12.75 | |
| Millimeter | 26.7 | 42.2 | 60.3 | 88.9 | 114.3 | 168.3 | 273.1 | 323.9 | ||

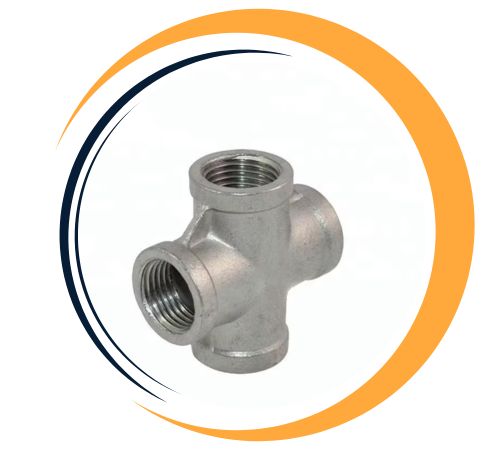

| Straight Crosses | Center to End | Inch | 1 7/8 | 2 1/2 | 3 3/8 | 4 1/8 | 5 5/8 | 8 1/2 | 10 | |
| Caps | L. | Inch | 1 | 1 1/2 | 1 1/2 | 2 | 2 1/2 | 3 1/2 | 5 | 6 |

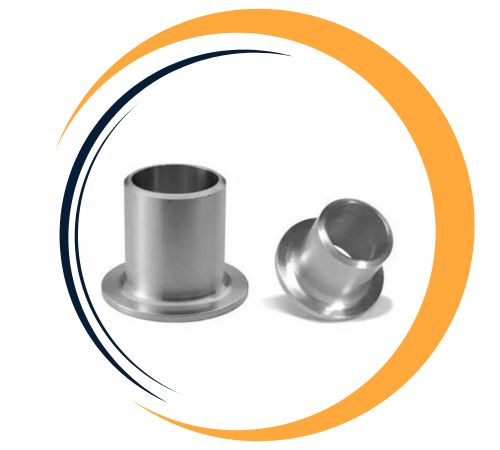

| Stub Ends | Long L. | Inch | 3 | 4 | 6 | 6 | 6 | 8 | 10 | 10 |
| Lap Diameter | Inch | 1 11/16 | 2 1/2 | 3 5/8 | 5 | 6 3/16 | 8 1/2 | 12 3/4 | 15 | |
| Short L. | Inch | 2 | 2 | 2 1/2 | 2 1/2 | 3 | 3 1/2 | 5 | 6 | |

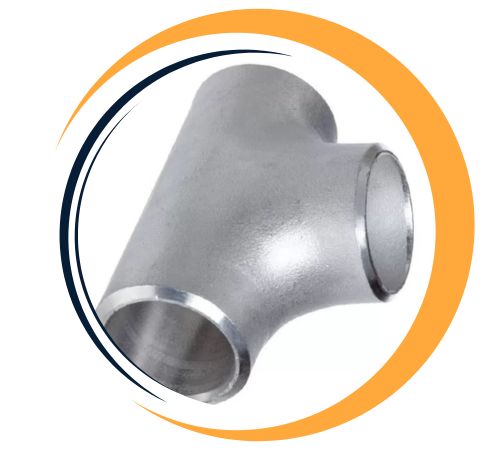

| Straight Tees | Center to End | Inch | 1 1/8 | 1 7/8 | 2 1/2 | 3 3/8 | 4 1/8 | 5 5/8 | 8 1/2 | 10 |

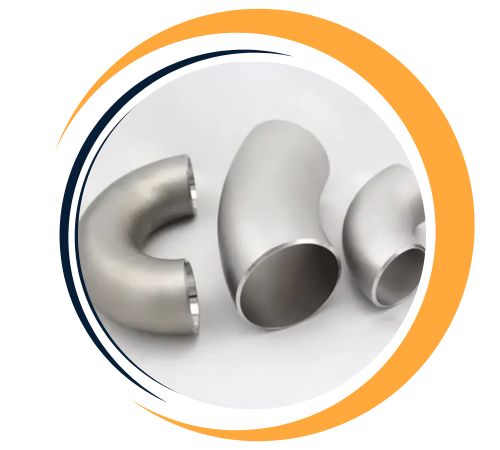

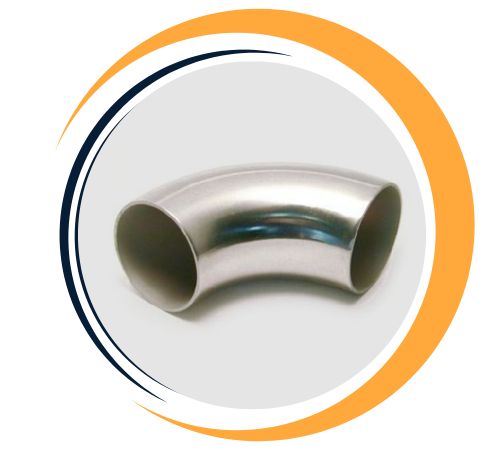

| Nominal Pipe Size | Outside Diameter | 90° Elbows | 45° Elbows | 180° Returns | ||||
|---|---|---|---|---|---|---|---|---|
(inches) | Long Radius | Short Radius | Long Radius | Long Radius | ||||
(mm) | (inches) | Center to Face (inches) | Center to Face (inches) | Center to Face (inches) | Radius (inches) | Center to Center (inches) | Back to face (inches) | |
1/2 | 21.3 | 0.840 | 1 1/2 | – | 5/8 | 2 | 1 7/8 | |
3/4 | 26.7 | 1.050 | 1 1/8 | – | 7/16 | 2 1/4 | 1 11/16 | |
1 | 33.4 | 1.315 | 1 1/2 | 1 | 7/8 | 3 | 2 3/16 | |
1 1/4 | 42.2 | 1.660 | 1 7/8 | 1 1/4 | 1 | 3 3/4 | 2 3/4 | |
1 1/2 | 48.3 | 1.900 | 2 1/4 | 1 1/2 | 1 1/8 | 3 | 4 1/2 | 3 1/4 |
2 | 60.3 | 2.375 | 3 | 2 | 1 3/8 | 4 | 6 | 4 3/16 |
2 1/2 | 73.0 | 2.875 | 3 3/4 | 2 1/2 | 1 3/4 | 5 | 7 1/2 | 5 3/16 |
3 | 88.9 | 3.500 | 4 1/2 | 3 | 2 | 6 | 9 | 6 1/4 |
3 1/2 | 101.6 | 4.000 | 5 1/4 | 3 1/2 | 2 1/4 | 7 | 10 1/2 | 7 1/4 |
4 | 114.3 | 4.500 | 6 | 4 | 2 1/2 | 8 | 12 | 8 1/4 |
5 | 141.3 | 5.563 | 7 1/2 | 5 | 3 1/8 | 10 | 15 | 10 5/16 |
6 | 168.3 | 6.625 | 9 | 6 | 3 3/4 | 12 | 18 | 12 5/16 |
8 | 219.1 | 8.625 | 12 | 8 | 5 | 12 | 24 | 16 5/16 |
10 | 273.1 | 10.750 | 15 | 10 | 6 1/4 | 15 | 30 | 20 3/8 |
12 | 323.9 | 12.750 | 18 | 12 | 7 1/2 | 18 | 36 | 24 3/8 |
Stainless Steel 321 Pipe Fittings find extensive application in high-temperature and corrosive-resistant industries. Common uses are found in exhaust systems, heat exchangers, furnace components, and boiler parts in chemical, aerospace, and thermal processing industries. They find perfect application in piping systems operating between 800°F and 1500°F, where carbide precipitation and intergranular corrosion are issues. SS321 finds its applications in refinery hardware, pressure vessels, and high-temperature steam lines. It is employed where both thermal stability and corrosion resistance are required under dynamic service conditions. Its weldability and oxidation resistance make it a viable solution for such applications.
