Heer Fittings is a prominent manufacturer and supplier of Stainless Steel 309S Pipe Fittings, located in Delhi, India. We provide an array of top-quality fittings designed to work effectively in high-temperature and slightly corrosive conditions. SS 309S is a low-carbon form of 309 stainless steel that is developed to enhance weldability and reduce carbide precipitation when welding. We make our fittings using precise methods and test them to international standards. Heer Fittings provides heat treatment, power generation, petrochemical, and exhaust system industries with cost-effective and durable SS 309S piping fittings in Indian and overseas markets.
| Product | Stainless Steel 309S Pipe Fittings |
| Equivalents | (UNS S30908, 1.4833) |
| Standard | ASTM A403 / ASME SA403 |
| Items | Pipe Fittings |
| Size | Seamless Elbow ( 1/2″～24″), ERW / Welded / Fabricated Elbow (1/2″～48″) |
| Dimensions | ASME / ANSI – B 16.9, ASTM A403 – ASME SA403, ASME B16.9, ASME B16.25, ASME B16.28, MSS SP-43. |
| Schedule | Schedule 5S, 10S, 20S, S10, S20, S30, STD, 40S, S40, S60, XS, 80S, S80, S100, S120, S140, S160, XXS and etc. Custom Thickness |
| Fittings Type | Butt Weld, Screwed & Socket Weld, Flanges, Instrumentation |
| Other Fittings Type | Elbows, Tees, Reducers, Caps, Stub Ends, Flanges (ANSI, Table E, D and H), Nuts, Bolts, Screws, Threaded Bars, Seamless, Welded, Elbow, Tee, Cross, Concentric & Eccentric Reducer, Pipe End Caps, Stub Ends, Bends, Dairy Fittings, etc. |
| Specifications | ASTM, ASME, DIN, GOST, JIS |
| Certification | EN 10204 |
Stainless Steel 309S Fittings are made of chromium (22–24%), nickel (12–15%), and lesser carbon content (up to a maximum of 0.08%) with iron as the base. The lower carbon content improves resistance to sensitization and is also suitable for welded components. SS 309S has a tensile strength of approximately 520–550 MPa, yield strength of 205 MPa, and elongation of about 40%. SS 309S has good mechanical properties at high temperatures and superior oxidation resistance up to 1000°C (1832°F). SS 309S is appropriate for moderately corrosive and thermal cycling environments, and it provides structural stability and thermal fatigue resistance.
| ELEMENT | SS 309S |
|---|---|
| NI | 12.0 – 15.0 |
| C | 0.08 max |
| MN | 2.0 max |
| P | 0.045 max |
| S | 0.030 max |
| SI | 1.0 max |
| CR | 22.0 – 24.0 |
| MO | 0.75 max |
| 309 | 309S | |||
|---|---|---|---|---|
| Typical | Minimum | Typical | Minimum | |
| Tensile Strength MPa | 560 | 515 | 540 | 515 |
| Proof Stress(0.2% Offset) MPa | 285 | 205 | 280 | 205 |
| Elongation (Percent in 50mm) | 54 | 40 | 54 | 40 |
| Hardness (Brinell) | 164 | – | 159 | – |
| Endurance (fatigue) limit, MPa | 260 | – | 260 | – |

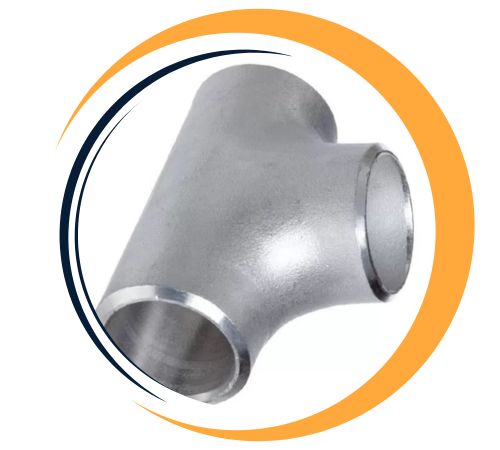

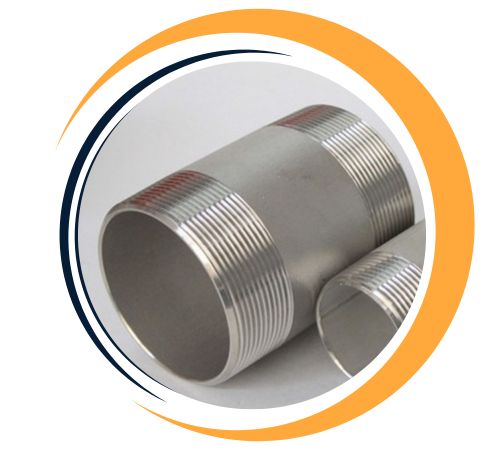

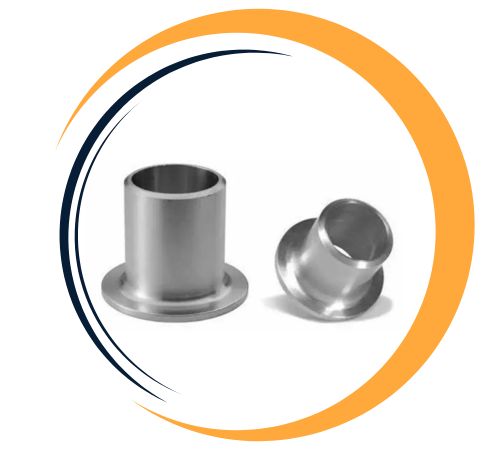

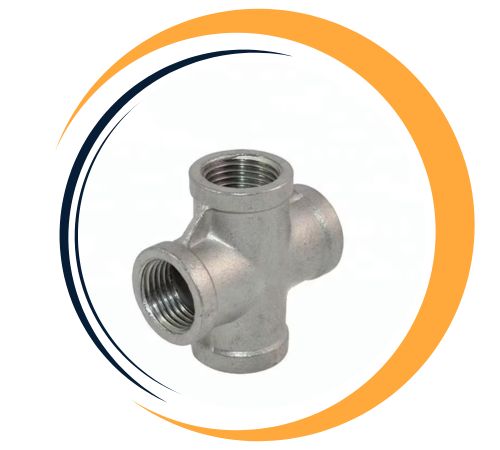

Heer Fittings one of the largest suppliers of Stainless Steel 309S Pipe Fittings in Delhi, India. We specialize in providing a wide range of high-quality, durable fittings for various industrial applications. Our inventory includes elbows, tees, reducers, couplings, and other essential fittings designed to offer exceptional corrosion resistance and strength. Stainless Steel 309S is known for its cost-effectiveness and excellent mechanical properties, making it ideal for industries such as construction, chemical processing, and food processing. With a commitment to customer satisfaction, timely delivery, and competitive pricing, we are the trusted choice for Stainless Steel 309S Pipe Fittings in the India.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Stainless Steel 309S Pipe Fittings from Heer Fittings offer exceptional corrosion resistance, especially in seawater and harsh environments. They are known for their high strength, durability, and resistance to pitting and crevice corrosion, ensuring long-lasting performance. We provide precise manufacturing, quality control, and reliable service for diverse industrial applications.

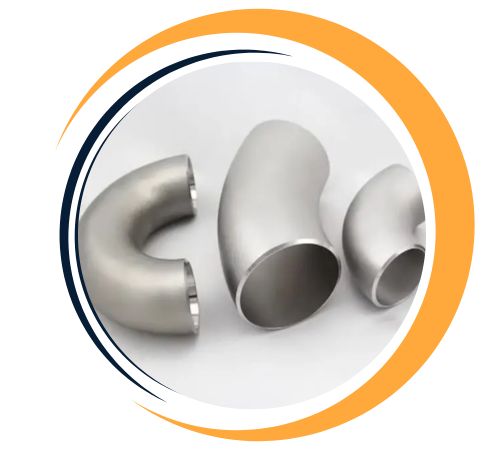

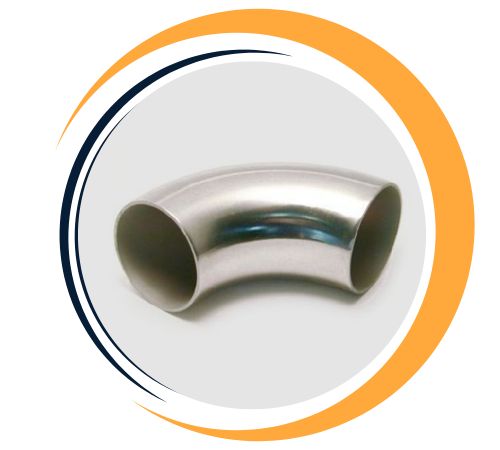

| STANDARD | UNS | WERKSTOFF NR. |
|---|---|---|
| SS 309S | S30908 | 1.4828 |
| Nominal PipeSize | Outside Diameter | 90° Elbows | 45° Elbows | 180° Returns | ||||
|---|---|---|---|---|---|---|---|---|
| (inches) | – | Long Radius | Short Radius | Long Radius | Long Radius | |||
| (mm) | (inches) | Center to Face (inches) | Center to Face (inches) | Center to Face (inches) | Radius (inches) | Center to Center (inches) | Back to face (inches) | |
| 1/2 | 21.3 | 0.840 | 1 1/2 | – | 5/8 | 2 | 1 7/8 | |
| 3/4 | 26.7 | 1.050 | 1 1/8 | 7/16 | 2 1/4 | 1 11/16 | ||
| 1 | 33.4 | 1.315 | 1 1/2 | 1 | 7/8 | 3 | 2 3/16 | |
| 1 1/4 | 42.2 | 1.660 | 1 7/8 | 1 1/4 | 1 | 3 3/4 | 2 3/4 | |
| 1 1/2 | 48.3 | 1.900 | 2 1/4 | 1 1/2 | 1 1/8 | 3 | 4 1/2 | 3 1/4 |
| 2 | 60.3 | 2.375 | 3 | 2 | 1 3/8 | 4 | 6 | 4 3/16 |
| 2 1/2 | 73.0 | 2.875 | 3 3/4 | 2 1/2 | 1 3/4 | 5 | 7 1/2 | 5 3/16 |
| 3 | 88.9 | 3.500 | 4 1/2 | 3 | 2 | 6 | 9 | 6 1/4 |
| 3 1/2 | 101.6 | 4.000 | 5 1/4 | 3 1/2 | 2 1/4 | 7 | 10 1/2 | 7 1/4 |
| 4 | 114.3 | 4.500 | 6 | 4 | 2 1/2 | 8 | 12 | 8 1/4 |
| 5 | 141.3 | 5.563 | 7 1/2 | 5 | 3 1/8 | 10 | 15 | 10 5/16 |
| 6 | 168.3 | 6.625 | 9 | 6 | 3 3/4 | 12 | 18 | 12 5/16 |
| 8 | 219.1 | 8.625 | 12 | 8 | 5 | 12 | 24 | 16 5/16 |
| 10 | 273.1 | 10.750 | 15 | 10 | 6 1/4 | 15 | 30 | 20 3/8 |
| 12 | 323.9 | 12.750 | 18 | 12 | 7 1/2 | 18 | 36 | 24 3/8 |
Yes, custom sizes are available for Stainless Steel 309S Pipe Fittings to meet specific requirements. We offer tailored solutions to ensure precise fit and performance for various applications. For more information, please contact us at sales@heerfittings.com.
| NPS (inch) | Pipe Sch. | Wall Thk. (in) | OD (inch) | Temperature | ||||
|---|---|---|---|---|---|---|---|---|
| 100 | 200 | 300 | 400 | 500 | ||||
| Allowable Stress (Pressure Rating) | ||||||||
| 16700 | 16700 | 16700 | 15500 | 14400 | ||||
| 1″ | 40 | 0.133 | 1.315 | 2205 | 2205 | 2205 | 2047 | 1902 |
| 80 | 0.179 | 1.315 | 3061 | 3061 | 3061 | 2841 | 2640 | |
| 160 | 0.250 | 1.315 | 4493 | 4493 | 4493 | 4170 | 3874 | |
| 1 1/2″ | 40 | 0.145 | 1.900 | 1629 | 1629 | 1629 | 1512 | 1404 |
| 80 | 0.200 | 1.900 | 2303 | 2303 | 2303 | 2138 | 1986 | |
| 160 | 0.281 | 1.900 | 3362 | 3362 | 3362 | 3120 | 2899 | |
| 2″ | 40 | 0.154 | 2.375 | 1371 | 1371 | 1371 | 1272 | 1182 |
| 80 | 0.218 | 2.375 | 1985 | 1985 | 1985 | 1843 | 1712 | |
| 160 | 0.344 | 2.375 | 3283 | 3283 | 3283 | 3047 | 2831 | |
| 3″ | 40 | 0.216 | 3.500 | 1301 | 1301 | 1301 | 1208 | 1122 |
| 80 | 0.300 | 3.500 | 1844 | 1844 | 1844 | 1712 | 1590 | |
| 160 | 0.438 | 3.500 | 2787 | 2787 | 2787 | 2587 | 2403 | |
| 4″ | 40 | 0.237 | 4.500 | 1102 | 1102 | 1102 | 1023 | 950 |
| 80 | 0.337 | 4.500 | 1596 | 1596 | 1596 | 1482 | 1377 | |
| 160 | 0.531 | 4.500 | 2611 | 2611 | 2611 | 2424 | 2552 | |
| 5″ | 40 | 0.258 | 5.563 | 965 | 965 | 965 | 896 | 832 |
| 80 | 0.375 | 5.563 | 1428 | 1428 | 1428 | 1325 | 1231 | |
| 160 | 0.625 | 5.563 | 2474 | 2474 | 2474 | 2296 | 2133 | |
| 6″ | 40 | 0.280 | 6.625 | 877 | 877 | 877 | 814 | 756 |
| 80 | 0.432 | 6.625 | 1379 | 1379 | 1379 | 1280 | 1189 | |
| 160 | 0.719 | 6.625 | 2382 | 2382 | 2382 | 2211 | 2054 | |
| 8″ | 40 | 0.322 | 8.625 | 771 | 771 | 771 | 716 | 665 |
| 80 | 0.500 | 8.625 | 1218 | 1218 | 1218 | 1131 | 1050 | |
| 160 | 0.906 | 8.625 | 2298 | 2298 | 2298 | 2133 | 1982 | |
| 10″ | 40 | 0.365 | 10.750 | 699 | 699 | 699 | 649 | 603 |
| 80 | 0.594 | 10.750 | 1159 | 1159 | 1159 | 1075 | 999 | |
| 160 | 1.125 | 10.750 | 2289 | 2289 | 2289 | 2124 | 1974 | |
Stainless Steel 309S Pipe Fittings have broad application in industries involving high-temperature service and oxidation resistance. Applications range from heat exchangers, furnace parts, kilns, boilers, to exhaust ducting. They are also found in thermal processing equipment, refinery facilities, petrochemical plants, and power generation equipment. SS 309S is especially used for welded products exposed at high temperatures because of low carbon levels, which reduce carbide precipitation. Its high thermal resistance and integrity at changing temperatures render it appropriate for use in conditions where both corrosion and heat resistance are paramount to operational dependability.
Get in touch with one of our Technical Sales Representatives to request a quote or get answers to any questions you may have.
